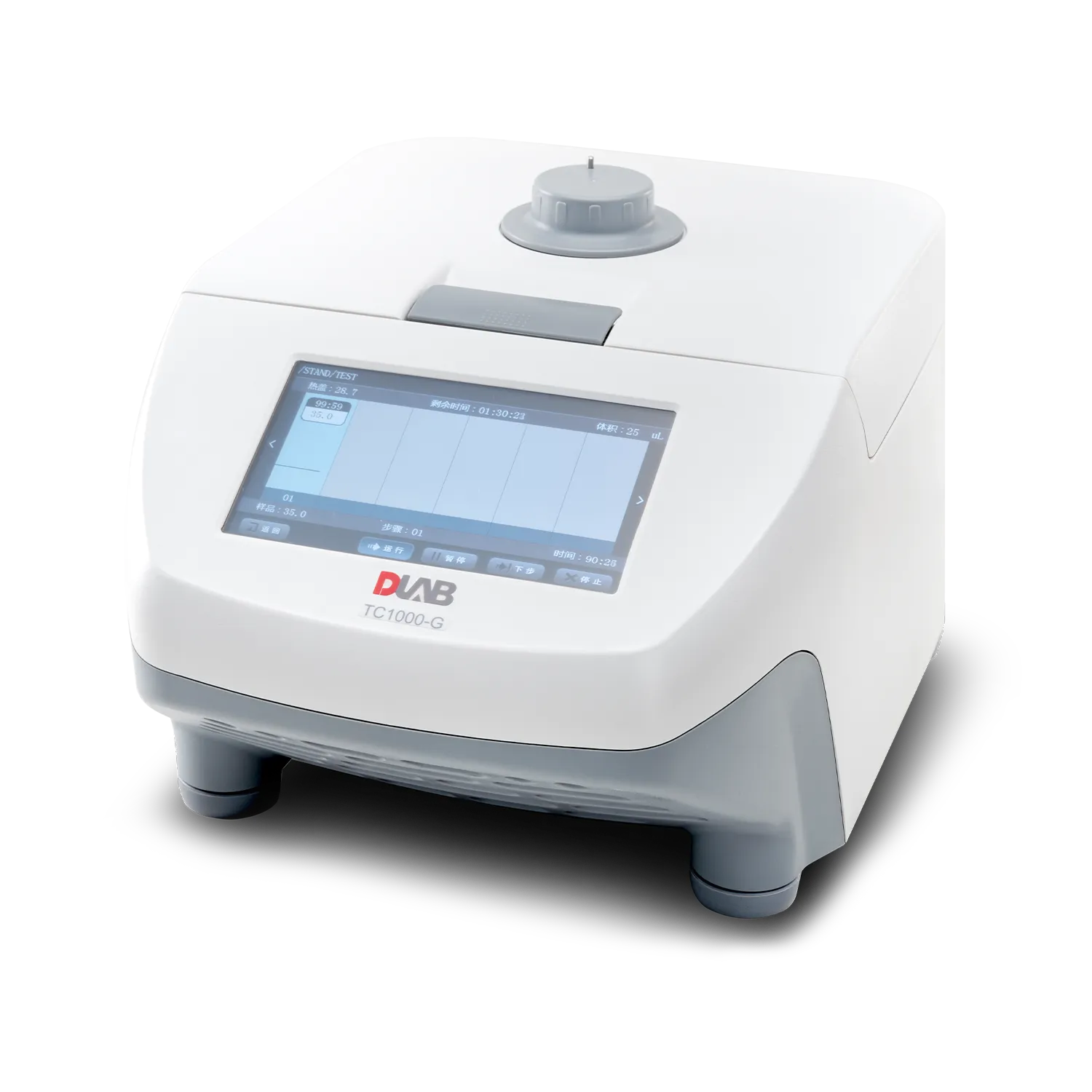

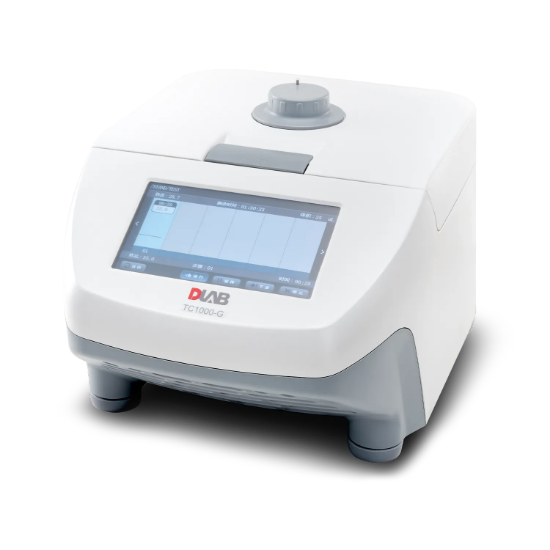

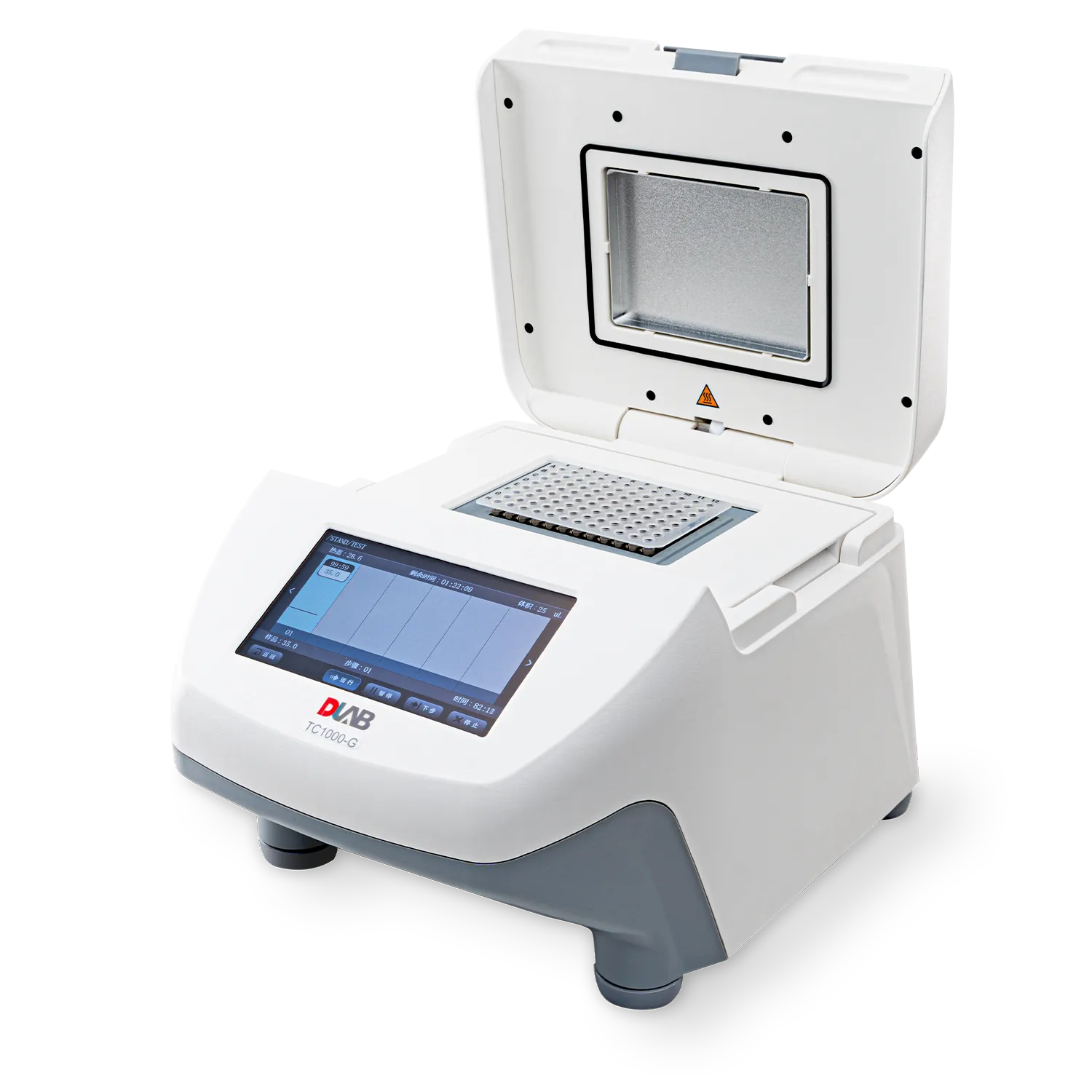

PCR Thermo Cycler, TC1000-G 5064102300

Gradient Thermocycler

SKU: 5064102300

Manufacturer: Dragon Lab

Pack Size: 1

TC1000-G Thermal Cycler Gradient

High performance Peltier and independent heating segments improving temperature control
Auxiliary heating mechanism diminishes the "edge effect" and enhance the temperature uniformity
Wide touchdown PCR temperature range (-9.9°C~+9.9°C) and Long PCR time range (-9min 59s~+9min 59s)
Gradient temperature setting optimizes temperature easily in the single run
Color touch screen with user friendly interface helps to edit programs easily
Wide options of consumables: common PCR tubes, 8-well PCR strips and 96-well PCR plates can be used
File customization, multi-file storage
Power failure protection function, automatic program recovery
Hot lid auto-off function: If module temperature is lower than 30 °C, the hot lid function will automatically turn off
Elegant design, excellent precision and accurate, reproducible results and precise PCR optimization
High performance with advanced thermal gradient technology, state-of-the-art electronics, precision peltier device and flexible user interface.
The TC1000G is an essential laboratory instrument for molecular biology with applications such as sequencing, gene cloning, gene expression,mutagensis, and it is also used in areas such as drug discovery, agriculture, food industry, etc.

PRODUCT PARAMETERS
Cat.No.	5064102300
Sample Capacity	96×0.2mL PCR tube \| 12×0.2mL PCR-8 strips \| 0.2mL 96 PCR
Heating Temperature Range	4-105℃
Lid Temperature Range	30-110℃
Temperature Display Accuracy	±0.1℃
Temperature Control Accuracy	±0.3℃ @55℃
Temperature uniformity	<0.3℃ @55℃
Max. Heating/Cooling Rate	5℃/Sec
Gradient Temperature Setting Range	30-99℃
Gradient Range	1-42℃，Turn off gradient on input 0
Adapter block material	Aluminum
Display	7" LCD 800x480
Input	Touch panel
User defined file system	Max.30 segments 99 cycles, and storage for over 200 files.
Power off protection	Yes
Voltage,Frequency	100-120V/200-240V,50/60Hz
Dimension[WxDxH]	280x370x250mm
Weight	11kg

Attribute name	Attribute value
Pack Size	1
