Download the brochure hereThe Purite Fusion is a self-contained water purification unit that delivers a flow of purified water to a consistent quality of 18MΩ.cm. It is ideal for the most demanding laboratory processes including life sciences, such as histology, cell and tissue culture, DNA sequencing and IVF.Common features of all our Select systems include:• Space-saving, dependable, bench top or wall mounted systems• RO Removes > 98% minerals and > 99% bacteria• Choice of production rates up to 48 l/hr• Optional external storage tanks up to 100 litres• RO Boost pump fitted as standard• Installation kit and all consumables included for first year’s operation• LCD colour touch screen panel• Visual and audible alarms included• Utilises carbon pre-treatment, RO and deionisation• USB port to download event data and upload software updates• Integral 20 litre storage as standard (excludes Neptune Ultimate)• Semi-automatic clean cycle. Additional features for the Select Fusion:• Dual water quality available 1-10MΩ.cm (Type-II) and 18.2MΩ.cm (Type-I) • Remote Dispense Pod (Optional) • Energy saving intelligent stand-by mode • Dispense rate of up to 2 litres/min• 0.2μm point of use bacterial filter • Water quality parameters, TOC, MΩ.cm, °C and flowrate displayed • Selectable manual and volumetric dispense feature • 5000m.wt cut off Ultrafiltration for endotoxin, RNase/DNase removal • Dual wavelength (185nm/254nm) UV irradiation • Integral TOC indicator• 20 litre integral storage tank for Type-II water. Purite Fusion | Unit Specification Unit specification160320Width (mm)440440Depth (mm)560560Height (mm)750750Maximum Shipping Weight (kg)*3641Maximum Working Weight (kg)*5159 Installation requirements160320PowerSingle Phase, 110-230V, +/- 10%, 50/60 HzFeed WaterPotablePotableMaximum TDS (ppm)10001000Minimum inlet pressure – psi (bar)30 (2.1)30 (2.1)Maximum inlet pressure – psi (bar)90 (6.2)90 (6.2)Feed water temperature1-35oC1-35oCProduct outputs @ 10ºC (l/hr)*14.430Product outputs @ 25ºC (l/hr)*2448 Purite Fusion | System / Treated Water SpecificationSystem specification Pure water storage20 litre storage tank as standard (External 50 & 100 litre tanks available)Display panelLCD – Colour touch screenPre-treatment cartridgeYesReverse osmosisYesDeionisation cartridgeYesInternal filtrationUltrafiltrationPoint of useUV / LEDUV lamp185nm / 254nmRecirculation pumpYesUltrapure polishing cartridgeYes Treated water specificationHigh Purity DispensePurified Water Storage TankInorganicsup to 18.2MΩ.cm> 1MΩ.cmpH1NeutralBacteria< 0.1cfu/ml–Organics – TOC (ppb)< 5< 50Particles0.005µm–Endotoxins< 0.001EU/ml–DNases< 4pg/µl–RNases< 0.01ng/ml–Dispense modesLatched – hold – volumetricDispense flow rateup to 2.0 l/min–1pH of stored water may decrease due to absorption of free carbon dioxide

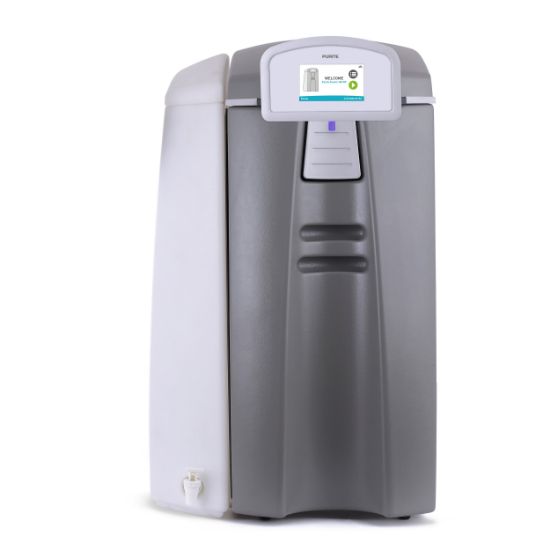

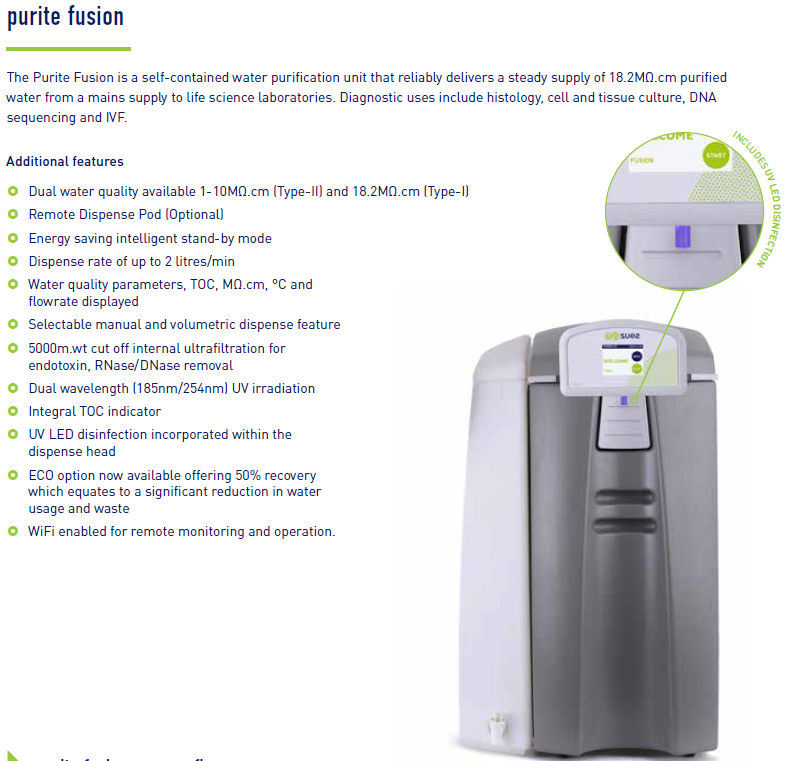

The Purite Fusion is a self-contained water purification unit that delivers a flow of purified water to a consistent quality of 18MΩ.cm. It is ideal for the most demanding laboratory processes including life sciences, such as histology, cell and tissue culture, DNA sequencing and IVF.
• Space-saving, dependable, bench top or wall mounted systems
• RO Removes > 98% minerals and > 99% bacteria
• Choice of production rates up to 48 l/hr
• Optional external storage tanks up to 100 litres
• RO Boost pump fitted as standard
• Installation kit and all consumables included for first year’s operation
• LCD colour touch screen panel
• Visual and audible alarms included

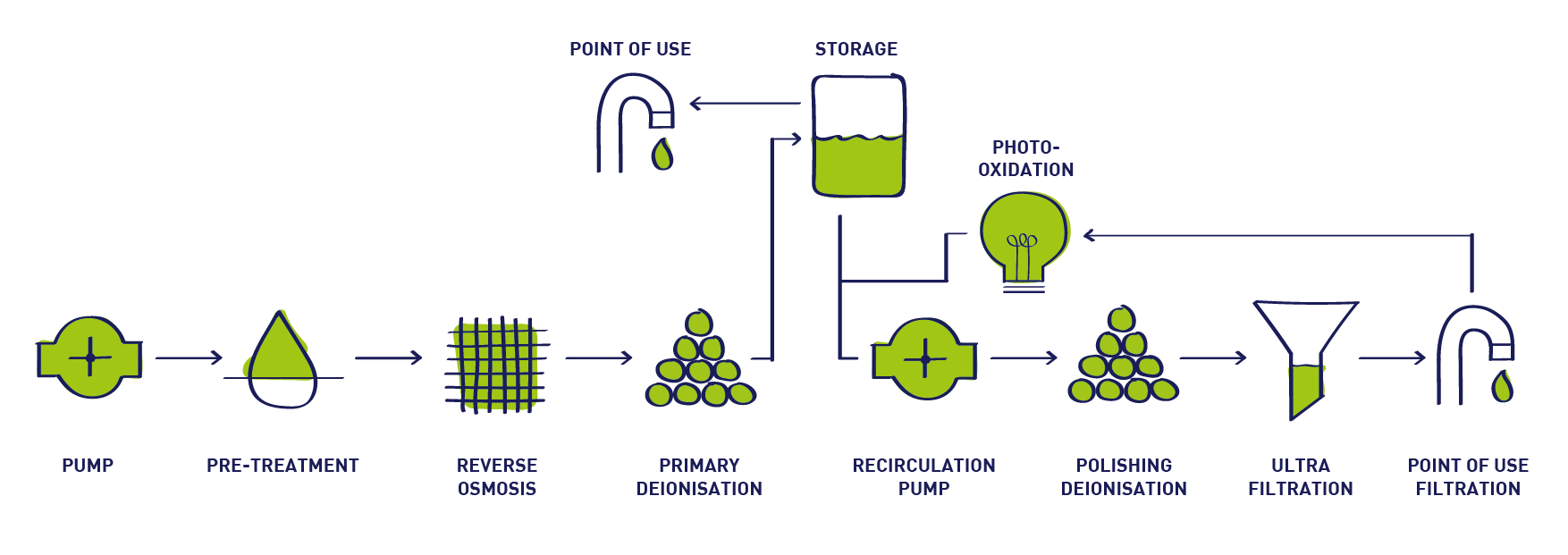

• Utilises carbon pre-treatment, RO and deionisation
• USB port to download event data and upload software updates
• Integral 20 litre storage as standard (excludes Neptune Ultimate)
• Semi-automatic clean cycle.
• Dual water quality available 1-10MΩ.cm (Type-II) and 18.2MΩ.cm (Type-I)
• Remote Dispense Pod (Optional)
• Energy saving intelligent stand-by mode
• Dispense rate of up to 2 litres/min
• 0.2μm point of use bacterial filter
• Water quality parameters, TOC, MΩ.cm, °C and flowrate displayed
• Selectable manual and volumetric dispense feature
• 5000m.wt cut off Ultrafiltration for endotoxin, RNase/DNase removal
• Dual wavelength (185nm/254nm) UV irradiation
• Integral TOC indicator
• 20 litre integral storage tank for Type-II water.
48
1pH of stored water may decrease due to absorption of free carbon dioxide
