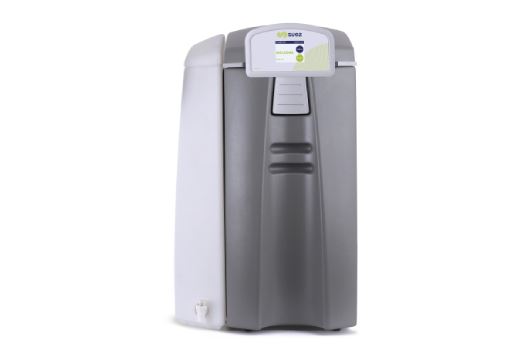

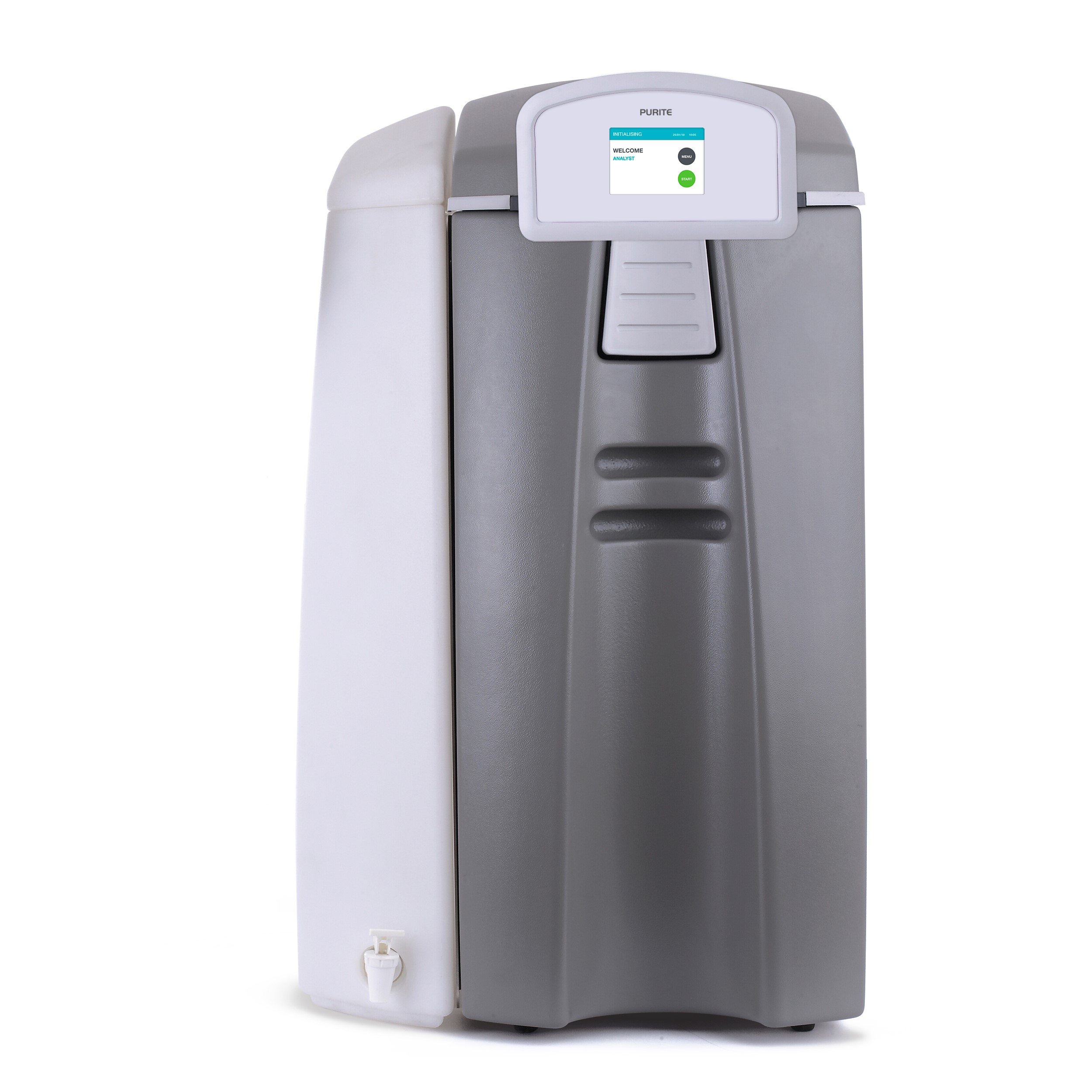

The Purite Analyst is a compact water purification unit, using integrated carbon pre-treatment, reverse osmosis and deionisation technologies to produce a flow of water purified to at least 1MΩ.cm.
An internal 20l storage tank is standard, with options including external tanks, wi-fi connectivity, remote monitoring and control panels with colour touchscreen, plus ECO versions that allow up to 50% of the waste water stream to be recovered.
Common features of all our Select systems:
Space-saving, dependable, bench top or wall mounted systems
RO Removes > 98% minerals and > 99% bacteria
Choice of production rates up to 48 l/hr
Optional external storage tanks up to 100 litres
RO Boost pump fitted as standard
Installation kit and all consumables included for first year's operation
LCD colour touch screen panel
Visual and audible alarms included

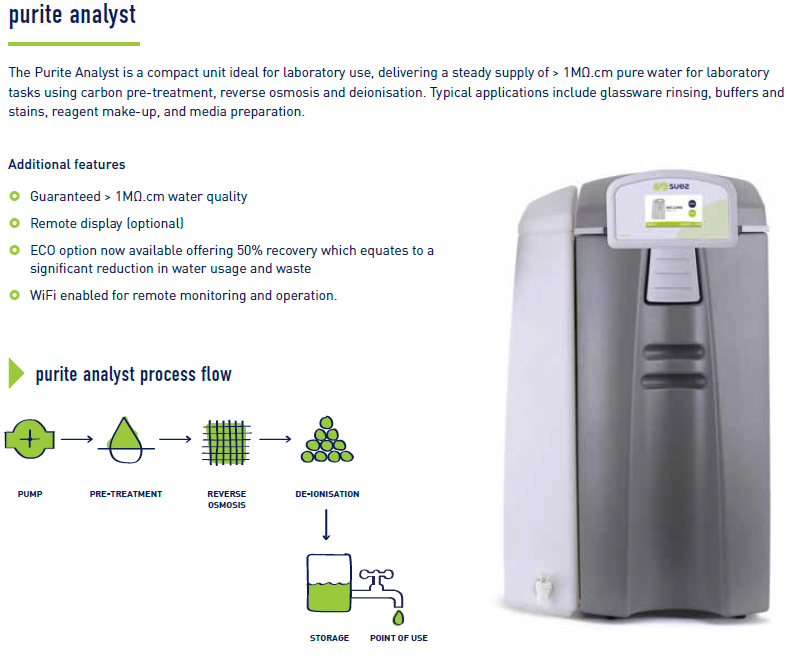

Utilises carbon pre-treatment, RO and deionisation
USB port to download event data and upload software updates
Integral 20 litre storage as standard (excludes Neptune Ultimate)
Semi-automatic clean cycle
Additional features for the Select Analyst:
Guaranteed > 1MΩ.cm water quality
Remote display (optional)
ECO option now available offering 50% recovery which equates to a significant reduction in water usage and waste
WiFi connection
Purite Analyst | Unit Specification
Unit specification | 160 | 320 |
---|
Width (mm) | 440 | 440 |
Depth (mm) | 560 | 560 |
Height (mm) | 750 | 750 |
Maximum Shipping Weight (kg)* | 28 | 33 |
Maximum Working Weight (kg)* | 43 | 52 |
Installation requirements | 160 | 320 |
---|
Power | Single Phase, 110-230V, +/- 10%, 50/60 Hz | Single Phase, 110-230V, +/- 10%, 50/60 Hz |
Feed Water | Potable | Potable |
Maximum TDS (ppm) | 1000 | 1000 |
Minimum inlet pressure – psi (bar) | 30 (2.1) | 30 (2.1) |
Maximum inlet pressure – psi (bar) | 90 (6.2) | 90 (6.2) |
Feed water temperature | 1-35oC | 1-35oC |
Product outputs @ 10ºC (l/hr)* | 14.4 | 30 |
Product outputs @ 25ºC (l/hr)* | 24 | 48 |
Purite Analyst | System / Treated Water Specification
System specification | Analyst |
---|
Pure water storage | 20 litre storage tank as standard (External 50 & 100 litre tanks available) |
Display panel | LCD – Colour touch screen |
Pre-treatment cartridge | Yes |
Reverse osmosis | Yes |
Deionisation cartridge | Yes |
Treated water specification | Analyst |
---|
Inorganics | > 1MΩ.cm |
pH1 | Neutral |
Bacteria | > 99% rejection2 |
Organics – TOC (ppb) | < 50 |
Dispense modes | Bib tap on storage tank |
1pH of stored water may decrease due to absorption of free carbon dioxide
