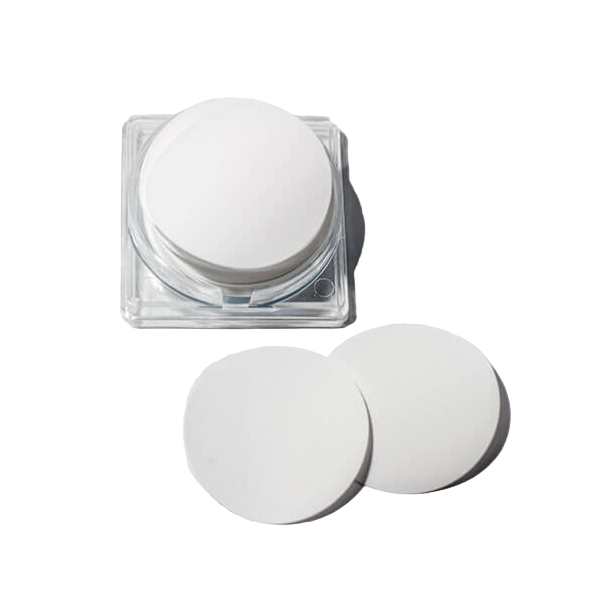

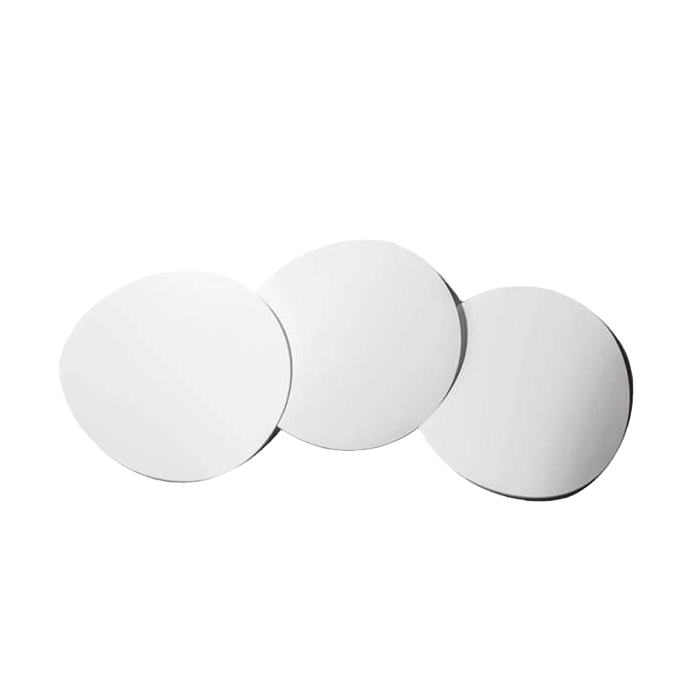

Membrane Filter PC 20um 47mm Plain white Non-sterile box100 K22CP04700

Polycarbonate membrane filter 20um 47mm, non-sterile
SKU: K22CP04700
Manufacturer: MicroScience
Pack Size: 100

Polycarbonate (PCTE) membrane filters are clear, thin, microporous filters with a smooth flat surface and precisely controlled cylindrical pores.image076

The precise port size of the PCTE filters is achieved by exposing polycarbonate film to charged particles in a nuclear reactor which leaves tracks in the film. The pore density is controlled by the duration of time that the polycarbonate film is exposed to the charged particles. The tracks on the polycarbonate film are then dissolved in a chemical solution to form cylindrical pores.

Pore sizes are controlled by varying the temperature, strength and exposure time of the etching solution.

This filter offers several benefits when viewing surface samples with optical or electron microscopes.

PCTE filters eliminate the clearing steps in microscopy required when using mixed esters of cellulose filters. The unique manufacturing process results in an extremely narrow pore size distribution for accurate separation of samples by size. The PCTE filters do not stain, minimising background interference.

Dia.Cat.No.Qty/Pk
20.0um pore size
13mmK22CP01300100
25mmK22CP02500100
47mmK22CP04700100

Learn more, please visit MicroScience website

Attribute nameAttribute value
ColourWhite
MediaPC/PolyCarbonate
Pore Size20um
Diameter47mm
Pack Size100
TypeNon-Sterile
SurfacePlain
