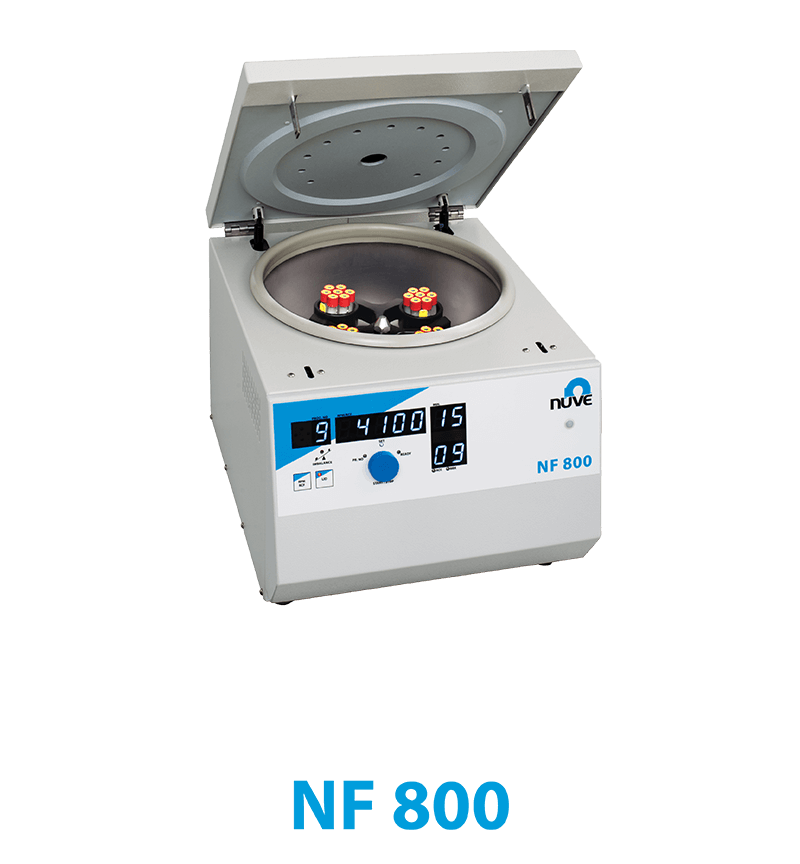

NF 800 Medium Capacity Centrifuge
SKU: NF 800
Manufacturer: Nuve
Pack Size: 1



The multi-purpose NF 800/800R bench top centrifuges respond to the requirements of laboratories carrying out a variety of applications. By combining a range of accessories and speeds in a single machine, they reduce the need for bench space and substantially reduce investment cost.

NF 800/800R are ventilated and refrigerated units offering up to 4x200 ml and over 3,000xg in swing-out rotor plus over 18,400xg for a microtube angle rotor. Maximum angle rotor volume is 6x50 ml; a 30x 5 ml rotor provides a high capacity, low cost answer to blood analysis.,

They can spin 6 microtitre plates, have a choice of 10 acceleration and braking rates for optimum separation quality and N-Prime™ microprocessor control system for precise operation with speed, RCF and temperature (R models). The ventilated units are designed to keep temperature rise to a minimum.



Maximum speed: 4.100 rpm Swing-out / 14.000 rpm Angle
Maximum RCF: 3.045 xg Swing-out / 18.405 xg Angle
Maximum capacity: 4x200 ml Swing-out / 24x1,5/2 ml Angle
N-Prime™ programmable microprocessor control system
Easy programming with one button, just turn and push
Programmable by RCF or RPM
Large bright digital display for program number, speed, time, RCF, acceleration and braking rates
10 program memories
Timer: 1 - 99 minutes and hold position
10 acceleration / 10 braking rates
Pulse function
Ventilation system
Maintenance-free induction motor
Motorized lid locking
Safety features: Imbalance detection, lid interlock, chamber guard ring, motor
over temperature, rotor over speed, diagnostic system
Delivered without rotor
Ext. dim. (WxDxH): 457x550x415 mm
230 V - 50/60 Hz



 ACCESSORIES FOR NF 800 / 800R
A 08 062Puller for rotor removal (B 50 017)
B 50 013RA 200 Swing-out rotor 4x200 ml, 4.100 rpm, 3.045 xg
G 51 026Set of 4 buckets for RA 200
G 51 033Set of 4 buckets with sealing cap
G 51 032Set of 4 200 ml PP bottles with cap
G 51 031Set of 4 inserts 1x100 ml
G 51 030Set of 4 inserts 1x50 ml conical
G 51 028Set of 4 inserts 7x15 ml
G 51 029Set of 4 inserts 3x15 ml conical
G 51 027Set of 4 inserts 7x5/7 ml
B 50 015RS 450 Angle Rotor 30x15 ml 4.100 rpm 3.007 xg
G 03 057Adaptor for 1,5/2 ml (Ø11 mm) tubes
 (Should be ordered according to the capacity of the rotor)
G 03 014Adaptor for 13x100 mm vacuumed / non-vacuumed tubes (7 ml)
 (Should be ordered according to the capacity of the rotor)
G 03 015Adaptor for 13x75 mm vacuumed / non-vacuumed tubes (5 ml)
 (Should be ordered according to the capacity of the rotor)
B 50 014RS 24 Angle rotor 24x1,5/2 ml 14.000 rpm, 18.405 xg
A 14 005Adaptor 500 / 800 µl
A 14 006Adaptor 200 µl PCR
A 14 007Adaptor 250 / 400 / 700 µl
B 50 017RS 300 Angle rotor 6x50 ml 9.000 rpm, 9.418 xg
G 51 024Set of 6 adaptors 1x15 ml conical
G 51 025Set of 6 rubber base adaptors for 50 ml conical tubes
B 50 021MP 200 Microtitre rotor, 2x3 microplates, 4.100 rpm, 2.349 xg



NF 800 Brochure Download:


Attribute nameAttribute value
Pack Size1
Speed rangeMax Swing 4100rpm/Angle 14000 rpm
Rotor CapacitySwing 4 x200 ml, Angle 24 x1.5/2 ml
