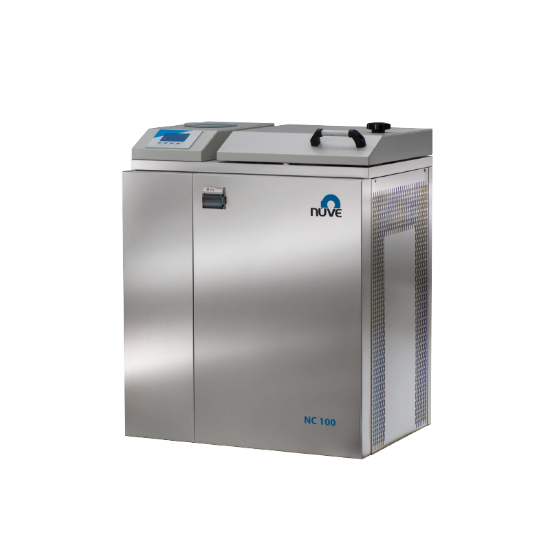

NC 100 VERTICAL STEAM STERILIZER POWERED BY N-Smart™

SKU: NC 100
Manufacturer: Nuve
Pack Size: 1



NC 100 heavy duty steam sterilizer has advanced technology for the sterilization of textiles, wrapped or packed materials and glass. The instrument of choice for operating theatres, laboratories, dentistry, biology, veterinary and agricultural departments of universities, microbiology and quality control laboratories of industries such as food.

Operators are freed up by its automatic operation, its maintenance-free vacuum pump and its instant recall 5 pre-set or 10 user-defined programs. Product safety is guaranteed by the pre-sterilization vacuum control to eliminate bubbles and post-sterilization fractionated vacuum control for sample drying. Sterilization is affected according to the EN 285 standard for large sterilizers and the instrument conforms to the Medical Devices and Pressure Equipment Directives.

With its 4,3’’ colourful display, N -Smart™ control system includes pre-set program for ease of use. Operated programs can be transferred to memory stick through USB port for traceability. By means of Wi-Fi connection and N-Mobile™ application, NC 100 can be traced anywhere and notification can be received instantly. A large range of safety features and self-diagnostics provide full user protection.



Chamber volume: 104 liters
Stainless steel chamber
Sterilization temperatures: 105°C / 136°C
Programmable microprocessor N-Smart™ control system
4,3'' LCD colourful display for maximum information
Password protected control system
5 preset programs: Universal, Solid, Prion, Quick, Gentle
10 custom made programs + Liquid and drying programs
2 test programs: Vacuum test - Bowie&Dick
5 language options (Turkish, English, French, Spanish, Russian)
Possibility of following the operating parameters graphically
Internal memory for last 500 cycles in detail and 29.500 cycles as summary
Memory for last 100 failures
Colour changing display in case of error
Equipped with NuveCom™ communication unit
Equipped with Wi-Fi connection for N-Mobile™
USB port to store the temperature records on memory stick
World-wide access via ethernet port with NuveCloser™
Rapid support by sending e-mails with the details of the failure
RS 232 port for PC or AlerText™
Process evaluation system
Comprehensive self-diagnostic system
Fractionated pre-vacuum system
Built-in steam generator
Maintenance free diaphragm type vacuum pump
Emergency stop button
HEPA filter at air intake line
Safety valve
Three baskets
Chamber dim. Ø 396x840 mm
Ext. dim. (WxDxH): 890x673x1115 mm
400 V - 50/60 Hz, 3 phases+N+G



 FACTORY FITTED OPTIONS

NC 100YPanel type thermal printer
NC 100AAutomatic water supply unit
NC 100ENuveLift™ to load/unload basket

 OPTIONS

A 08 191AlerText™ GSM alarm module
A 08 237NuveCloser™ Software for PC (operates through internet)



NC 100 Brochure Download:


Attribute nameAttribute value
Pack Size1
ModelNC 100
TypeVertical Steam Sterilizers
Capacity104L
