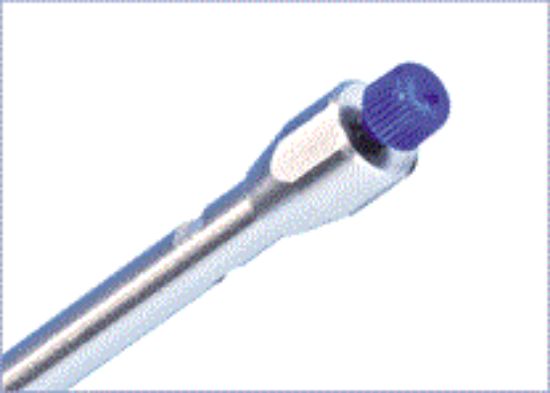

HPLC Column EC 150/4.6 NUCLEODUR C18 Gravity, 5 µm 760103.46

Macherey-Nagel MN Nucleodur EC 150/4.6 NUCLEODUR C18 Gravity, 5 µm 150X4.6mm

SKU: 760103.46

NUCLEODUR® C18 Gravity
High purity silica phase for HPLC
Nonpolar high density octadecyl modification, endcapped · 18 % C · USP L1
Properties

	Key features: Suitable for LC/MS and HPLC at pH extremes (pH 1–11) Superior base deactivation Ideal for method development
	Technical characteristics: High density octadecyl modification, multi-endcapped Pore size 110 Å; particle sizes 1.8 μm, 3 μm and 5 μm 7, 10, 12 and 16 μm particles for preparative purposes on request Carbon content 18 %
	Recommended application: Overall sophisticated analytical separations Compound classes separated include pharmaceuticals, e.g., analgesics, antiinflammatory drugs, antidepressants; herbicides; phytopharmaceuticals; immunosuppressants

Analytical column system manufactured from stainless steel M 8 outer threads on both ends Column heads SW 12, with inner threads M8 x 0.75 and UNF 10-32 (= 1/16" fitting)
EC column hardware guarantees pressure stability of 1200 bar - hereby EC columns are suitable for U-HPLC applications (ultra fast HPLC) and all modern HPLC systems.
As screw-on guard column system we recommend the Column Protection System used with EC guard column cartridges with 4 mm length.
Supplied with NUCLEODUR®, NUCLEOSHELL® and NUCLEOSIL® spherical silicas.
As built-in guard columns ChromCart® guard column cartridges with 8 mm length can be used with the guard column adapter EC (only for use with NUCLEOSIL® packed EC columns).
