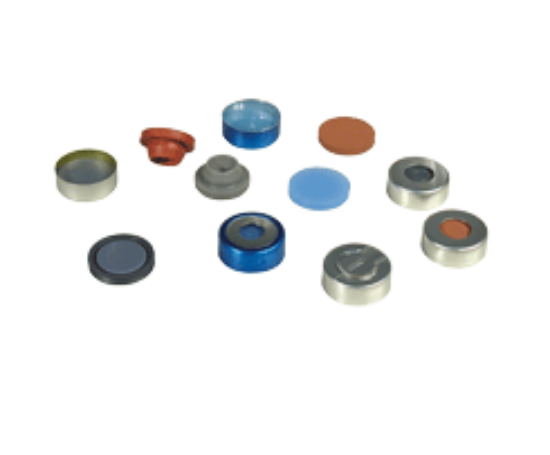

Crimp closure, N 20, alu., gold, center tear off,Butyl dark gray/PTFE gray,3.0mm 70233

N 20 aluminium center tear off cap, gold Butyl dark gray / PTFE gray*, ready assembled 50° shore A 3 mm
SKU: 70233
Manufacturer: Machery Nagel
Pack Size: 100



Center tear off caps are crimp caps with tamper evidence. In order to be able to access and penetrate the septum, the middle cover needs to be removed from the center hole. This product is a closure with a molded Butyl/PTFE liner that is only laminated with PTFE in the contact area with the sample. Thus the elastomeric Butyl can achieve on the vial's glass rims a very tight seal, while in comparison a completely PTFE covered septum would have a very slippery surface on the glass and could easily be twisted around.

Hazardous materialNo
Closure typeCrimp closure
Nominal diameterN 20
Assembling processAssembled
Cap materialAluminum
Cap colorGold
Cap holeCenter tear off
Closure magneticNo
Septa materialButyl/PTFE, Butyl/PTFE (Pharma-Fix)
Colors of septa materialDark gray/gray
Septa thickness3.0 mm
Septa hardness50° shore A
Additional cap featuresCenter tear off
Additional closure featuresMolded septum, only centrically laminated with PTFE, typically called Pharma-Fix, excellent sealing, temp. resistant from -40 °C up to 120 °C
Recommended application(s)Headspace, Packaging area
Autosampler compatibilityAgilent, PerkinElmer, Varian CP-9020/9025 / CP-9060 / Genesis
Storage temperatureRT
Scope of delivery100x N 20 ready assembled crimp closures





Attribute nameAttribute value
Pack Size100
Diameter20mm
ColourGold
TypeAluminum Seal
WithButyl/PTFE
