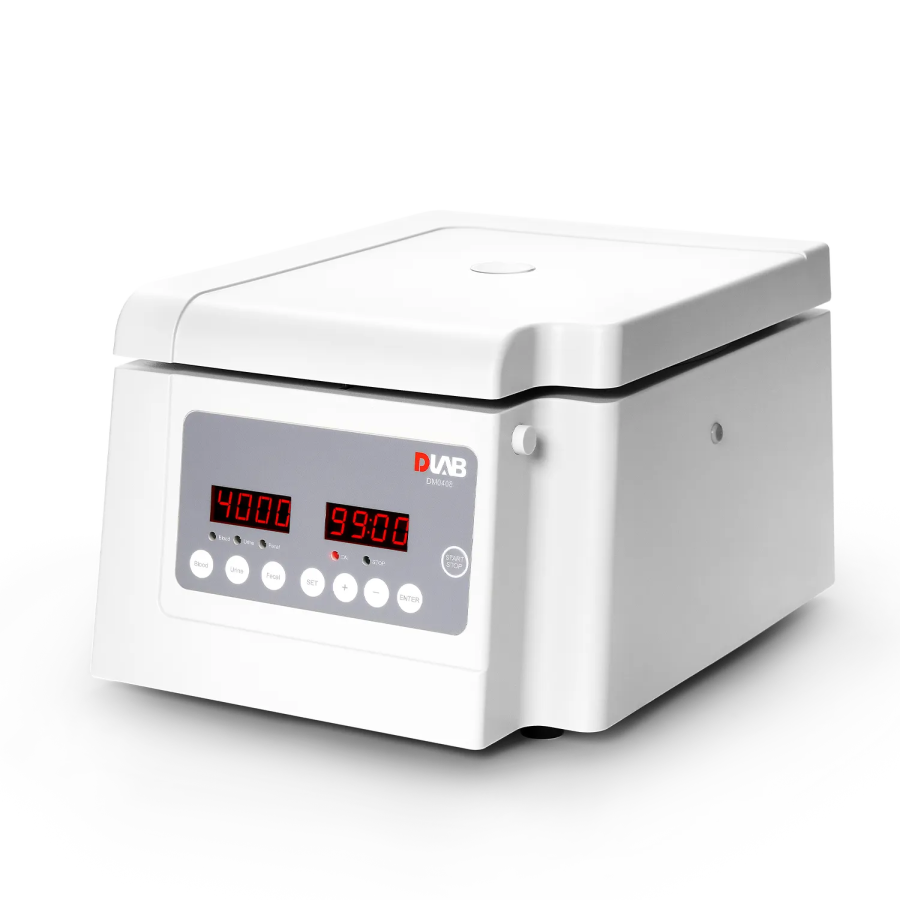

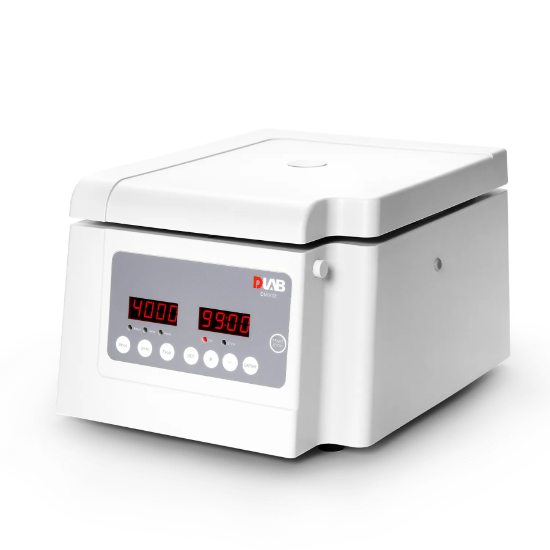

DM0408 Multi-Purpose low Speed Centrifuge
- Quiet, compact, and convenient with LCD display
- Maximum up to 4000rpm Speed can be set in RPM/RCF, with 3 customizable routine programs (Blood, Urine&Faecal)
- 3 acceleration level & 4 level deceleration

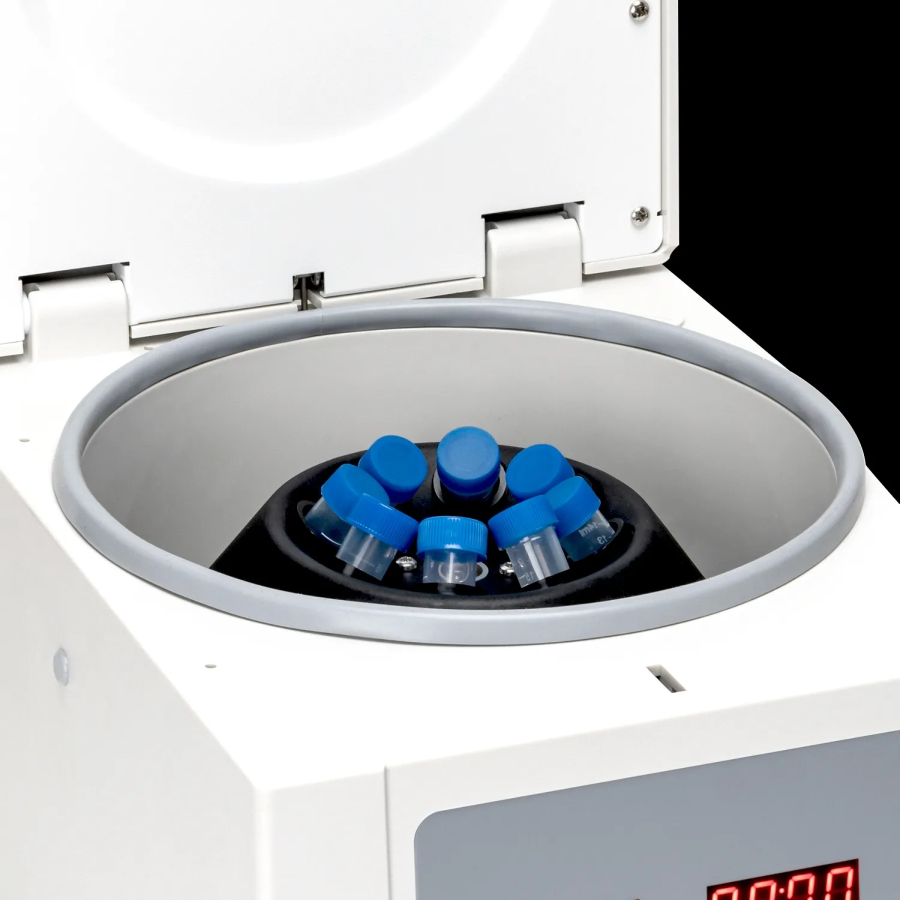

- Maximum capacity 50mL ×4, Accommodating different sizes of blood collection tubes and centrifuge tubes suitable for swing out rotor and angle rotor
- Automatic internal diagnosis and self-detection
- Maintenance-free brushless DC motor
- Complies with applicable CE requirements.
Product Applications
For serum, plasma and whole-blood separation, urine processing and clinical-sample pretreatment. Supports routine centrifugation of multiple blood-collection and centrifuge-tube sizes for clinical testing, biochemical analysis and research.
| Specifications |
| Speed range | 300-4000rpm increment: 100rpm |
| Max. RCF | 1900×g |
| Speed accuracy | ±100rpm |

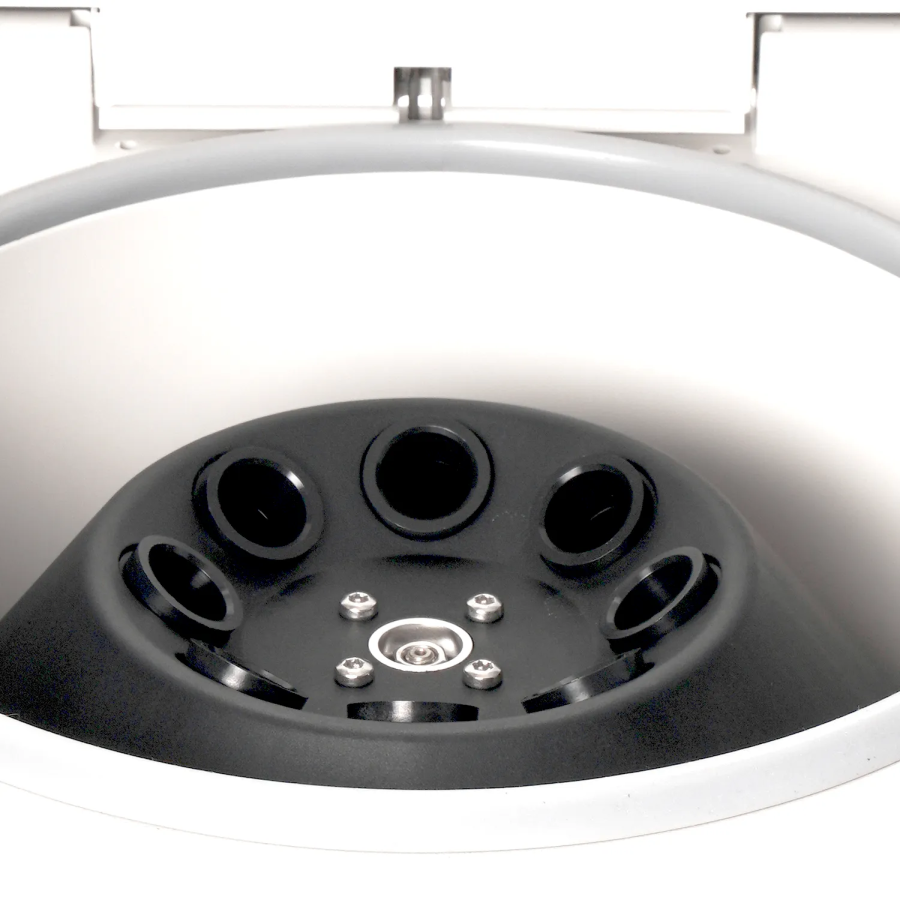

| Rotor | Angel 8×15ml (Default), Angel 10ml×12 |
| Run time | 1-99min, HOLD |
| Motor | Brushless DC motor |
| Display | LED |
| Program | Blood: 3200rpm,10min. Urine: 1800rpm,5min. Faecal: 1300rpm,10min. |
| Safety Device | Automatic internal diagnosis |
| Acceleration/deceleration | 25s↑35s↓ |
| Power | Single phase, 100V-240V, 50Hz/60Hz |
| Dimension(W×D×H) | 286×367×227mm |
| Weight | 9.2kg |
| Noise | ≤60dB(A) |
| Cat. No. | P/N | Descriptions |
| 19400084 | A8-15P | Plastic angel rotor,15ml x 8,default adaptor A15P22 |
| 19200921 | A12-10P | Plastic rotor,15ml x 8 or 10ml×12 |
