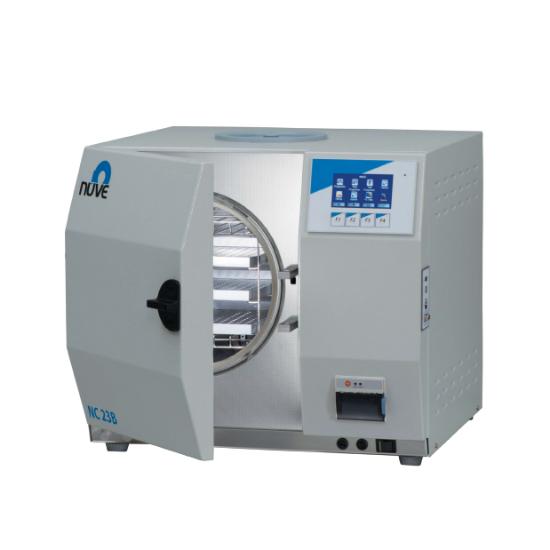

Laboratory Equipment Autoclave Bench Top 23Litres NC 23B

B CLASS BENCH TOP Autoclave Chamber volume: 23 liters Sterilization temperatures : 121°C / 134°C
SKU: NC 23B
Manufacturer: Nuve
Pack Size: 1



NÜVE has enormous experience in the manufacturing of steam sterilizers. This current product range has been carefully designed to cover all applications in general medical practices, dentistry, facilities for personal hygiene, beauty care, veterinary practices and stand-by use in hospitals and clinics. Instruments conform to the requirements of the EN 13060 standard for B and S Class sterilization with additional technical advantages.

Elimination of air bubbles is important and steam should reach all surfaces, so B and S units have a fractionated vacuum operation with a vacuum pump designed especially for use with steam. S models, because of the types of loads that will be sterilized, do not need such a feature and use fractionated gravity with alternating inflow and outflow of steam.

Traceability is comprehensively covered with storage and visualization of all run data using N-Smart™ control system. A large range of safety features and self-diagnostics provide full user protection.

B CLASS BENCH TOP STEAM STERILIZER POWERED BY N-Smart™
Chamber volume: 23 liters
Sterilization temperatures: 121°C / 134°C
Sterilization loads: All wrapped or unwrapped solid, hollow loads Type A and porous products
Programmable microprocessor N-Smart™ control system
4,3'' LCD colourful display for maximum information
Password protected control system
5 preset programs: Universal, Quick, Gentle, Prion and Flash
2 custom made programs and drying program
2 test programs: Vacuum test - Bowie&Dick/Helix test
5 language options (Turkish, English, French, Spanish, Russian)
Possibility of following the operating parameters graphically
Internal memory for last 500 cycles in detail and 29.500 cycles as summary
Memory for last 100 failures
Colour changing display in case of error
Equipped with NuveCom™ communication unit
Equipped with Wi-Fi connection for N-Mobile™
USB port to store the temperature records on memory stick
World-wide access via ethernet port with NuveCloser™
Rapid support by sending e-mails with the details of the failure
RS 232 port for PC or AlerText™
Seamless stainless steel chamber
Fractionated pre-vacuum system
Minimum vacuum level: 100 mbar
Process evaluation system
Comprehensive self-diagnostic system
HEPA filter at air intake line
Safety valve
Capacity for sterilization cassettes: 3 pcs.
Three shelves
Chamber dim. Ø 260x440 mm
Ext. dim. (WxDxH): 573x743x523 mm
230 V - 50/60 Hz





 FACTORY FITTED OPTION
NC XXXBYPanel mounted thermal printer
 OPTIONS
A 08 191AlerText™ GSM alarm module
A 08 237NuveCloser™ Software for PC (operates through internet)
 ACCESSORIES
R 01 123 Aluminum shelf
A 08 092Sealed sterilization pack carrier



NC 23B Brochure Download:




Attribute nameAttribute value
Pack Size1
ModelNC 23B
TypeBench Top Steam Sterilizers
Capacity23L
