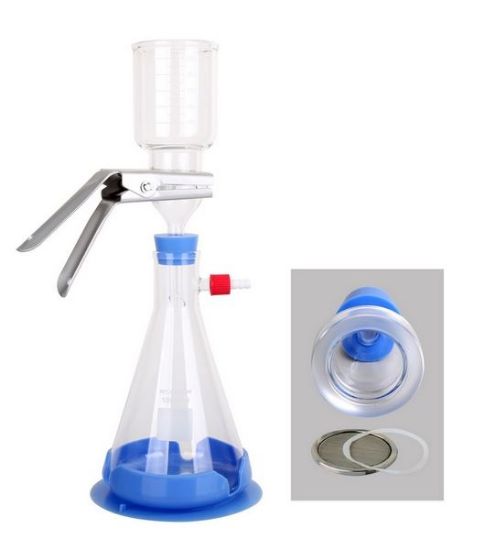

VF7, 47 mm Glass Filtration Apparatus 167200-07　

Filter Diameter 47mm; VF7, 47 mm Glass Filtration Apparatus 167200-07

SKU: 167200-07

Manufacturer: Rocker

Pack Size: 1

Material	Specification
▸ Funnel: Borosilicate glass ▸ Support base: Borosilicate glass ▸ Membrane support: SS screen with PTFE gasket ▸ Clamp: Aluminum ▸ Stopper: Silicone rubber ▸ Receiver flask: Borosilicate glass	▸ Funnel capacity: 300 mL ▸ Flask capacity: 1000 mL ▸ Filter diameter: 47mm ▸ Hose barb: ID8 ▸ Effective filtration area: 9.6 cm²

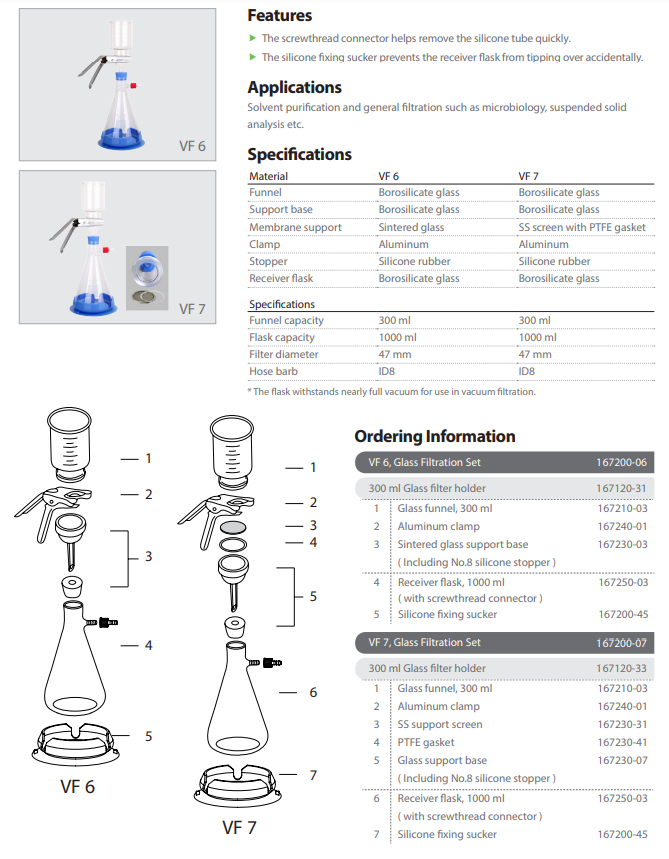

Part Number	Description
167200-07	VF 7, Glass Filtration Set (includes part below)
167250-03	(6) Receiver flask, 1000ml (with screwthread connector)
167200-45	(7) Silicone fixing sucker
167120-33	Glass filter holder 300 mL (includes 1/2/3/4/5)
167210-03	(1) Glass funnel, 300mL
167240-01	(2) Aluminum camp, 47mm
167230-31	(3) SS support screen
167230-41	(4) PTFE gasket
167230-07	(5) Glass support base ( including No.8 silicone stopper)

VF 7 Filtration Apparatus

◆ The screwthread connector helps remove the silicone tube quickly.

◆ The silicone fixing sucker prevents the receiver flask from tipping over accidentally.

Filtration Apparatus Features:

◆ The stainless steel screen with PTFE seal only needs a simple cleaning can be reused.

◆ The screwthread connector helps remove the silicone tube quickly.

◆ The silicone fixing sucker prevents the receiver flask from tipping over accidentally.

Filtration Apparatus Applications :

Ideal for solvent purification and general filtration for microbiology, suspended solid analysis etc.
