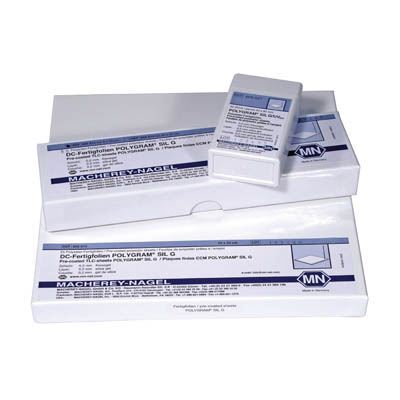

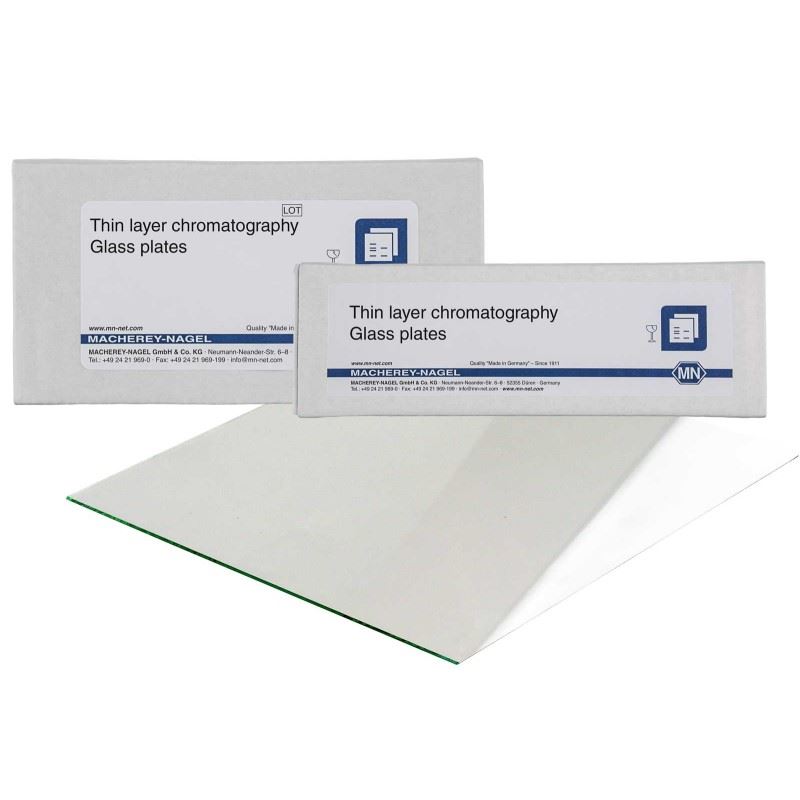

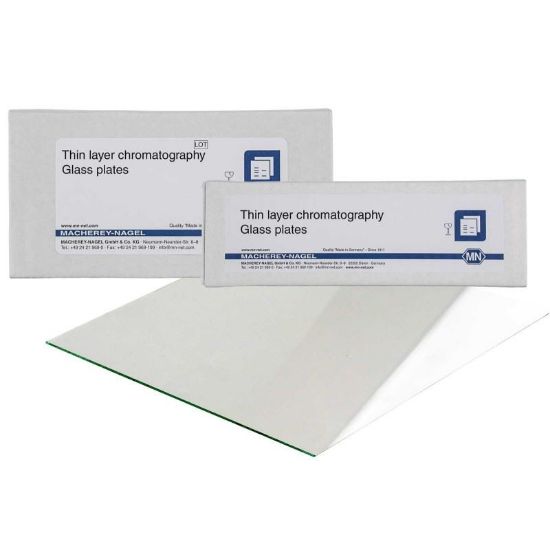

TLC precoated plates SIL G-25 UV 254 size: 5x20 cm pack of 100 809021

TLC precoated plates SIL G-25 UV 254 size: 5x20 cm pack of 100
SKU: 809021
Manufacturer: Machery Nagel
Pack Size: 100





Standard TLC glass plates coated with a soft layer of unmodified silica gel 60. Thickness of layer for analytical plates 0.25 mm. For preparative purposes (PLC) different layer thickness are available (0.5 mm, 1 mm and 2 mm). For 2 mm preparative layers a slightly coarser material is used. Available with different UV indicators - manganese activated zinc silicate with green fluorescence for short-wave UV (254 nm); special inorganic fluorescent pigment with blue fluorescence for long-wave UV (366 nm). SIL G is available on glass plates, aluminum sheets and polyester sheets in different sizes.

Hazardous materialNo
MethodThin layer chromatography (TLC)
BrandSIL G
PhaseSIL G UV254
Base materialGlass plates coated with silica gel
Surface chemistryUnmodified silica gel (SiOH)
ModeNormal phase (NP)
Plate size5x20 cm
Layer thickness0.25 mm
Layer hardnessStandard, soft
UV indicatorYes
Support material / backingGlass
Particle size5–17 µm
Particle typeFully porous particles (FPP)
Particle shapeIrregular
Pore size60 Å
Pore volume0.75 mL/g
BinderYes
pH stability2.0–8.0
Recommended application(s)Aflatoxins, Alkaloids, Amines, Amino acids, Analgetics, Antibiotics, Hormones, Marihuana compounds, Normal phase (NP), Patulin, Steroids, Sweeteners, The standard (soft) layer for thin layer chromatography, Vitamins
Temperature stabilityHigh
Storage temperatureRT
Scope of delivery100x TLC glass plates (5x20 cm)



Attribute nameAttribute value
Pack Size100
BrandSIL G
PhaseSIL G UV254
Plate size5x20cm
