Tissuquartz Air Monitoring Filters - 25 mm Diameter Disc Filters, Filter Media Pure Quartz, no Binder, 100pk, PL7200

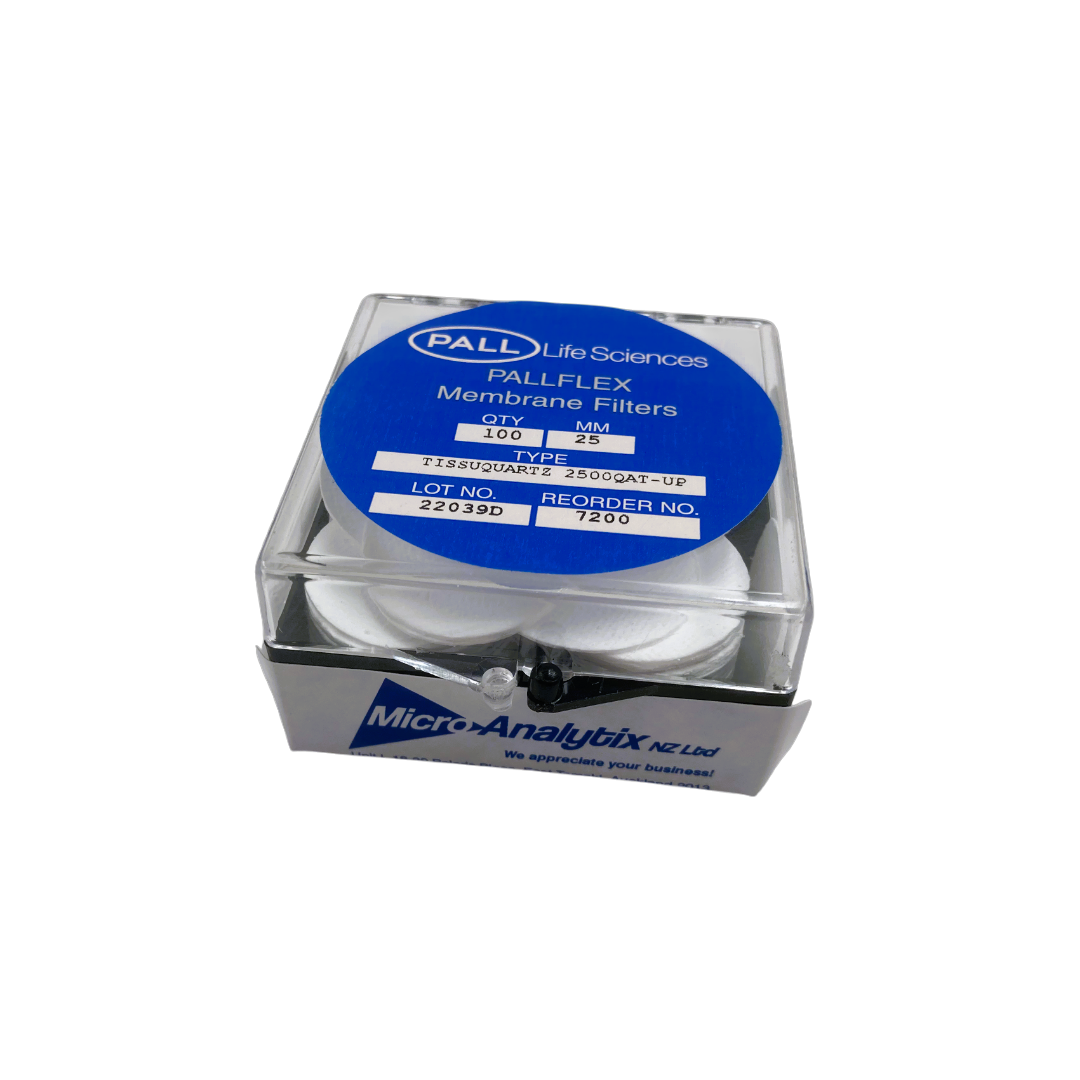

Pallflex® Tissuquartz™ Air Monitoring Filters - 25 mm (100/pk)

Specification:

• Material: Pure quartz, no binder
• Air flow rate(0.7 bar(70 kPa,10 psi): 73 L/min/cm²
• Diameter: 25 mm
• Maximum Operating Temperature (Metric): 1093 °C
• Typical Aerosol Retention: 99.90%
• Typical Filter Weight (Metric): 5.8 mg/cm²
• Typical Thickness: 432 µm
• Water Flow Rate: 220 mL/min/cm²

Versatile Filters Uniquely Suited for a Broad Range of Air Monitoring Applications:

• Useful for high temperature and hot gas air monitoring applications.
• Ideal for stack sampling and diesel emissions testing.

Tissuquart Filters:

• Heat-treated for reduction of trace organics and superior chemical purity.
• High-temperature use for analysis of acidic gases and stack sampling aerosols.
• High flow rate and filtration efficiency.
• Ultra-pure soft water processing to reduce residual ion content. (Contact Pall Technical Service for typical values.)

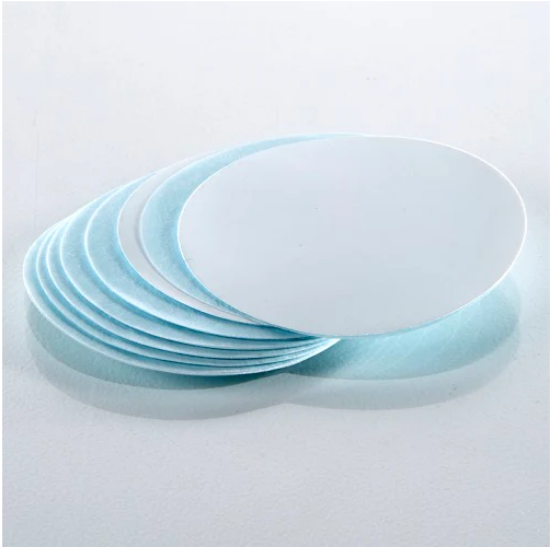

Pallflex Tissuquartz filters are 100% pure quartz filters (with no binder) for air monitoring applications. They feature a high flow rate and filtration efficiency. -Pure quartz -High flow rate -Interference-free results Obtain highly sensitive and interference-free results due to their reduced residual ion and organics content. For even lower levels of trace organics, choose the popular heat-treated grade 2500 QAT-UP. Tissuquartz filters can withstand high operating temperatures. This feature makes them durable and ideal for the analysis of acidic gas, stack sampling, and other harsh testing environments. Filter media is pure quartz, with no binder
