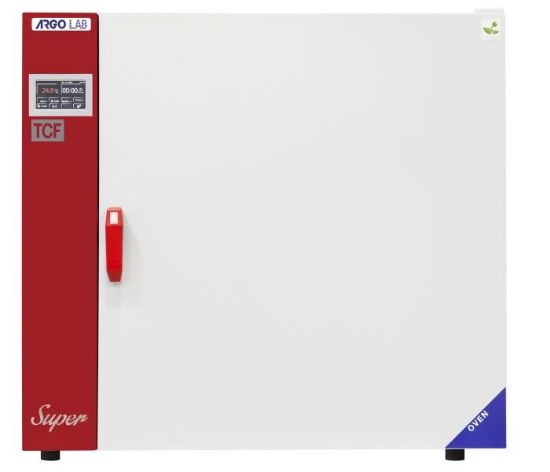

TCF 50 Forced air Oven, SUPER Version,41100602

TCF 50 ArgoLab forced air oven
SKU: 41100602
Manufacturer: GIORGIO BORMAC



Range: from 10 °C above ambient temperature up to 300 °C. Net volume of 50 liters.

Temperature variation in the time at 150 °C: ± 0.3 °C, temperature uniformity in the space at 150 °C: ± 2%.

Digital PID controller with limited number of adjustment keys for easy parameter setting.

Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters.

Visual and audible Alarm be disable by the operator.

Digital timer with range of programming 1 min - 99 h and 59 min. and continuous function.

Possibility to set a delay in the start of the heating cycle.

Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature').

-----------------------------------------------------------------------------------

Safety Class 3.1 with double digital limiters of temperature and additional fluid expansion limiter.

Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature.

Stainless steel chamber with supports for the shelves completely removable for easy cleaning.

Supplied with two wire shelves.

External dimensions (width x height x depth): 690 x 635 x 570 mm.

Weight 54 Kg. 230V / 980 W.

The minimum heating times and the reduced heating power guarantee low energy consumption in each application.

Supplied with calibration report at 150 °C executed with instrument Accredia certificated.

SUPER version, color touch screen display, 8 programs that can be memorized with 8 steps each (temperature, time) and a further basic program with a single operating step (temperature, time, fan speed).

Recording of working data without limit on USB stick supplied.

Packaging and transport included.

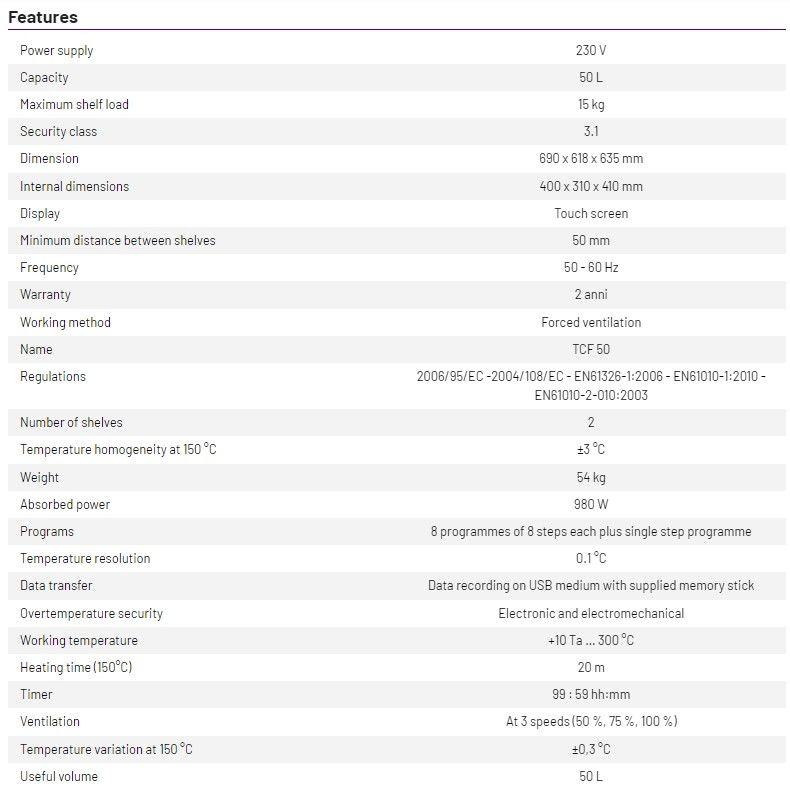

Attribute nameAttribute value
Capacity50L
Temperature Max300 °C
Temperature Min+ 5 °C RT
VentilationForced
