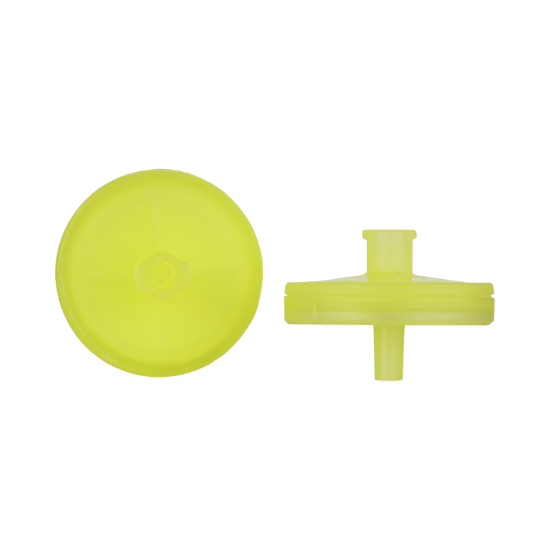

Picture of CHROMAFIL disposable syringe filters MV, 0.2 µm, 25mm,Y ellow, pk400, 729006.400

CHROMAFIL disposable syringe filters MV, 0.2 µm, 25mm,Y ellow, pk400, 729006.400

CHROMAFIL disposable syringe filters MV-20/25 BIGbox membrane material: cellulose mixed esters (MV) pore dia.: 0.2 µm, membrane dia.: 25 mm color code above: yellow / below: yellow former product designation CHROMAFIL A-20/25 BIGbox of 400
SKU: 729006.400
Manufacturer: Machery Nagel
Pack Size: 400

Inside the syringe filter a cellulose mixed ester is used as membrane material. The hydrophilic MV membrane is suitable for aqueous or polar solutions. All CHROMAFIL filters are autoclavable (121 °C and 1.1 bar for 30 min)!

Technical data
Selling unit100 pieces, 400 pieces
MethodFiltration
BrandCHROMAFIL
TypeSyringe filter, color coded
Housing typeWheel-like shaped housing
HardwarePolypropylene (PP) housing with filter membrane
Membrane typeCellulose mixed esters (MV)
Membrane propertiesHydrophilic
Filter type25 mm
Effective membrane diameter*22 mm
Membrane pore size0.2 µm
Code typeColor coded
Color code (top)Yellow
Color code (bottom)Yellow
InletLuer lock (top)
OutletLuer tip (bottom)
Sample volume5-100 mL
Recommended application(s)Suitable for aqueous, polar, hydrophilic samples with low particle-load, Suitable for UHPLC, core-shell and HPLC columns packed with particles < 3 µm, GC, SFC
SterileNo
Binding capacity (proteins)High
Dead volume80 µL
Effective filtration area*3.8 cm²
Storage temperature15–25 °C / 59–77 °F
Packaging dimensions113 x 113 x 150 mm / 4.45 x 4.45 x 5.91 Inch
Gross weight (incl. packaging)363 g / 0.8 lbs
Hazardous materialNo
Remark*Standardized measurement since Mai 2023. The product has not been modified.
Attribute nameAttribute value
Pack Size400
Diameter25mm
Pore Size0.2um
MediaMCE/Mixed Cellulose Esters
