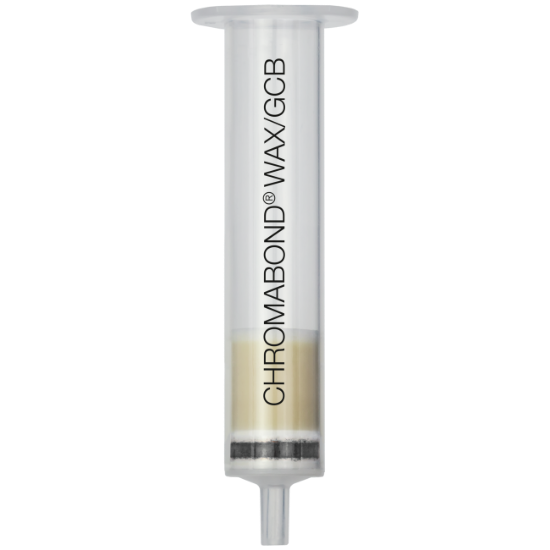

SPE column, CHROMABOND WAX/GCB, 30 µm WAX, 6 mL, 500 mg/50 mg, pk 30, 7300045

SPE column, CHROMABOND WAX/GCB, 30 µm WAX, 6 mL, 500 mg/50 mg
SKU: 7300045
Manufacturer: Machery Nagel

Bilayer dual-phase SPE cartridge featuring CHROMABOND® WAX for extraction and concentration of analytes in combination with GCB (graphitized carbon black) for sample cleanup, allows to substitute a single WAX based SPE cartridge and a dispersive Solid Phase extraction (dSPE) with GCB in a powder format. State-of-the-art spherical polymer for highest demands in solid phase extraction. PS/DVB copolymer with secondary and tertiary ammonium modification for mixed-mode SPE with weak anion exchange and reversed-phase properties (WAX). Exchange capacity ≥ 0.8 meq/g, pKa 6 + 9. High-purity material with ideal flow properties and highest reproducibility. Allows highest reproducibility with extremely low blind values due to an optimized production process. Suitable for analysis of per- and polyfluoroalkyl substances (PFAS) e.g. in aqueous, solid, biosolids, and tissue samples as well as highly pigmented matrices e.g. food, feed or environmental matrices. Especially suitable for PFAS analysis e.g., according to EPA method 1633 and DOD QSM 5.1/5.3.

Technical data
MethodSolid phase extraction (SPE)
BrandCHROMABOND
PhaseWAX/GCB
ModeMixed mode (RP and Ion exchange (IEX))
Base materialPS/DVB copolymer and graphitized carbon black (GCB)
Surface chemistryHydrophobic spherical polystyrene-divinylbenzene copolymer (PS/DVB) with secondary and tertiary ammonium modification, weak Mixed mode anion exchanger (WAX)
EndcappedNo
Column typeSPE column
HardwarePolypropylene (PP) columns with polyethylene (PE) filter elements
Column shapeOpen tubular syringe-shaped column with Luer tip outlet
Column volume6 mL
Filling quantity500 mg WAX/50 mg GCB
Column volume/adsorbent weight6 mL/500 mg WAX/50 mg GCB
Recommended application(s)Active ingredients from strongly matrix contaminated samples, PFAS analysis
Particle size30 µm WAX / 120/400 mesh (38 - 125 µm) GCB
Particle shapeSpherical WAX
Specific surface according to BET800 m²/g WAX / ≥ 80 m²/g GCB
pH stability1.0–14.0
Filter element materialPolyethylene (PE)
Hazardous materialNo
Attribute nameAttribute value
Volume6ml
PhaseWAX/GCB
