SolarVac 601-MB-A, Vacuum Filtration System, AC100-240V adaptor with EU plug, 186601-02-A

SKU: 186601-02-A
Manufacturer: Rocker



SolarVac Multi-Branch Filtration System Ordering Information

Product NumberDescription

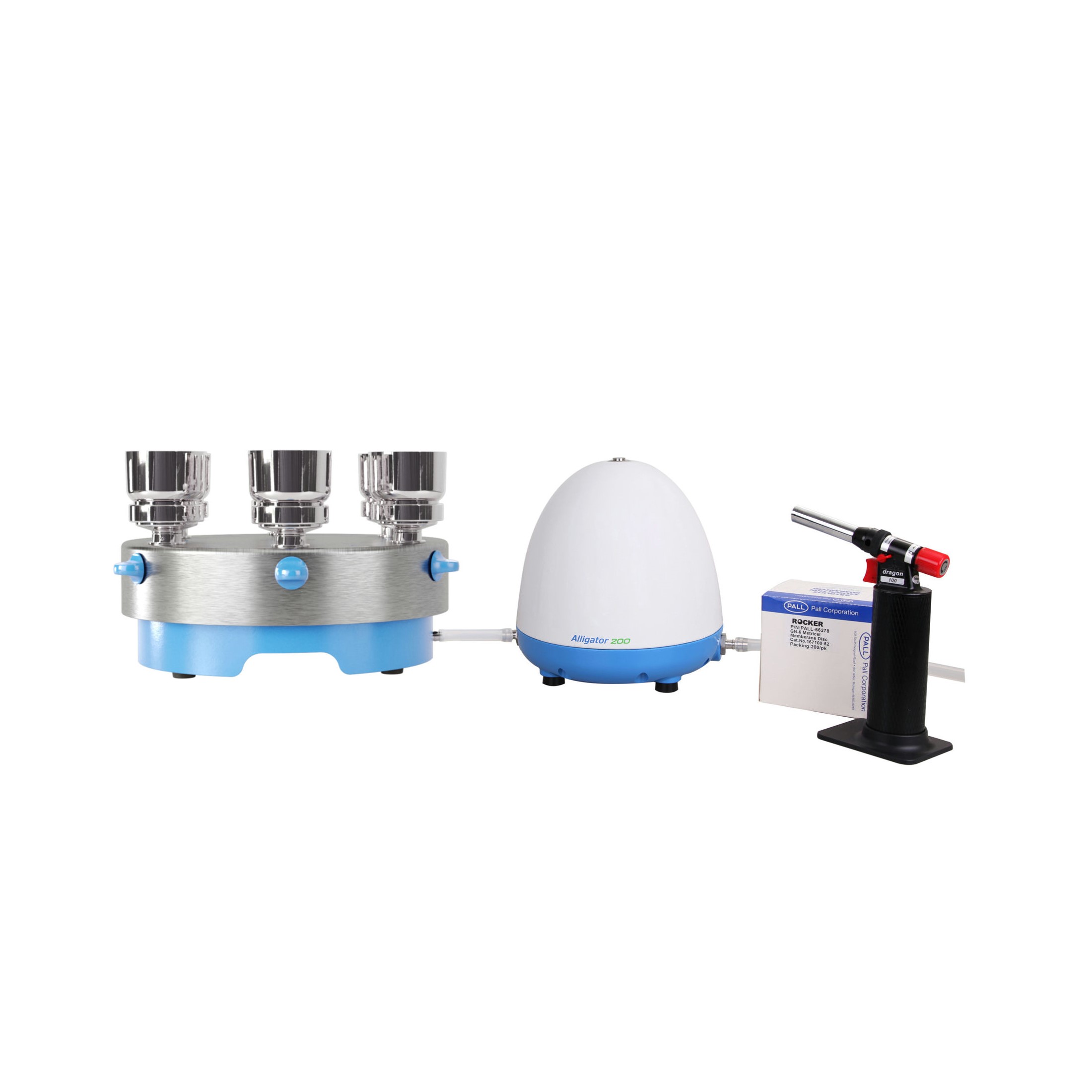

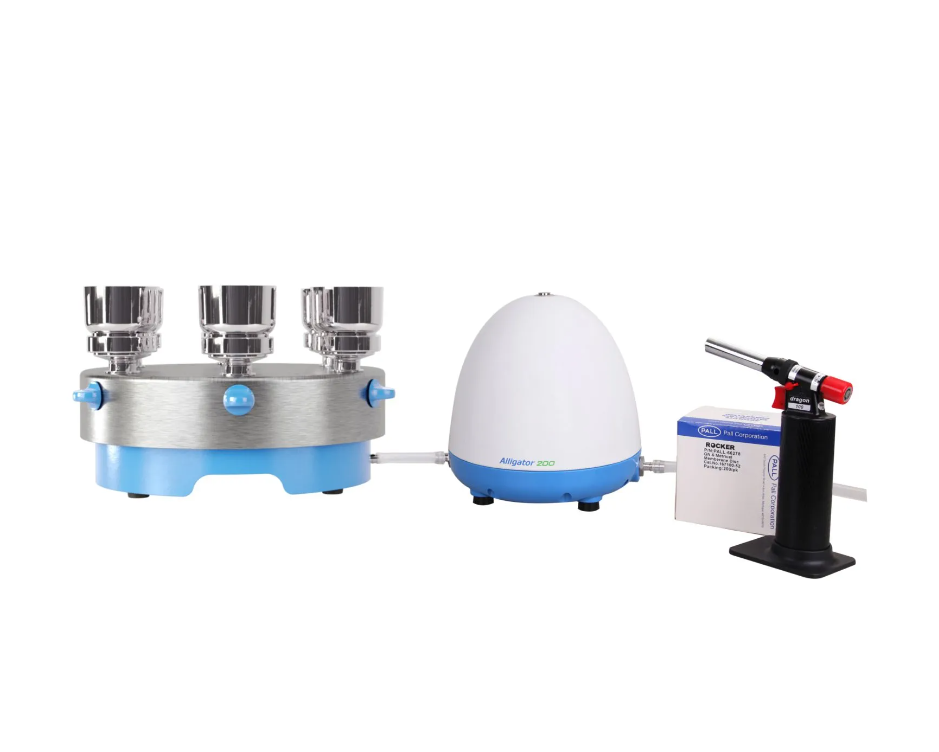

186601-01/02-A SolarVac 601 – MB – A Vacuum Filtration System includes:
* Alligator 200, Diaphragm Liquid Pump
* SolarVac 600 – MB
* SF Stainless Steel Funnel, 100 mL *6pcs
* Dragon 100, Torch Burner
* MCE Membrane, 47 mm, 0.45 µm, 200/PK
* Silicone Tube



SolarVac 601 – MB – A Filtration System Specification

Specification

▸ Power input: DC24V, 1.8A
▸ Max. power: 44W
▸ Max. vacuum: 313 mbar abs.
▸ Max. liquid flow rate: 4.5 L/min
▸ Motor: BLDC motor
▸ Noise level: 60 dB
▸ Material contact with filtrate: SS316, FKM, silicone, PP, PPS
▸ Number of branch: 6
▸ Filter diameter: 47 mm
▸ Funnel capacity: 100 ml
▸ Hose barb: ID8





SolarVac 601 – MB – A Vacuum Filtration System

◆ For microbiological filtration
◆ Innovative rotary design
◆ Save 60% space
◆ Easy tracking
◆ Durable and autoclavable
◆ Individual control valve
◆ Includes ROCKER SF funnels


SolarVac Multi-Branch Filtration System Features

  • For microbiological filtration
    SolarVac 601 – MB – A, include Alligator 200 diaphragm liquid pump, rotary manifold, burner and MCE membrane, are designed for a large number of samples in microbiological test.
  • Rotary design
    Turn the funnels and add samples at same position and prevent cross-contamination.
  • Save time & space
    Alligator 200 is a liquid pump that bypasses filtrate directly to drain without additional bottles. Save 60% bench space and save time from tedious cleaning works.
  • Easy tracking
    Each funnel position is marked clearly with numbers, making tracking easy and effortless.
  • Durable and autoclavable
    The wetted parts of SolarVac manifold are made of SS316 and silicone which is durable and autoclavable.
  • Individual control valve
    Control feeds of each funnel individually.
