SolarVac 1201-MB-T, Vacuum Filtration System, AC220V, 50Hz with EU plug, 1861201-22-T

SKU: 1861201-22-T
Manufacturer: Rocker



SolarVac Multi-Branch Filtration System Ordering Information

Product NumberDescription

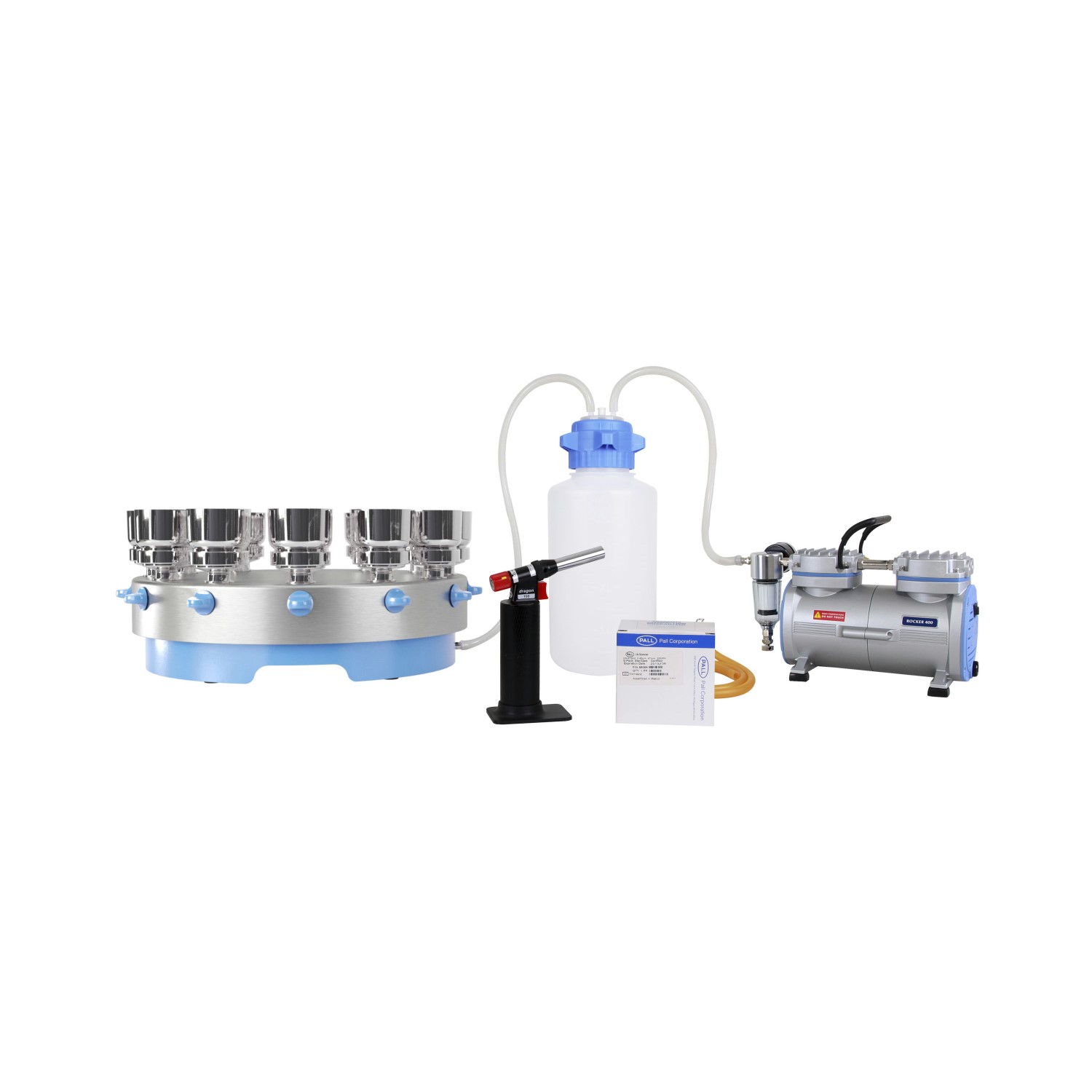

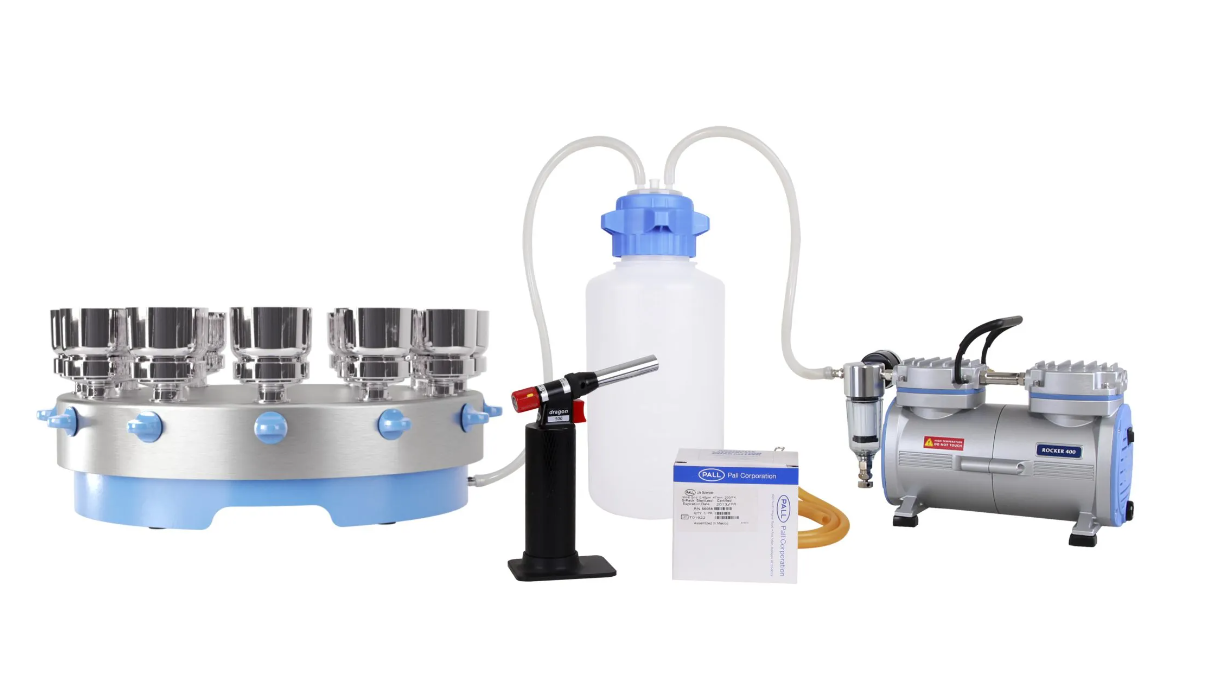

1861201-22-TSolarVac 1201 – MB – T Vacuum Filtration System includes:
* Rocker 400, Oil Free Vacuum Pump
* SolarVac 1200 – MB
* SF Stainless Steel Funnel, 100 mL *12pcs
* PP Vacuum Bottle with drain, 4000 mL
* Dragon 100, Torch Burner
* MCE Membrane, 47 mm, 0.45 µm, 200/PK
* Silicone Tube (2 pcs)



SolarVac 1201 – MB – T Filtration System Specification

Specification (220V)

▸ Max. power: 80W
▸ Max. vacuum: 99 mbar abs.
▸ Max. liquid flow rate: 37 L/min @ 50Hz
▸ Noise level: 52 dB
▸ Vacuum regulator: Yes
▸ Overflow protection: Yes
▸ Number of branch: 12
▸ Filter diameter: 47 mm
▸ Funnel capacity: 100 ml
▸ Hose barb: ID8



Youtube Video: Filter more, save more! SolarVac Rotary Filtration Manifold



SolarVac 1201 – MB – T Vacuum Filtration System

◆ For microbiological filtration
◆ Innovative rotary design
◆ Easy tracking
◆ Durable and autoclavable
◆ Individual control valve
◆ Includes ROCKER SF funnels


SolarVac Multi-Branch Filtration System Features

  • For microbiological filtration
    SolarVac 1201 – MB – T, include Rocker 400 vacuum pump, rotary manifold, waste bottle, burner, and MCE membrane, are designed for a large number of samples in microbiological test.
  • Rotary design
    Turn the funnels and add samples at same position and prevent cross-contamination.
  • 4000 mL PP vacuum bottle with drain
    The large capacity of 4000 mL vacuum bottle with drain offers convenience of collecting and draining waste solution.
  • Easy tracking
    Each funnel position is marked clearly with numbers, making tracking easy and effortless.
  • Durable and autoclavable
    The wetted parts of SolarVac manifold are made of SS316 and silicone which is durable and autoclavable.
  • Individual control valve
    Control feeds of each funnel individually.
