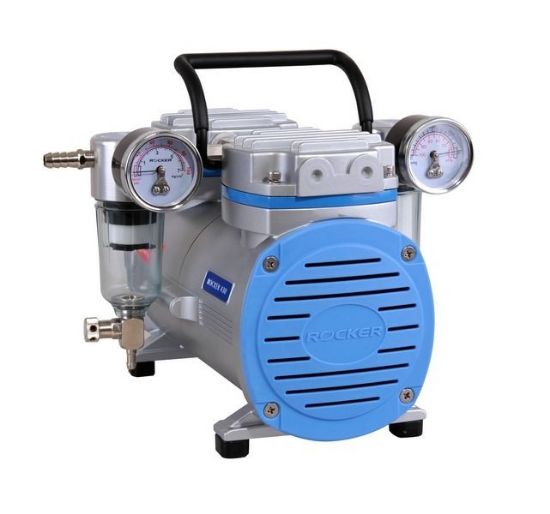

Rocker 430, Oil Free Vacuum/ Pressure Pump 167430-22

Rocker 430, Oil Free Vacuum/ Pressure Pump, AC220V, 50Hz
SKU: 167430-22
Manufacturer: Rocker
Pack Size: 1
▸ Rocker 430: 220V/50Hz
▸ Max. power: 125W
▸ Max. current: 0.6A
▸ Max. vacuum: 145 mbar
▸ Max. pressure: 80 psi
▸ Max. flow rate: 28 L/min
▸ Motor rotation speed: 1450 RPM
▸ Horse power: 1/6 HP
▸ Noise level: 52 dB
▸ Hose barb: ID8 (5/16 inch)
▸ Net weight: 5.5Kg
▸ Dimension (LxWxH): 24.7 x 23.5 x 20.4 cm
▸ Vacuum Gauge: Yes
▸ Vacuum Regulator: Yes
▸ Overflow protection: Yes

▸ Thermal protection: Yes

Oil Free Vacuum / Pressure Pump Features

▸ Vacuum / pressure in one machine

Rocker 430 lab pump works as both vacuum pump and compressor. Equipped with gauges and regulators for easy monitoring and adjusting the vacuum level or delivery pressure.

▸ No air pollution, maintenance free

Rocker series lab pumps are driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.

▸ Prote™ overflow protection

Rocker 430 lab pump is equipped with Prote™ overflow protection which can prevent a large amount of liquid from being sucked into the pump.

▸ Prote™ overflow protection

▸ Moisture trap with filter cartridge

Rocker 430 lab pump is equipped with filter cartridge at the air inlet and outlet to filter particle and moisture to prolong the life of pump.

▸ Thermal protection device

Every motor of Rocker series lab pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.



Product Part NumberProduct

167430-22

Rocker 430, Oil Free Vacuum Pump AC220V, 50Hz



Youtube Video :

How do you protect your vacuum pump from liquid damage

6 Reasons to choose Rocker Pumps

Attribute nameAttribute value
Pack Size1
ModelRocker 430
TypeOil Free Vacuum Pump
