System Options Available:

1. Fusion 160 (IT or GP) - Produces 14.4 lph @ 10 deg C

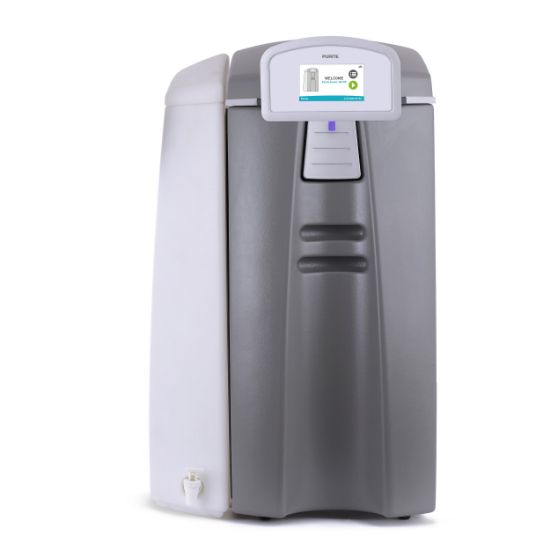

2. Fusion 320 (IT or GP) - Produces 30 lph @ 10 deg C
3. Fusion 160 ECO (IT or GP) - Higher recovery to 50% which offers significant reduction in water usage over the standard system (requires higher frequency replacement of membranes. Est. replacement annually.)

Features:

• Permeate Water Quality: Guaranteed 18.2MΩ.cm water quality
• Bacteria: < 0.1cfu/ml
• TOC: < 5 ppb
• Particles: 0.005 micron's
• Endotoxins: <0.001EU/ml
• DNases: <4pg/ml
• RNases: <0.01ng/ml
• Dispense Flow Rate: Up to 2 lpm
• WiFi Enabled for remote monitoring and operation
• UV LED Point of Use Water Steriliser in Dispense Head

Storage tank options:

• IT - Integrated 20 litre storage tank
• GP - For higher peak demand applications. No integrated tank. Requires an external tank from the 'Select' range of either 50 or 100 litres purchased separately

Information

Min / Max feed pressure: 2.1 / 6.2 bar

Feed Water: Potable

Electrical Supply: Single Phase, 110-230V, +/- 10%, 50/60 Hz

Bench mountable or wall mountable with wall bracket mounting kit

Installation service available for an additional price - Pre-requisite of services to be in place. Please review Pre-Installation check list upon checkout.

Dimensions: Width: 440mm, Depth: 560mm, Height: 750mm
