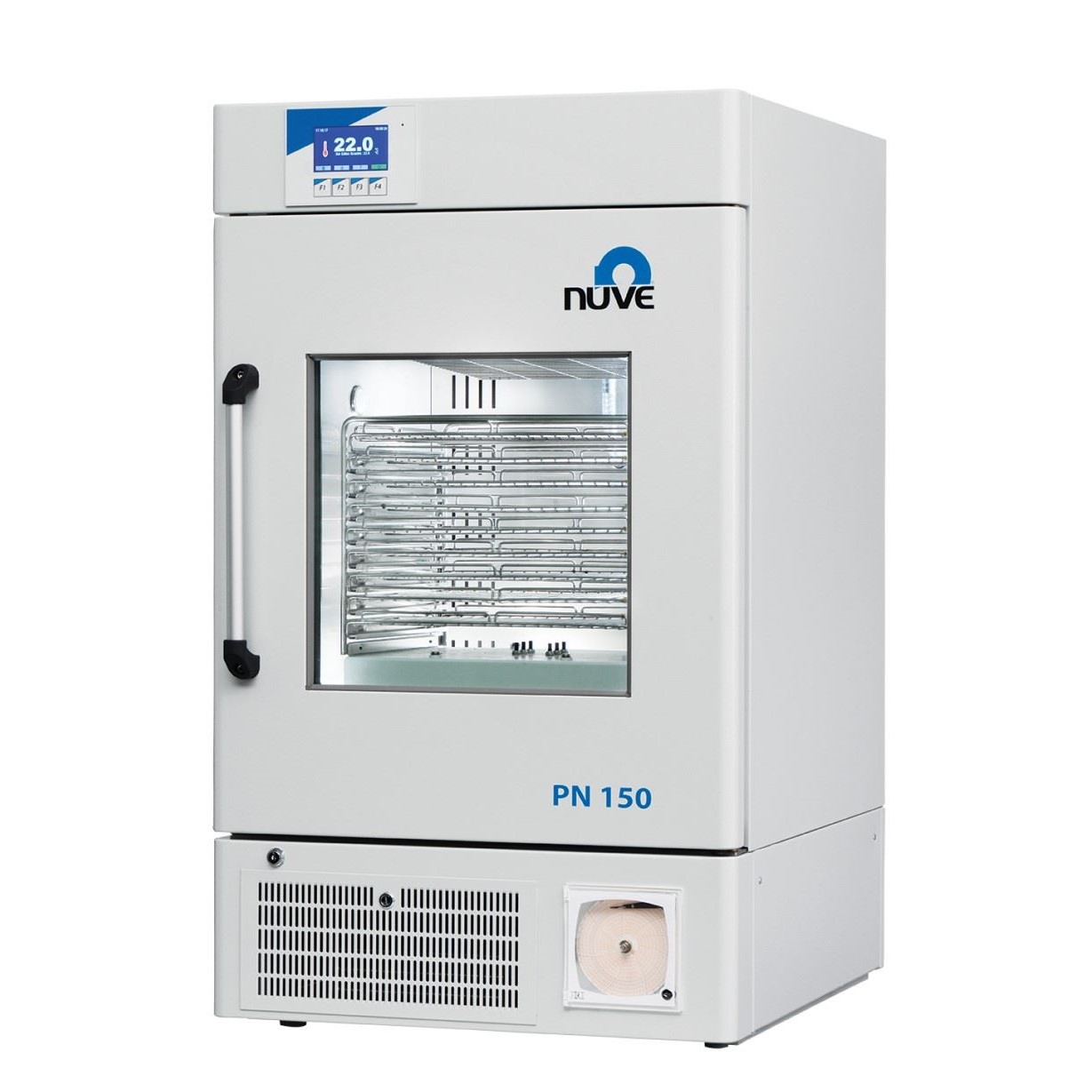

Laboratory Equipment PN 150 Platelet Incubators PN 150

Chamber Volume, Litres 150 Platelet Bag Capacity 54 bags (with 1 x PS 54)
SKU: PN 150
Manufacturer: Nuve
Pack Size: 1



Designed to accept PS 54 Platelet Agitator, PN 150 Platelet Incubator has been built to provide long service to blood banks. Their rugged construction in stainless steel is combined with high density polyurethane insulation for platelet protection. Efficient cooling and fast temperature recovery after door opening optimize this protection.

Observation of the platelet bags is enhanced by a triple glass window with anti-fogging inner glass, while the outer panel prevents degradation of the platelets by UV rays. Lockable door and password protected control system ensure that only authorized personnel can add or remove bags and change settings.

PN 150 Platelet Incubator is powered by N-Smart™ which has internal memory storing temperatures records up to ten years with one hour intervals as digitally and graphically. By means of NuveCloser™ software, the PN series Platelet Incubators can be controlled via internet. Sample safety is given top priority with audible, visual, open door and optional NuveWarn™ remote alarm system, plus an optional AlerText™ text message to multiple mobile phones. Sending e-mail up to five e-mail addresses in case of any failure is offered as standard Alarms are independently powered by a permanently recharged battery.



PLATELET INCUBATOR
Gross Volume: 188 liters
Net Volume: 146 liters
Includes 1 pc PS 54 Platelet Agitator
Temperature range: 20°C to 35°C
Digital display with 0,1°C resolution
Interior chamber: Stainless steel
Door window with triple glass
Programmable microprocessor N-Smart™ control system
Password protected control system
4,3'' LCD colourful display for maximum information
5 language options (Turkish, English, French, Spanish, Russian)
Full traceability by keeping the operating parameters digitally and graphically in the memory
Internal memory for 10 years data
Colour changing display in case of error
Equipped with NuveCom™ communication unit
Equipped with Wi-Fi connection for N-Mobile™
USB port to store the temperature records on memory stick
World-wide access via ethernet port with NuveCloser™
Rapid support by sending e-mails with the details of the failure
RS 232 port for PC or AlerText™
High density injected polyurethane insulation
Door with key lock
Perfect air tightness with magnetic gasket
Alarm system for high and low temperature power failure
Temperature sensor failure and open door
Re-chargeable battery for display and alarm system
Remote alarm outlet
Standard outlet for central alarm system
Chamber dim. (WxDxH): 535x545x645 mm
Int. dim. (WxDxH): 535x545x500 mm
Ext. dim. (WxDxH): 675x810x1135 mm
230 V - 50 Hz





 FACTORY FITTED OPTION
PN XXX YBattery operated 7-day chart recorder
 OPTIONS
A 08 195NuveCloser™ Software for PC (operates through internet)
A 08 231NuveCloser™ Multi Software (connection up to 15 devices)
A 08 191AlerText™ GSM alarm module
K 13 009NuveWarn™ remote alarm system with 10 m. cable
 ACCESORIES
A 08 070Pen for chart recorder
A 08 073Diagram paper for chart recorder (pack of 100)
PS 54PLATELET AGITATOR
 Capacity: 54 pcs platelet bags
 Number of shelves: 9 pcs.
 Shaking speed: 60 stroke/min
 Alarm system: Audible
 Ext. Dim. (WxDxH): 437x390x413 mm
 230 V - 50/60 Hz



PN 150 Brochure Download:


Attribute nameAttribute value
Pack Size1
Volume In Litres150L
