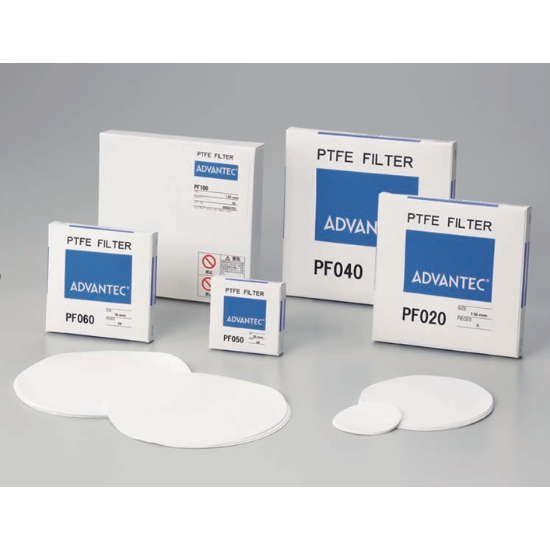

Picture of PTFE Filters PF-020 90mm , PTFE 2um, Box x 10

PTFE Filters PF-020 90mm , PTFE 2um, Box x 10

PTFE Filters PF-020 90mm , PTFE 2um, Box x 10

SKU: PF-020 90mm

Manufacturer: Advantec

Pack Size: 10

PTFE Filters

Pure PTFE fibers are sintered to improve handling characteristics and to minimize fiber slough-off for minimal downstream contamination
Hydrophobic
Porosity: High air permeability with minimal pressure drop
Operating temperature range: -120°C~260°C
Autoclavable

APPLICATIONS

Filter hot oils and strong solvents
Venting air and gases
Collection of airborne particulates

Grade	Weight (g/m2)	Thickness (mm)	Porosity (%)	Pressure Drop (kPa at 5cm/sec.)	Pressure Drop (psi)	Collection Efficiency (%, 0.3µm DOP)	Nominal Rating (µm)
PF100	500	1.00	77	0.059	0.00856	70	10
PF060	240	0.50	75	0.069	0.01001	75	6
PF050	210	0.36	73	0.26	0.0377	85	5
PF040	500	0.95	75	0.21	0.03045	95	4
PF020	500	0.54	54	1.6	0.232	99.9	2

Size	PF100	PF060	PF050	PF040	PF020
Size	Quantity/package
55 – 90 mm diameter discs	20	20	20	10	10
110 – 150 mm diameter discs	10	10	10	5	5
300 x 300 mm sheets	5	5	5	5	5

Discs: Available in the following diameters (mm): 55, 70, 90, 110, 125, 150
Sheets: Available in 300 x 300 mm sheets
Additional sizes available upon request

Attribute name	Attribute value
Pack Size	10
Grade	PF-020
Diameter	90mm
