OS40-Pro, LCD Digital Enhanced Overhead Stirrer, Max. stirring quantity 40L, 8033200100

OS40-Pro, LCD Digital Enhanced Overhead Stirrer, Max. stirring quantity 40L, include18900071
SKU: 8033200100
Manufacturer: Dragon Lab
Pack Size: 1

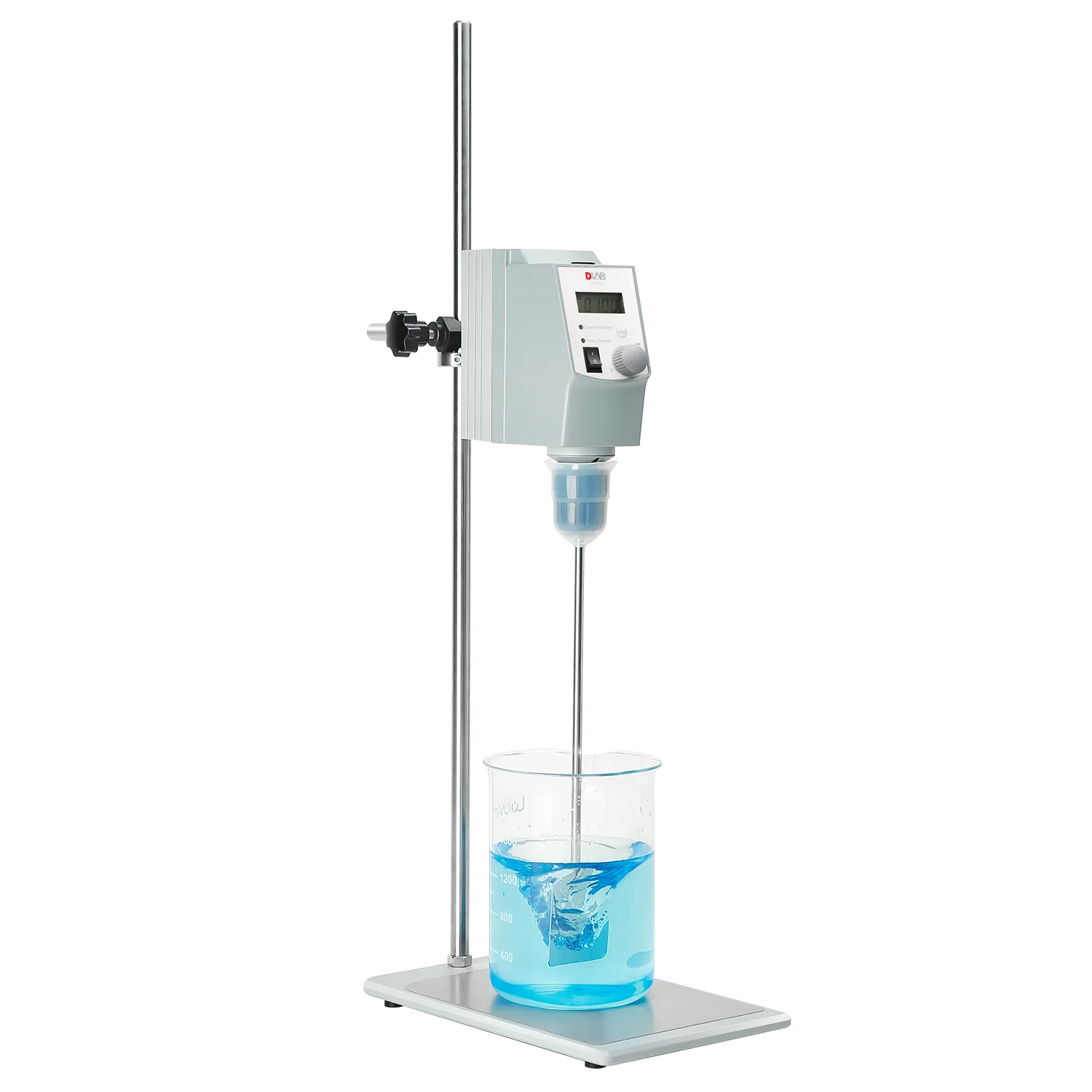

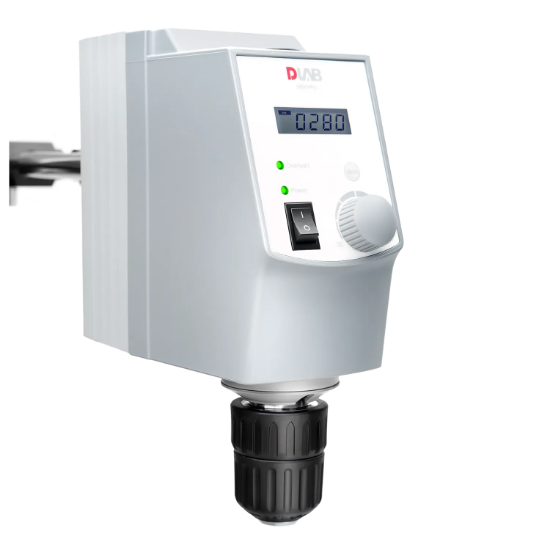

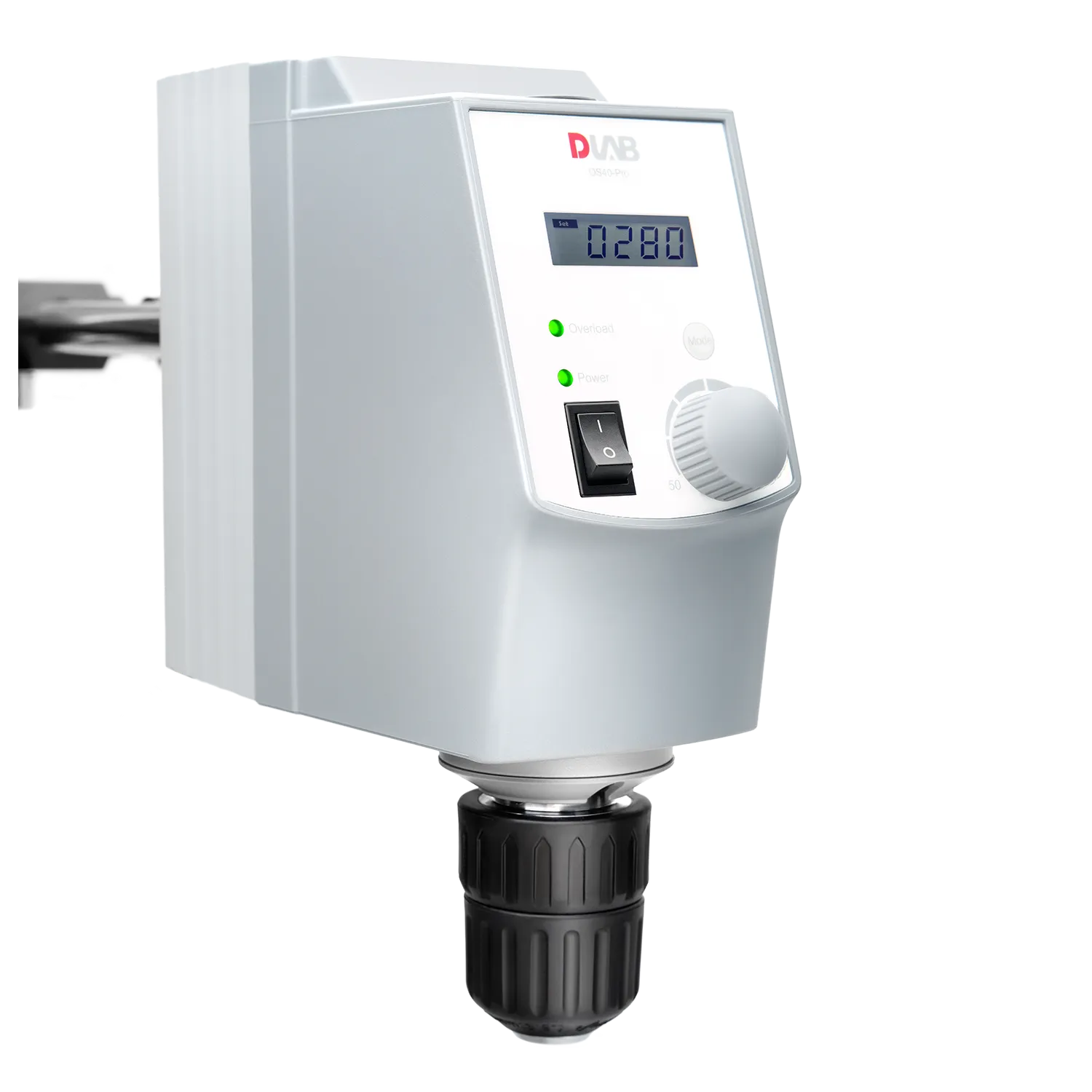

OS40-Pro LCD Digital Overhead Stirrer
  • Stirring paddle “top- cross" design, easy to replace the container
  • LCD display of set and actual speed, torque
  • Spillage and overload protection safety circuits
  • Brushless DC motor for long life, maintenance free
  • Self - locking drill chuck, tools free
  • Start/run smoothly, prevent sample splatter or overflow
  • Constant speed despite viscosity change of the sample
  • Silicone cover protecting drill chuck from erosive vapor
PRODUCT PARAMETERS
Cat.No. 8033200100
Max. stirring quantity[H2O] 40L
Speed range 50-2200rpm
Speed display accuracy ±3rpm
Max. torque 60N·cm
Viscosity max. 50000mPa·s
Motor type Brushless DC motor
Speed display LCD
Torque display LCD
Overload protection display LCD
Data interface RS232
Chuck clamp range diameter 0.5-10mm
Protection class IP21
Motor input power
120W
Motor output power 100W
Power 130W
Voltage,Frequency 100-240V, 50/60Hz
Dimension[WxHxD] 83 x 220 x 186mm
Weight 2.8kg
Permissible ambient temperature 5-40℃







Attribute name Attribute value
Pack Size 1
Type LCD Display
Model OS40-Pro
Speed range 50-2200rpm
Max. stirring quantity 40L
