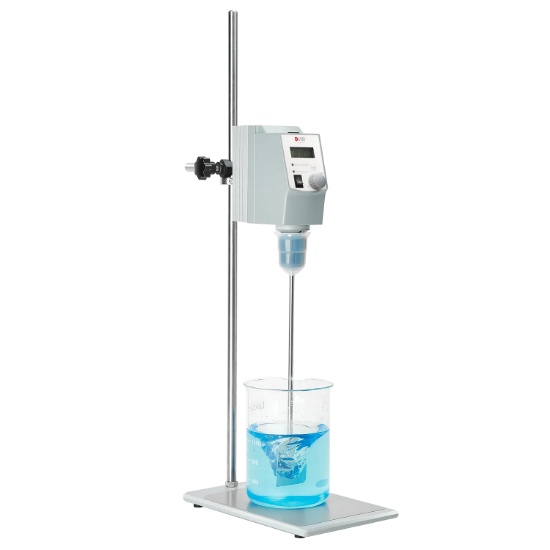

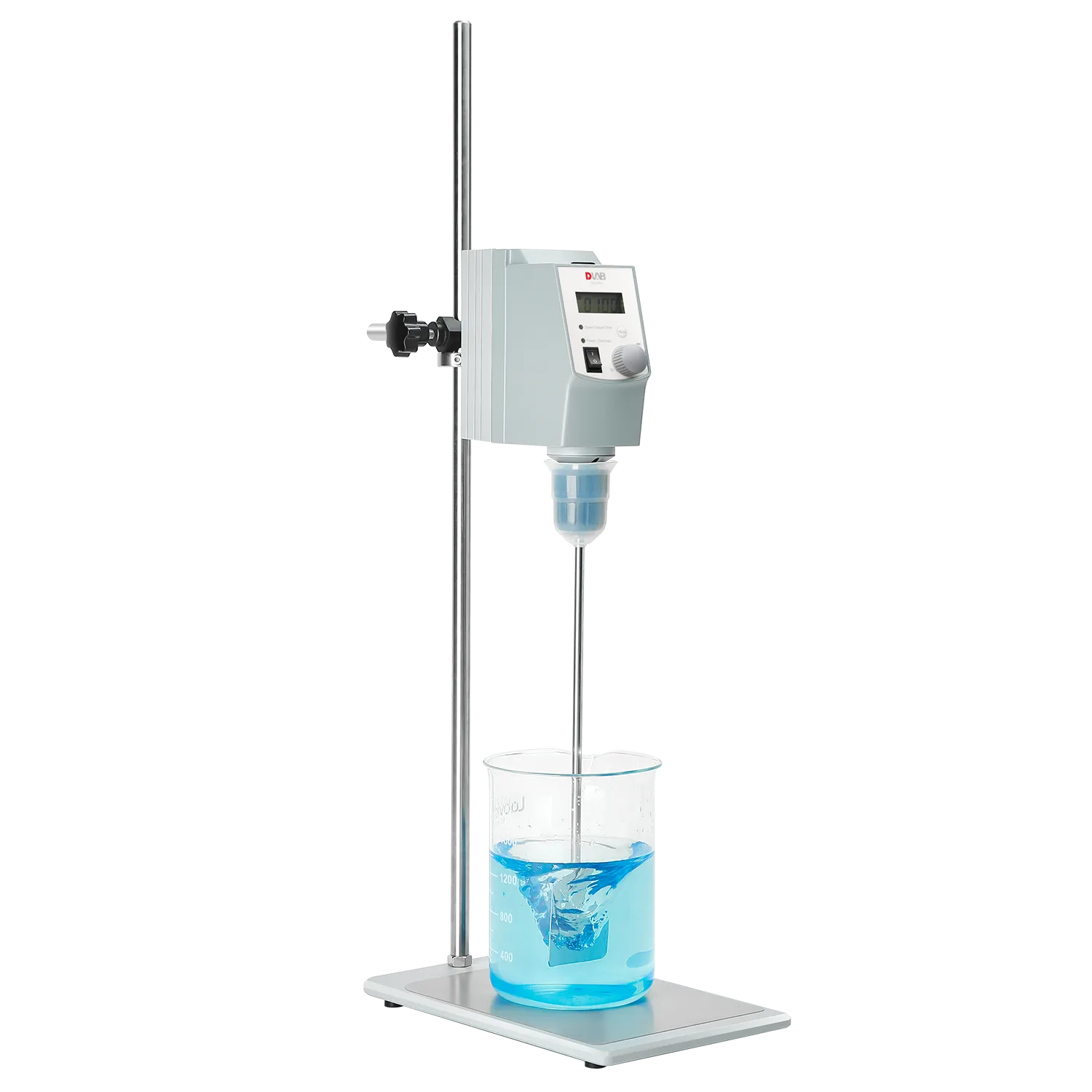

OS40-Pro Package, LCD Digital Enhanced Overhead Stirrer, 8033200100+18900605

OS40-Pro Package, LCD Digital Enhanced Overhead Stirrer, Max. stirring quantity 40L, include 18900071 ， with18900605 free
SKU: 8033200100+18900605
Manufacturer: Dragon Lab
Pack Size: 1

OS40-Pro Package:

LCD Digital Enhanced Overhead Stirrer, Max. stirring quantity 40L, include 18900071 ， with18900605 free

18900071: Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 316L stainless steel

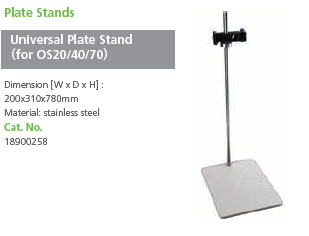

18900605: Universal plate stand(WxD: 20x31cm), including support holder(H: 78cm) and fixing device Grey，two-section, combined rod

-------------------------------------------------

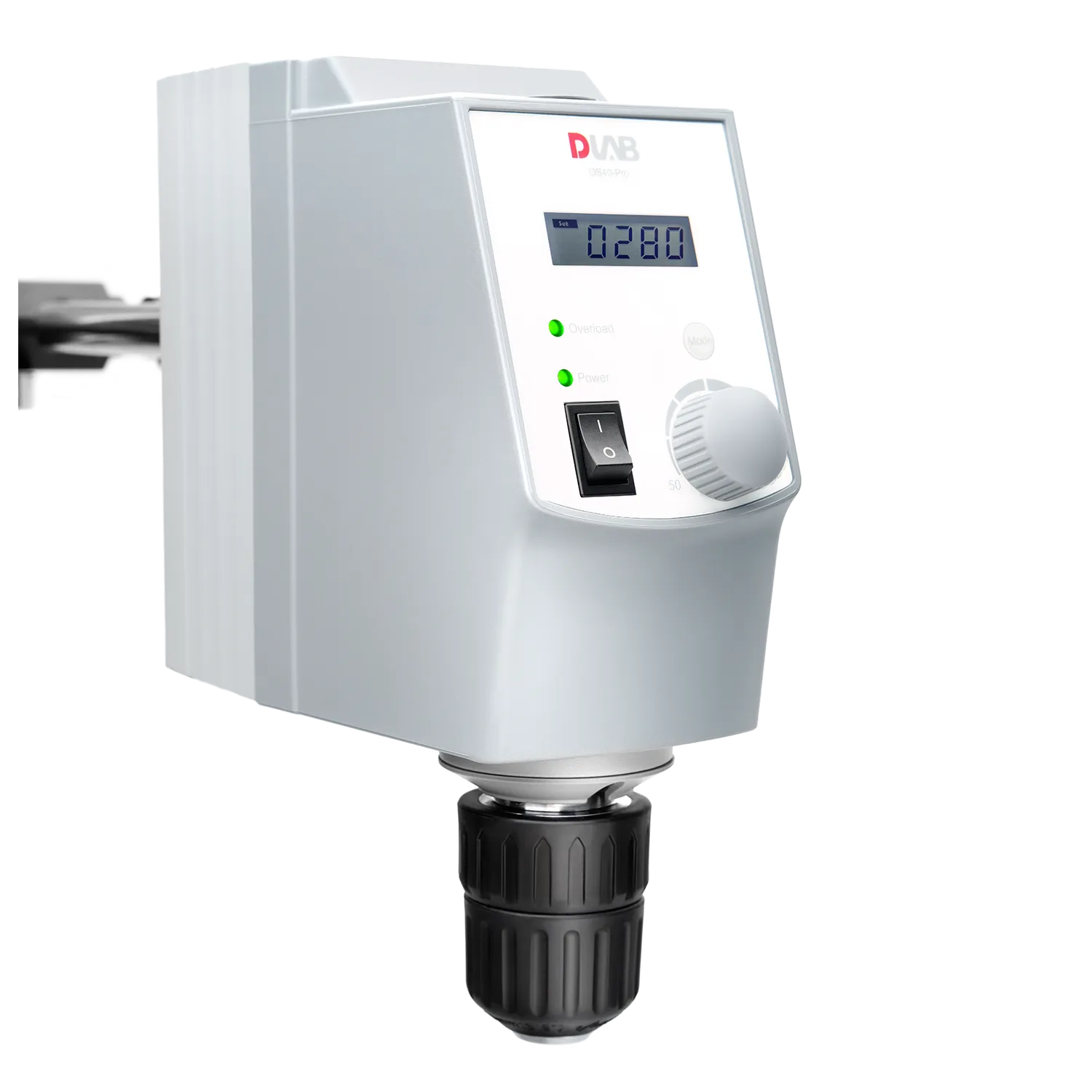

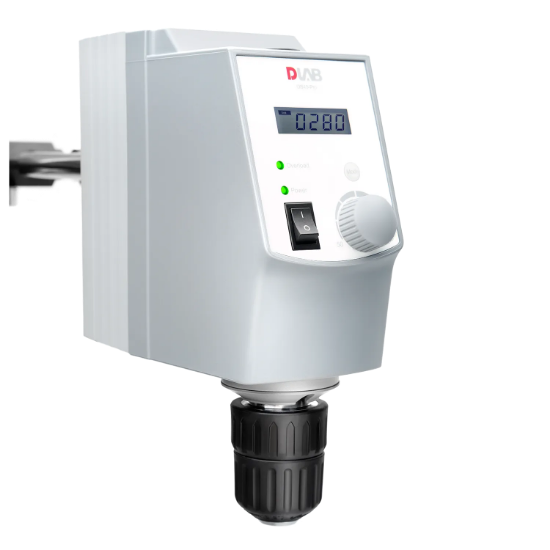

OS40-Pro LCD Digital Overhead Stirrer
  • Stirring paddle “top- cross" design, easy to replace the container
  • LCD display of set and actual speed, torque
  • Spillage and overload protection safety circuits
  • Brushless DC motor for long life, maintenance free
  • Self - locking drill chuck, tools free
  • Start/run smoothly, prevent sample splatter or overflow
  • Constant speed despite viscosity change of the sample
  • Silicone cover protecting drill chuck from erosive vapor
PRODUCT PARAMETERS
Cat.No.8033200100
Max. stirring quantity[H2O]40L
Speed range50-2200rpm
Speed display accuracy±3rpm
Max. torque60N·cm
Viscosity max.50000mPa·s
Motor typeBrushless DC motor
Speed displayLCD
Torque displayLCD
Overload protection displayLCD
Data interfaceRS232
Chuck clamp range diameter0.5-10mm
Protection classIP21
Motor input power
120W
Motor output power100W
Power130W
Voltage,Frequency100-240V, 50/60Hz
Dimension[WxHxD]83 x 220 x 186mm
Weight2.8kg
Permissible ambient temperature5-40℃



Attribute nameAttribute value
Pack Size1
TypeLCD Display
ModelOS40-Pro
Speed range50-2200rpm
Max. stirring quantity40L
