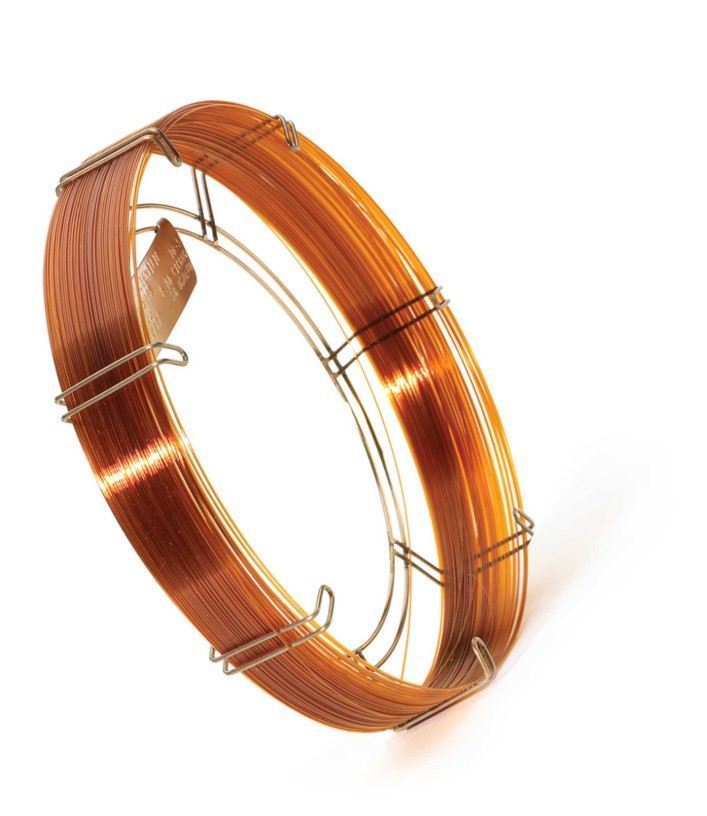

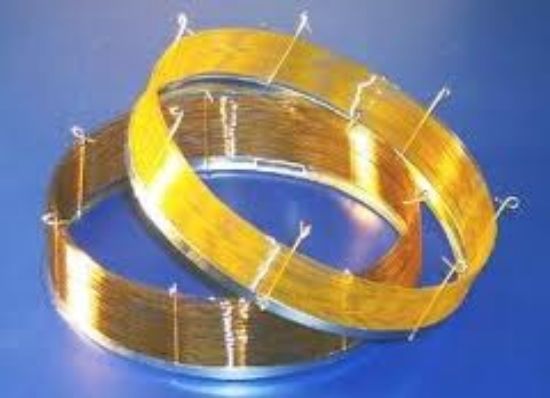

GC Column OPTIMA-5 HT. 0.25 mm ID. 0.25 µm. 15m 726106.15

Capillary column OPTIMA-5 HT ID: 0.25 mm, film thickness: 0.25 µm length: 15 m, pack of 1
SKU: 726106.15
Manufacturer: Machery Nagel



Features
Max. temperature for isothermal operation 380 °C, max. temperature for short isotherms in a temperature program 400 °C
Chemically bonded, cross-linked silarylene phase, polarity index according to 5 % phenyl – 95 % methylpolysiloxane
Low bleed column, nonpolar phase, ideal for MS detectors, can be rinsed with solvents
Similar phases: DB-5HT, VF-5HT, HT-5, XTI-5HT, ZB-5HT
USP G27 / G36
Recommended application: for simulated distillation, hydrocarbon, fuel, oil analysis, high boiling analytes
For applications click here.



Column stability for the example of a separation of 10 components over 180 hours at 380 °C isothermal
Column: OPTIMA® 5 HT,
15 m x 0.25 mm ID,
film 0.1 µm

Peaks:
1. Undecane
2. Dodecane
3. Octanol
4. Dimethylaniline
5. Decylamine
6. Methyl decanoate
7. Methyl undecanoate
8. Henicosane
9. Docosane
10. Tricosane
Attribute nameAttribute value
TypeGC column
PhaseOPTIMA-5 HT
Diameter0.25mm
Length15m
Film thickness0.25 µm
