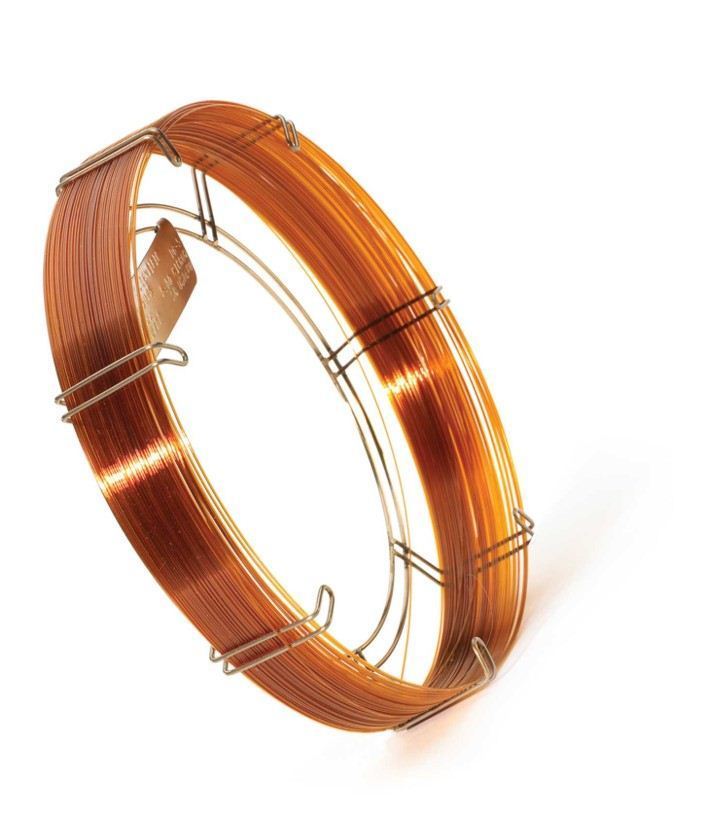

GC Column OPTIMA-5 HT. 0.25 mm ID. 0.1 µm. 30m 726102.30

Capillary column OPTIMA-5 HT ID: 0.25 mm, film thickness: 0.1 µm length: 30 m, pack of 1

SKU: 726102.30

Manufacturer: Machery Nagel

Features

	Max. temperature for isothermal operation 380 °C, max. temperature for short isotherms in a temperature program 400 °C Chemically bonded, cross-linked silarylene phase, polarity index according to 5 % phenyl – 95 % methylpolysiloxane Low bleed column, nonpolar phase, ideal for MS detectors, can be rinsed with solvents Similar phases: DB-5HT, VF-5HT, HT-5, XTI-5HT, ZB-5HT USP G27 / G36
	Recommended application: for simulated distillation, hydrocarbon, fuel, oil analysis, high boiling analytes For applications click here.

Column stability for the example of a separation of 10 components over 180 hours at 380 °C isothermal
Column: OPTIMA® 5 HT, 15 m x 0.25 mm ID, film 0.1 µm Peaks: 1. Undecane 2. Dodecane 3. Octanol 4. Dimethylaniline 5. Decylamine 6. Methyl decanoate 7. Methyl undecanoate 8. Henicosane 9. Docosane 10. Tricosane

Attribute name	Attribute value
Type	GC column
Phase	OPTIMA-5 HT
Diameter	0.25mm
Length	30m
Film thickness	0.10 µm
