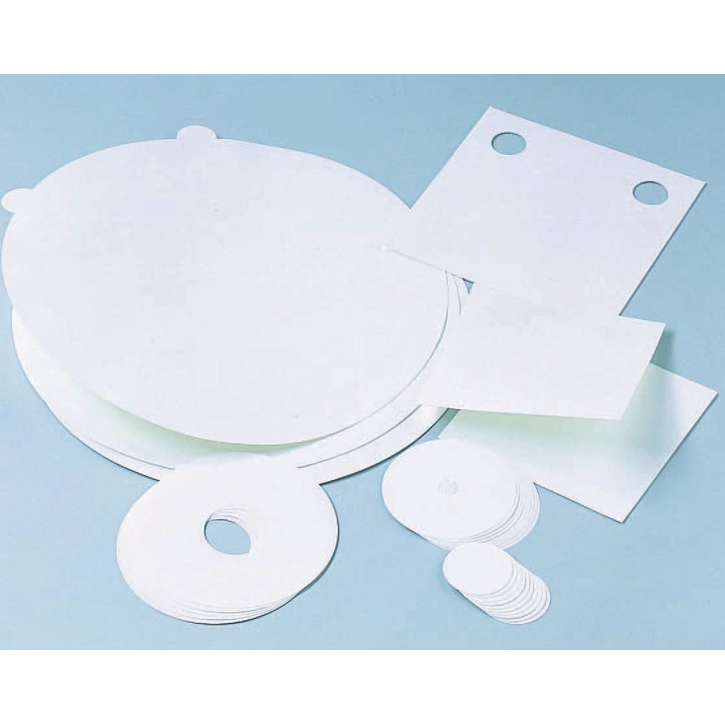

High Viscosity Fluid Filter Papers
- Thick, high and low-density filter papers designed for fast filtration of viscous fluids
Grades
No. 63 • 1 mm thick filter paper; standard type for a variety of filtration applications

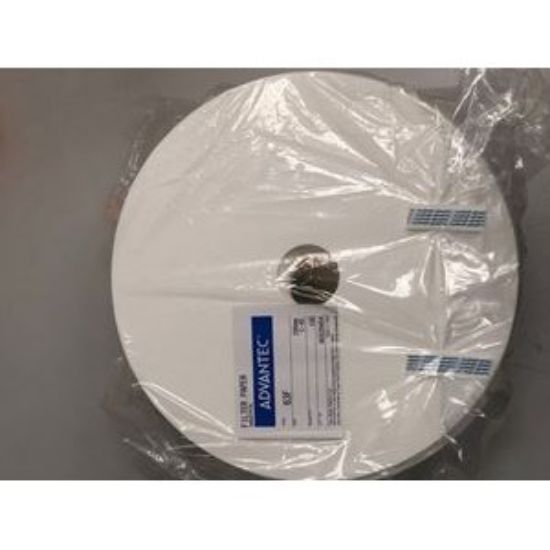

No. 63F • 1.35 mm thick, high density filter for increased particle reten- tion than No. 63
No. 63G • For filtration of high viscosity liquids with fine particle sus pensions; can be used in high pressure systems
No. 60, 65, 462 • Thinner, lower density filter papers for gentle filtra- tion of high viscosity fluids
Grade | High Viscosity Filter Paper | High Purity Filter Paper |
No. 63 | No. 63F | No. 63G | No. 60 | No. 65 | No. 462 | No. 5A | No. 5B | No. 5C |
Weight (g/m²) | 350 | 525 | 525 | 125 | 143 | 168 | 97 | 108 | 118 |
Thickness (mm) | 1.00 | 1.35 | 1.35 | 0.56 | 0.55 | 0.53 | 0.22 | 0.21 | 0.22 |
Flow Time (s)*¹ | 26 | 25 | 90 | 7 | 9 | 15 | 60 | 195 | 570 |
Burst Strength (kPa)*² | 196 | 139 | 218 | 49 | 59 | 98 | 61 | 75 | 92 |
Nominal Rating (µm)*³ | 4 | 3 | 1.5 | 25 | 15 | 8 | 7 | 4 | 1 |
Surface | Smooth |
Color | White |
Max. Operating Temperature (°C) | 120 |
