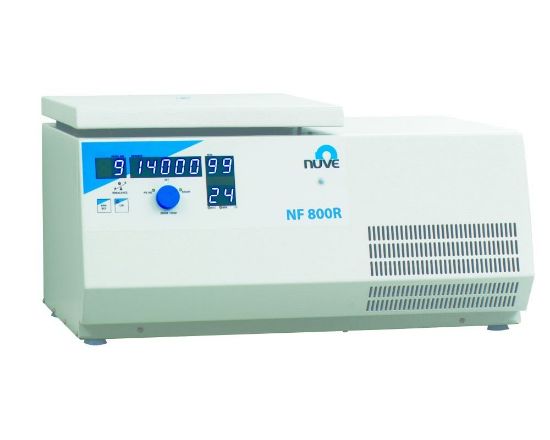

Picture of Laboratory Equipment NF 800R Centrifuge NF 800R

Laboratory Equipment NF 800R Centrifuge NF 800R

NF 800 Medium Capacity Refrigerated Centrifuge
SKU: NF 800R
Manufacturer: Nuve
Pack Size: 1



The multi-purpose NF 800/800R bench top centrifuges respond to the requirements of laboratories carrying out a variety of applications. By combining a range of accessories and speeds in a single machine, they reduce the need for bench space and substantially reduce investment cost.

NF 800/800R are ventilated and refrigerated units offering up to 4x200 ml and over 3,000xg in swing-out rotor plus over 18,400xg for a microtube angle rotor. Maximum angle rotor volume is 6x50 ml; a 30x 5 ml rotor provides a high capacity, low cost answer to blood analysis.,

They can spin 6 microtitre plates, have a choice of 10 acceleration and braking rates for optimum separation quality and N-Prime™ microprocessor control system for precise operation with speed, RCF and temperature (R models). The ventilated units are designed to keep temperature rise to a minimum.



Maximum speed: 4.100 rpm Swing-out / 14.000 rpm Angle
Maximum RCF: 3.045 xg Swing-out / 18.405 xg Angle
Maximum capacity: 4x200 ml Swing-out / 24x1,5/2 ml Angle
Temperature range: -9°C / +40°C (+4°C at max . speed)
N-Prime™ programmable microprocessor control system
Easy programming with one button, just turn and push
Programmable by RCF or RPM
Large bright digital display for program number, speed, time, RCF, temperature, acceleration/braking rates
10 program memories
Timer: 1 - 99 minutes and hold position
10 acceleration / 10 braking rates
Pulse function
Maintenance-free induction motor
Motorized lid locking
Safety features: Imbalance detection, lid interlock, chamber guard ring, motor
over temperature, rotor over speed, diagnostic system
Delivered without rotor
Ext. dim. (WxDxH): 770x550x415 mm
230 V - 50/60 Hz



 ACCESSORIES FOR NF 800 / 800R
A 08 062Puller for rotor removal (B 50 017)
B 50 013RA 200 Swing-out rotor 4x200 ml, 4.100 rpm, 3.045 xg
G 51 026Set of 4 buckets for RA 200
G 51 033Set of 4 buckets with sealing cap
G 51 032Set of 4 200 ml PP bottles with cap
G 51 031Set of 4 inserts 1x100 ml
G 51 030Set of 4 inserts 1x50 ml conical
G 51 028Set of 4 inserts 7x15 ml
G 51 029Set of 4 inserts 3x15 ml conical
G 51 027Set of 4 inserts 7x5/7 ml
B 50 015RS 450 Angle Rotor 30x15 ml 4.100 rpm 3.007 xg
G 03 057Adaptor for 1,5/2 ml (Ø11 mm) tubes
 (Should be ordered according to the capacity of the rotor)
G 03 014Adaptor for 13x100 mm vacuumed / non-vacuumed tubes (7 ml)
 (Should be ordered according to the capacity of the rotor)
G 03 015Adaptor for 13x75 mm vacuumed / non-vacuumed tubes (5 ml)
 (Should be ordered according to the capacity of the rotor)
B 50 014RS 24 Angle rotor 24x1,5/2 ml 14.000 rpm, 18.405 xg
A 14 005Adaptor 500 / 800 µl
A 14 006Adaptor 200 µl PCR
A 14 007Adaptor 250 / 400 / 700 µl
B 50 017RS 300 Angle rotor 6x50 ml 9.000 rpm, 9.418 xg
G 51 024Set of 6 adaptors 1x15 ml conical
G 51 025Set of 6 rubber base adaptors for 50 ml conical tubes
B 50 021MP 200 Microtitre rotor, 2x3 microplates, 4.100 rpm, 2.349 xg



NF 800R Brochure Download:


Attribute nameAttribute value
Pack Size1
Speed rangeMax Swing 4100rpm/Angle 14000 rpm
Rotor CapacitySwing 4 x200 ml, Angle 24 x1.5/2 ml
