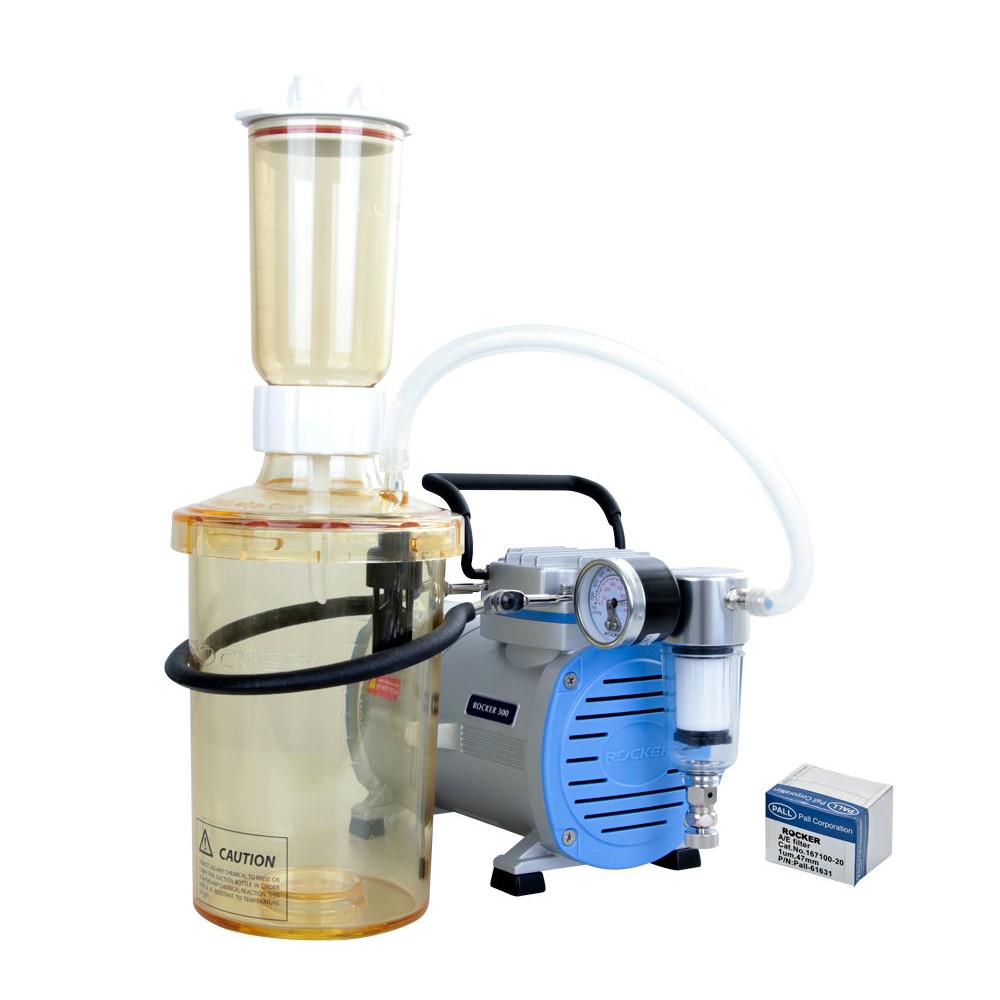

Rocker 300-LF 30-SS Vacuum Filtration System Includes
- Rocker 300 oil free vacuum pump
- LF 30 filtration set
- Glass Fiber Discs (47mm, 1μm)
- Silicone tube (1 m)
Rocker 300 Oil-free Vacuum Pump Specification
| Rocker 300: 220V/50Hz |
▸ Max. power: 60W ▸ Max. vacuum: 99 mbar abs. ▸ Max. flow rate: 20 L/min ▸ Noise level: 50 dB ▸ Hose barb: ID8 ▸ Vacuum Regulator: Yes ▸ Overflow protection: Yes ▸ Thermal protection: Yes |
Vacuum Filtration System Ordering Information
| Product Part Number | Product |
167307-11 (110V, 60Hz) 167307-22 (220V, 50Hz) | Rocker 300 – LF 30 – SS, Vacuum Filtration System, complete set includes : * Rocker 300, Oil Free Vacuum Pump * LF 30, Filtration Set * Glass Fiber Filter, 47mm, 1μm , 100/PK * Silicone Tube (1m) |
197010-30 | LF 30 47mm PES Filtration set |
Filtration System Features:
◆ Ideal for suspended solid test
The complete set of Rocker 300 – LF 30 – SS offers a total solution for suspended solid test.
◆ No air pollution, maintenance free
Rocker series pumps are piston-driven, no need for lubricant, regular oil changes and maintenance with no oil pollution.
◆ The patented spin-lock design (M381450)
The filter holder can be connected with waste bottle by patented spin-lock connection (M381450) giving a fast and stable installation without clamp.
◆ Overflow protection
Waste bottle comes with a built-in overflow proteciton to keep the filtrate from overflowing when waste bottle is full.
