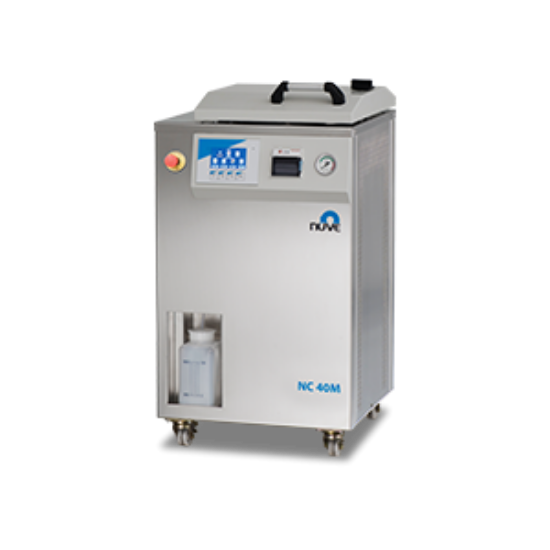

Picture of NC 90M VERTICAL LABORATORY STEAM STERILIZER POWERED BY N-Smart™

NC 90M VERTICAL LABORATORY STEAM STERILIZER POWERED BY N-Smart™

SKU: NC 90M
Manufacturer: Nuve
Pack Size: 1



Especially developed for the steam sterilization of liquid and culture media, NC 40M and NC 90M offer a flexible temperature probe can be placed in a liquid container to ensure that the required sterilization time only starts when the fluids themselves are at the temperature stated in the protocol.

With its 4,3’’ colourful display, N -Smart™ control system includes pre-set program for ease of use. Operated programs can be transferred to memory stick through USB port for traceability. By means of Wi-Fi connection and N-Mobile™ application, NC 40M and NC 90M can be traced anywhere and notification can be received instantly. A large range of safety features and self-diagnostics provide full user protection.

Cooling by forced air ventilation over chamber reduces the cooling time. A fractionated exhaust system protects fragile products such as glassware from breaking.

Careful design provides a larger flask capacity than most steam sterilizers of similar volume for the most popular flasks.



Chamber volume: 96 liters
Capacity: 24x1 liter bottles
Stainless steel chamber
Sterilization temperatures: 105°C to 135°C
Sterilization loads: Liquid and solid
Programmable microprocessor N-Smart™ control system
4,3'' LCD colourful display for maximum information
Password protected control system
5 preset programs: 2 programs for liquid, 3 programs for solid
2 custom made programs for liquid and solid
1 melting program: 60°C / 100°C
Programmable pre-heating: 40°C / 60°C
5 language options (Turkish, English, French, Spanish, Russian)
Possibility of following the operating parameters graphically
Internal memory for last 500 cycles in detail and 29.500 cycles as summary
Memory for last 100 failures
Delayed start function
Colour changing display in case of error
Equipped with NuveCom™ communication unit
Equipped with Wi-Fi connection for N-Mobile™
USB port to store the temperature records on memory stick
World-wide access via ethernet port with NuveCloser™
Rapid support by sending e-mails with the details of the failure
RS 232 port for PC or AlerText™
Process evaluation system
Comprehensive self-diagnostic system
Emergency stop button
Portable temperature sensor
Quick air-cooling system
Fractionated exhaust system
Safety valve
Chamber dim. Ø 396x750 mm
Ext. dim. (WxDxH): 670x620x1055 mm
400 V - 50/60 Hz, 3 phases+N+G



 FACTORY FITTED OPTION
NC XXMYPanel mounted thermal printer
NC 90MENuveLift™ to load/unload basket
 OPTIONS
A 08 191AlerText™ GSM alarm module
A 08 237NuveCloser™ Software for PC (operates through internet)
 ACCESSORIES FOR NC 40M
S 09 028Basket (Height: 345 mm)
S 09 027Basket (Height: 242 mm)
S 09 040Basket (Height: 160 mm)
S 09 030Basket (Height: 232mm) (Unperforated)
S 09 029Basket (Height: 345mm) (Unperforated)
 ACCESSORIES FOR NC 90M
S 09 034Basket (Height: 360 mm)
S 09 035Basket (Height: 242 mm)
S 09 041Basket (Height: 160 mm)
S 09 043Basket (Height: 242 mm) (Special for NC90ME)
S 09 036Basket (Height: 360mm) (Unperforated)
S 09 037Basket (Height: 232mm) (Unperforated)



NC 90M Brochure Download:


Attribute nameAttribute value
Pack Size1
ModelNC 90M
TypeVertical Steam Sterilizers
Capacity96L
