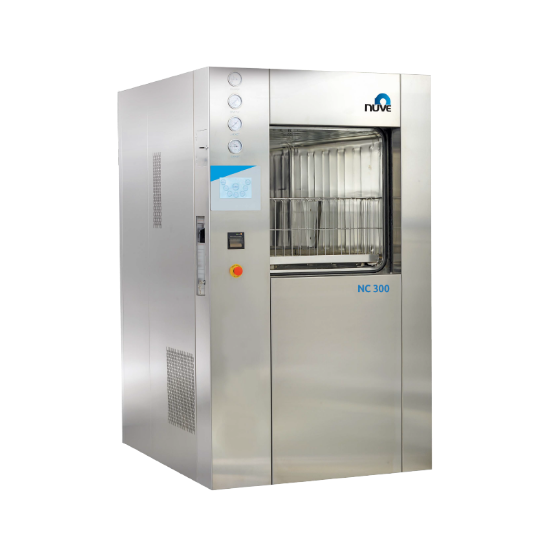

NC 300 HORIZONTAL STEAM STERILIZER   POWERED BY N-Wise™

SKU: NC 300
Manufacturer: Nuve
Pack Size: 1



Our continuous investments in research and development have enabled us to develop horizontal steam sterilizer series with innovative Air-Cooling System which reduces the water consumption during condensing steam.

The reliability, performance, ease of use and safety features of NC Series Horizontal Steam Sterilizers optimize the steam sterilization process and they are convenient for steam sterilizing packed or unpacked surgical and dental instruments, operation linen, glass, plastic, rubber and silicon materials.

8 pre-set and 50 user-defined programs enable all applications to be started in an instant. Double door versions are practical for high throughput use. A large display (with second, smaller screen on double door units) shows all parameters and messages plus offers diagnostics for servicing. A built-in printer records the cycle and an optional data interface enables the operator to keep track of all conditions through NüveCloser™ software on PC. Operated programs can be transferred to memory stick through USB port for traceability. By means of Wi-Fi connection and N-Mobile™ application, NC series horizontal steam sterilizers can be traced anywhere and notification can be received instantly. A large range of safety features and self-diagnostics provide full user protection.

Double door versions are ideal for central sterilization centres having clean and sterile sides.

Chamber volume: 299 liters
Capacity for STU: 4
Sterilization Temperatures: 121°C / 125°C / 134°C / 136°C
N-Wise™ microprocessor control sytem
800x480 pixels 7'' Colourful touch screen
Preset programs: 7 standard, 1 drying and 1 liquid in special programs
Memory for 50 custom programs
Memory for last 1000 cycles
Standart NuveCom™ communication unit
Equipped with Wi-Fi connection for N-Mobile™
World-wide access via ethernet port
Optional AlerText™ GSM alarm module
Stand-by position
USB port to store data on memory stick
Password protected menu access
Thermal printer
Test programs: Vacuum Test and Bowie&Dick
Process evaluation system
Comprehensive self-diagnostic system
Chamber made of 316L stainless steel
Generator made of 316L stainless steel
Outer body made of 304 stainless steel
Innovative air-cooling for steam condensation
Automatic door operating with pneumatic system
Automatic water feeding system
Emergency stop button
Standart RS 485 connection for PC
Standard accessories:4 pcs. STU with carrier
Water tank
Int. dim. (WxDxH):635x722x655 mm
Ext. dim. (WxDxH): 1140x1290x1910 mm
400 V - 50 Hz, 3 phases+N+G



 OPTIONS

A 08 192AlerText™ GSM alarm module
A 08 236NuveCloser™ Software for PC (operates through internet)

 ACCESSORIES

A 08 097Loading cart NC 300
A 08 098Loading cart NC 430
A 08 081Loading cart NC 570
A 08 107Loading cart NC 710
A 08 080Water softening unit
A 08 102Air compressor 10 bar, 50 lt.



NC 300 Brochure Download:


Attribute nameAttribute value
Pack Size1
ModelNC 300
TypeHorizontal Steam Sterilizers
Capacity299L
