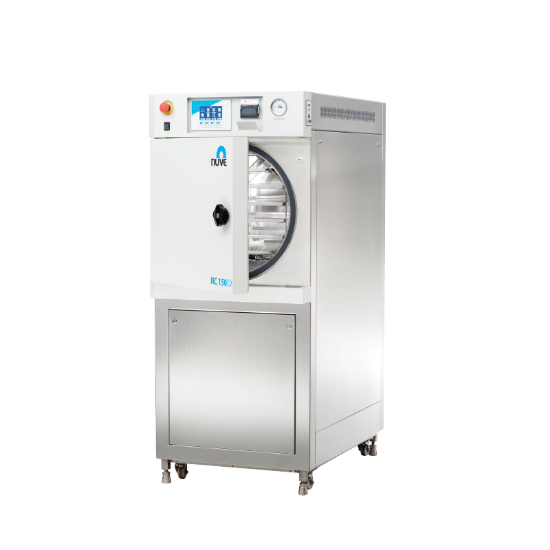

Picture of NC 150D HORIZONTAL STEAM STERILIZER WITH DOUBLE DOOR  POWERED BY N-Smart™

NC 150D HORIZONTAL STEAM STERILIZER WITH DOUBLE DOOR  POWERED BY N-Smart™

SKU: NC 150D
Manufacturer: Nuve
Pack Size: 1



NC 150/150D steam sterilizer is ideal for the medium size sterilization centres for the sterilization of packed or unpacked surgical and dental instruments, operation linen, glass, plastic, rubber and silicon materials.

NC 150/150D is powered by N-Smart™ control system. 7 preset programs and 12 custom made programs make the sterilization easier for the users. The traceability is the important issue for the sterilization and N-Smart™ has internal memory up to 500 last cycles for that purpose.

While sterilization quality matching the needs of EN 285 European Standard for Large Steam Sterilizers, the instruments conform to t Medical Devices and Pressure Equipment Directives.

Double door version NC 150D is ideal for the sterilization centres which has separated clean and sterile areas.

Chamber volume: 150 liters
Stainless steel chamber
Sterilization temperatures: 121°C / 125°C / 134°C / 136°C
Programmable microprocessor N-Smart™ control system
4,3'' LCD colourful displays for maximum information on clean and dirty side
Password protected control system
7 preset programs: Textile, Universal, Prion, Quick, Rubber, Sensitive, Gravity
10 custom made programs + Liquid and drying programs
2 test programs: Vacuum test - Bowie&Dick/Helix test
5 language options (Turkish, English, French, Spanish, Russian)
Possibility of following the operating parameters graphically
Internal memory for last 500 cycles in detailsand 29.500 cycles as summary
Memory for last 100 failures
Colour changing display in case of error
Equipped with NuveCom™ communication unit
Equipped with Wi-Fi connection for N-Mobile™
USB port to store the temperature records on memory stick
World-wide access via ethernet port with NuveCloser™
Rapid support by sending e-mails with the details of the failure
RS 232 port for PC or AlerText™
Thermal printer
Process evaluation system
Comprehensive self-diagnostic system
Emergency stop button
Fractionated pre-vacuum system
Built-in steam generator
Maintenance free diaphragm type vacuum pump
Inflated gasket by internal compressor
HEPA filter at air intake line
Safety valve
Delivered with shelf carrier and 6 shelves (4 pc. 420x740  mm, 1 pc. 275x740  mm, 1 pc. 330x740  mm)
Chamber dim. Ø 496x777  mm
Ext. dim. (WxDxH): 680x1120x1558  mm
400 V - 50/60 Hz, 3 phases+N+G



 OPTIONS

A 08 191AlerText™ GSM alarm module
A 08 237NuveCloser™ Software for PC (operates through internet)

 ACCESSORIES

A 08 225Water softening unit
A 08 209Loading cart for shelf and STU carrier
A 08 215STU carrier and 1 pc. STU
A 08 233Sealed sterilization pack carrier



NC 150D Brochure Download:


Attribute nameAttribute value
Pack Size1
ModelNC 150D
TypeHorizontal Steam Sterilizers
Capacity150L
