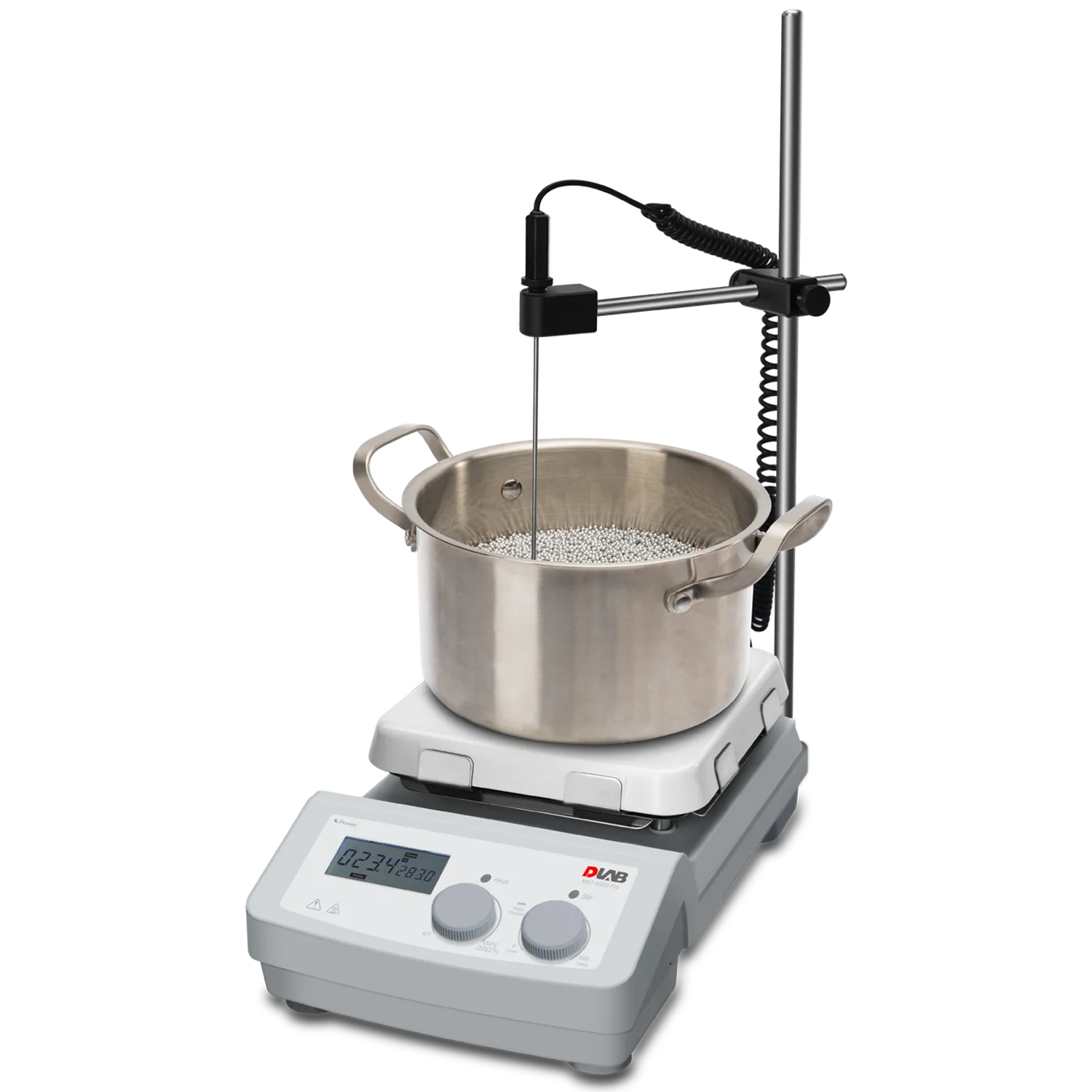

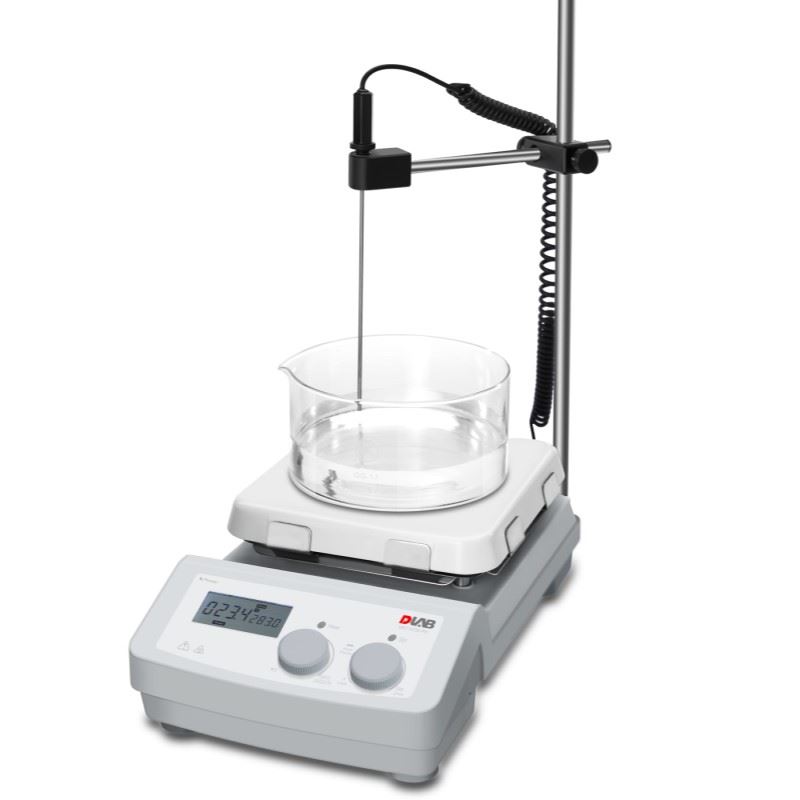

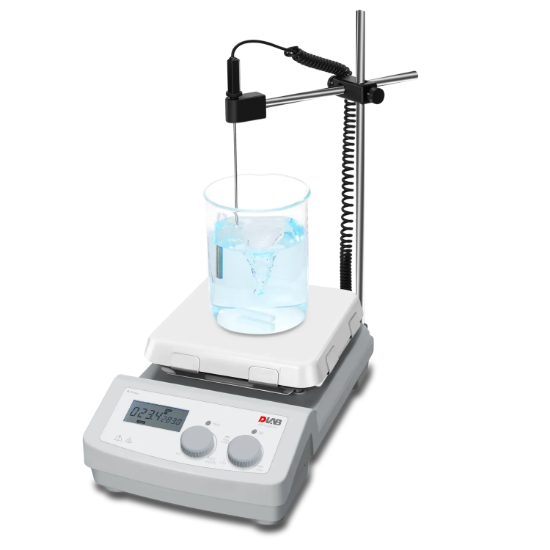

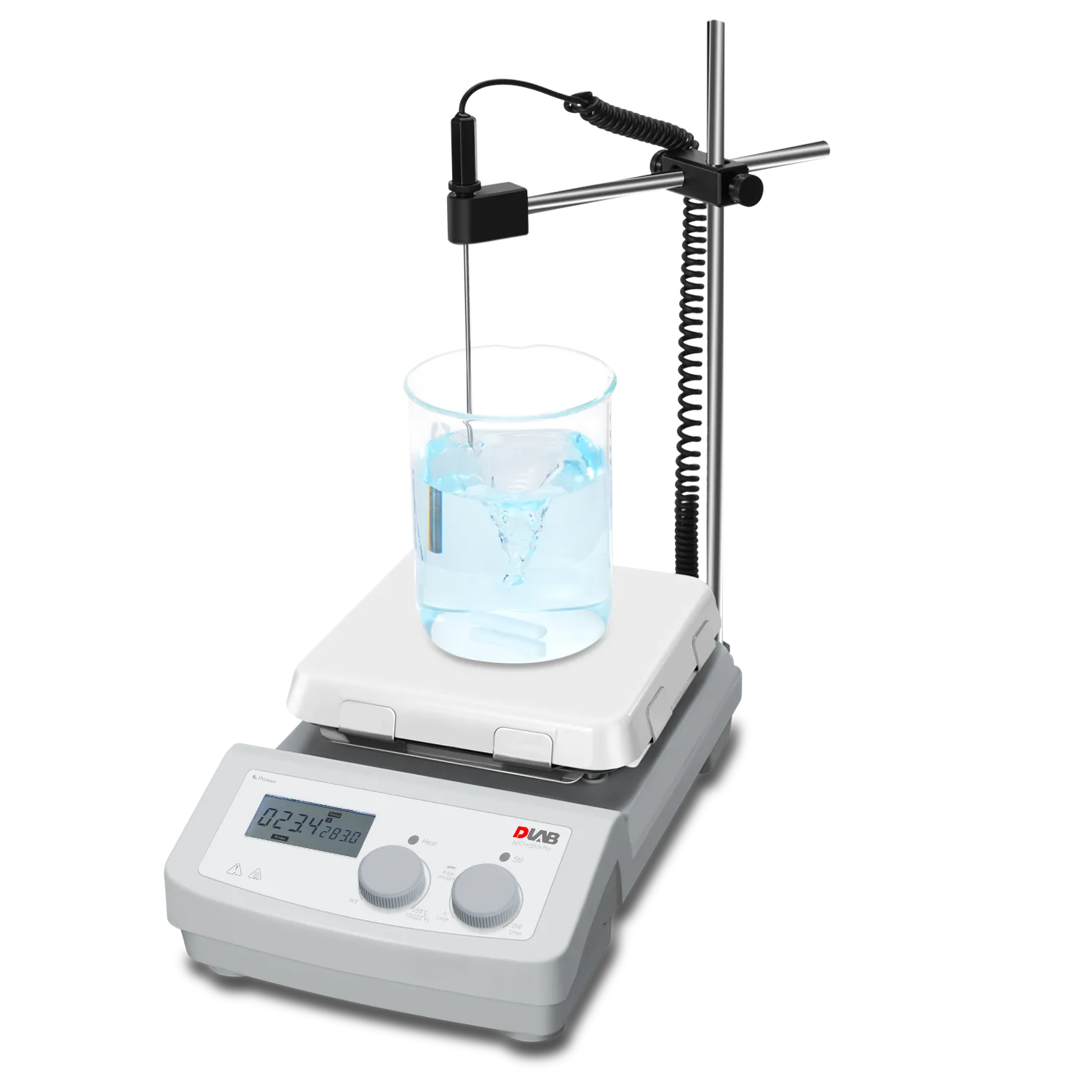

MS7-H550-Pro, Hotplate Magnetic Stirrer - 550°C 8030122111

LCD Digital 7’’ Square Hotplate Magnetic Stirrer,glass ceramic hotplate,heating temperature up to 550°C
SKU: 8030122111
Manufacturer: Dragon Lab
Pack Size: 1

Key Features

•   LCD display for precise monitoring of speed and temperature

•   Built-in PID controller ensures safe heating of the medium with overheating protection

•   Max. heating plate temperature 550°C

•   Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer

•   External temperature  control  is  possible by  connecting  the temperature sensor(PT1000) with an accuracy at ±0.2°C

•   Digital speed controlling, max. speed at 1500rpm

•   Outstanding brushless DC motor enables more stirring power

•   Two rotating knobs enable easy adjustment of speed and temperature

•   The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off

•   Remote function provides PC control and data transmission



SpecificationsMS7-H550-Pro
Work plate Dimension [W x D]184x184mm (7 inch)
Work plate materialGlass ceramic
Motor typeBrushless DC motor
Motor rating input18W
Motor rating output10W
Power1050W
Heating output1000W
Voltage100-120/200-240V  50/60Hz
Stirring positions1
Max. stirring quantity, [H2O]20L
Max. magnetic bar[length]80mm
Speed range100-1500rpm
resolution ±1rpm
Speed displayLCD
Temperature displayLCD
Heating temperature rangeRoom Temp.-550°C,increment 1°C
Temperature  control accuracy±1 °C (<100°C) ±1%(>100°C)
Overheating protection580°C
Temperature  display accuracy±0.1°C
External  temperature sensorPT1000 (accuracy ±0.2)
"Hot" warning50°C
Data connector RS232
Protection classIP21
Dimension [WxDxH]215x360x112mm
Weight5.3kg
Permissible ambient temperature and humidity5-40°C, 80%RH



Cat. No.P/NDescriptionsPower supply
8030122111MS7-H550-ProLCD Digital 7’’ Square Hotplate Magnetic Stirrer,glass ceramic hotplate,heating temperature up to 550°C,with PT1000 for free (18900016),need to buy support clamp 18900017USA plug,100V-120V/50Hz/60Hz
Cn plug,200V-240V/50Hz/60Hz
Euro plug,200V-240V/50Hz/60Hz
UK plug,200V-240V/50Hz/60Hz



Accessories
Cat. No.P/NDescriptions
18900002MS 135.2Red quarter pie, 11 holes,4 ml reaction vessel,Ø15.2mm,20mm depth, used with MS135.1 and MS 135.8,suitable for MS-H-Pro+,MS7-H550-Pro, MS7-H550-S
18900003MS 135.3Purple quarter pie, 4 holes,20 ml reaction vessel,Ø28mm,24mm depth, used with MS135.1 and MS 135.8 ,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S
18900004MS 135.4Blue quarter pie, 4 holes, 30 ml reaction vessel,Ø28mm,30mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S
18900005MS 135.5Black quarter pie, 4 holes, 40 ml reaction vessel,Ø28mm,43mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S
18900048MS 135.6Green quarter pie,6 holes, 8ml reaction vessel,Ø17.8mm,26mm depth, used with MS135.1 and MS135.8,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S
18900049MS 135.7Golden quarter pie,4 holes, 16ml reaction vessel,Ø21.6mm,31.7mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS7-H550-Pro and MS7-H550-S
18900006MSBAR10Stirrer bar(10mm x 6mm),1pc/pk
18900007MSBAR15Stirrer bar(15mm x 8mm),1pc/pk
18900008MSBAR20Stirrer bar(20mm x 8mm),1pc/pk
18900009MSBAR25Stirrer bar(25mm x 8mm),1pc/pk
12500005MSBAR30Stirrer bar(30mm x 6mm),1pc/pk
18900011MSBAR40Stirrer bar(40mm x 8mm),1pc/pk
12500004MSBAR50Stirrer bar(50mm x 8mm),1pc/pk
18900013MSBAR65Stirrer bar(65mm x 8mm),1pc/pk
18900014MSBAR80Stirrer bar(80mm x 13mm),1pc/pk
18900016PT1000-ATemperature sensor for digital hotplate models,length of 230mm, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro
18900136PT1000-BTemperature sensor with glass coated, length of 230mm, used for digital hotplate models, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro
18900084PT1000-CTemperature sensor, length of 100mm, used for digital hotplate models, used for MS-H-Pro +, MS-H-ProT,MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro
18900017Support clamp of PT1000
18900293Set includs support clamp of PT1000 and PT1000 Temperature sensor

Attribute nameAttribute value
Pack Size1
TypeMagnetic Hotplate Stirrer
ModelMS7-H550-Pro
