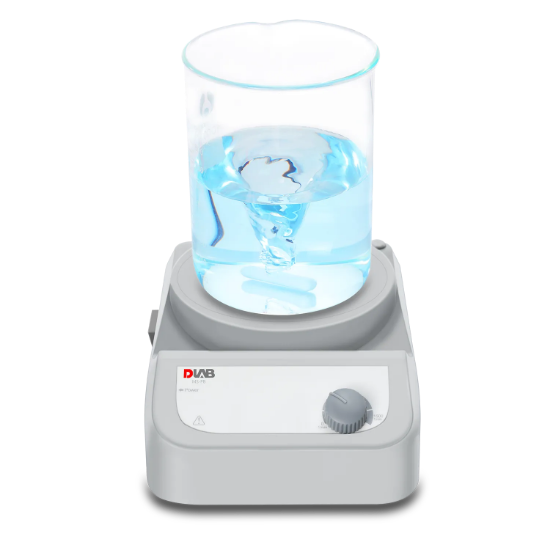

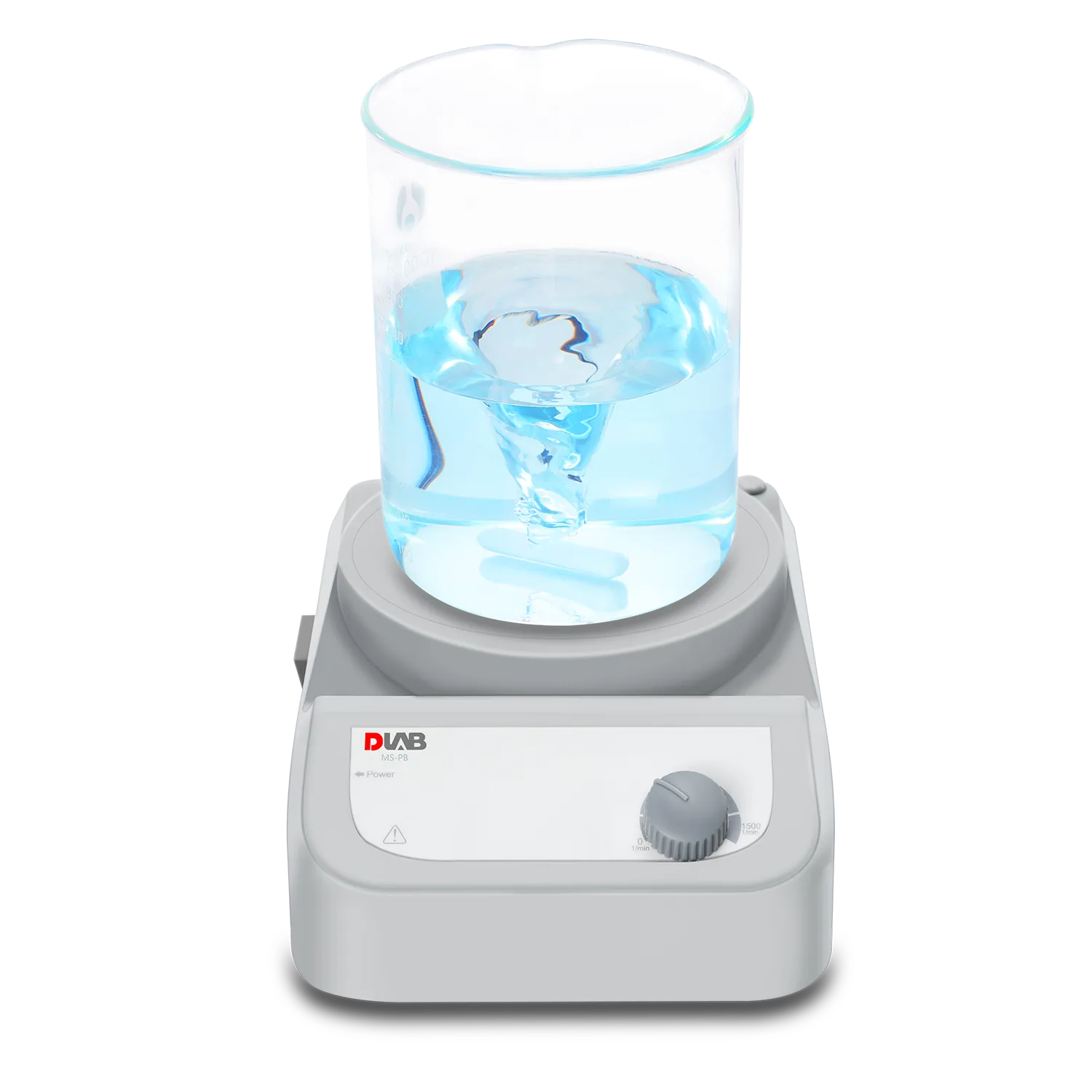

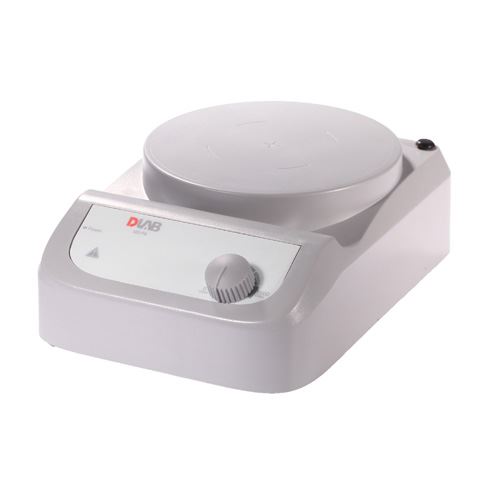

MS-PB Magnetic Stirrer 8030294000

(Upgraded) Classic non-Digital Magnetic Stirrer, plastic plate

SKU: 8030294000

Manufacturer: Dragon Lab

Pack Size: 1

MS-PB Magnetic Stirrer

Digital speed control within the range of 0-1500rpm
Maximum stirring quantity of H2O at 3L

Specifications	MS-PB
Work plate dimension[WXD]	φ135(5 inch)mm
Work plate material	Nylon+GF
Motor type	DC motor
Motor input power	5W
Motor output power	3W
Power	10W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	1
Max. stirring quantity[H2O]	3L
Max. magnetic bar[length]	50mm
Speed range	0-1500rpm
Speed display	Scale
Protection class	IP42
Dimension [W x D x H]	150×260×80mm
Weight	1.8kg
Permissible ambient temperature and humidity	5-40°C 80%RH

Cat. No.	P/N	Descriptions	Power supply
8030104000	MS-PB	Classic non-Digital Magnetic Stirrer, plastic plate	USA plug,100V-220V/50Hz/60Hz
			Cn plug,100V-220V/50Hz/60Hz
			Euro plug,100V-220V/50Hz/60Hz
			UK plug,100V-220V/50Hz/60Hz

18900006	MSBAR10	Stirrer bar（10mm x 6mm），1pc/pk
18900007	MSBAR15	Stirrer bar（15mm x 8mm），1pc/pk
18900008	MSBAR20	Stirrer bar（20mm x 8mm），1pc/pk
18900009	MSBAR25	Stirrer bar（25mm x 8mm），1pc/pk
12500005	MSBAR30	Stirrer bar（30mm x 6mm），1pc/pk
18900011	MSBAR40	Stirrer bar（40mm x 8mm），1pc/pk
12500004	MSBAR50	Stirrer bar（50mm x 8mm），1pc/pk
18900015	MARRM	Stirrer bar remover, length of 200mm, 1pc/pk

Attribute name	Attribute value
Pack Size	1
Type	Magnetic Stirrer
Model	MS-PB
Speed range	0-1500rpm
