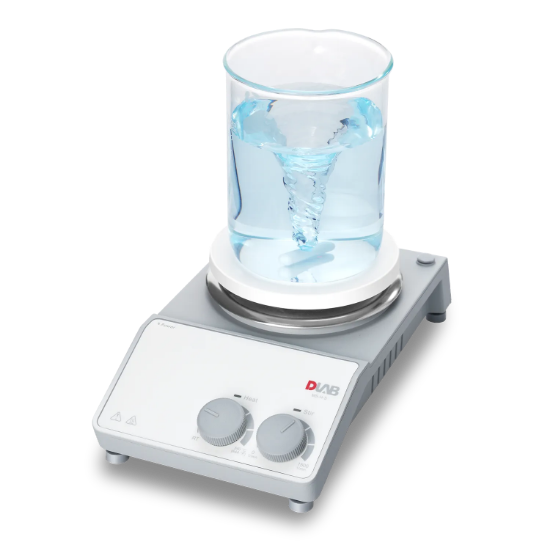

MS-H-S, Hotplate Magnetic Stirrer - 340°C 8030211010

Classic Hotplate Magnetic Stirrer，stainless steel with ceramic coated hotplate，heating temperature up to 340°C

SKU: 8030211010

Manufacturer: Dragon Lab

Pack Size: 1

MS-H-S Security Analog Magnetic Hotplate stirrer

Brushless DC motor is maintenance free and explosion-proof
Digital temperature control up to 340°C
Digital speed control up to 1500rpm
Maximum stirring quantity of H2O is 20L
Safety circuits provide overheating protection
"HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off
Work plate with ceramic coating provides good chemical-resistantperformance
Wide variety of accessories available to choose

Specifications	MS-H-S
Work plate dimension	φ135mm(5 inch)
Work plate material	stainless steel cover with ceramic
Motor type	Brushless DC motor
Motor rating input	18W
Motor rating output	10W
Power	550W
Heating output	500W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	1
Max. stirring quantity[H2O]	20L
Max. magnetic bar[length]	80mm
Speed range	0-1500rpm resolution±1rpm
Speed display	Scale
Temperature display	Scale
Heating temperature range	Room temp.-340°C
Over temperature protection	420°C
Temperature display accuracy	±0.5°C
Protection class	IP42
Dimension[WxDxH]	160×280×85mm
Weight	2.8kg
Permissible ambient temperature and humidity	5-40°C, 80%RH
