MS-H-ProA, Hotplate Magnetic Stirrer - 340°C 8060221110

LCD Digital Magnetic Hotplate Stirrer, polishing aluminum hotplate，heating temperature up to 340°C, including 1 protective cover 18100374 (18900019 for standalone package)
SKU: 8060221110
Manufacturer: Dragon Lab

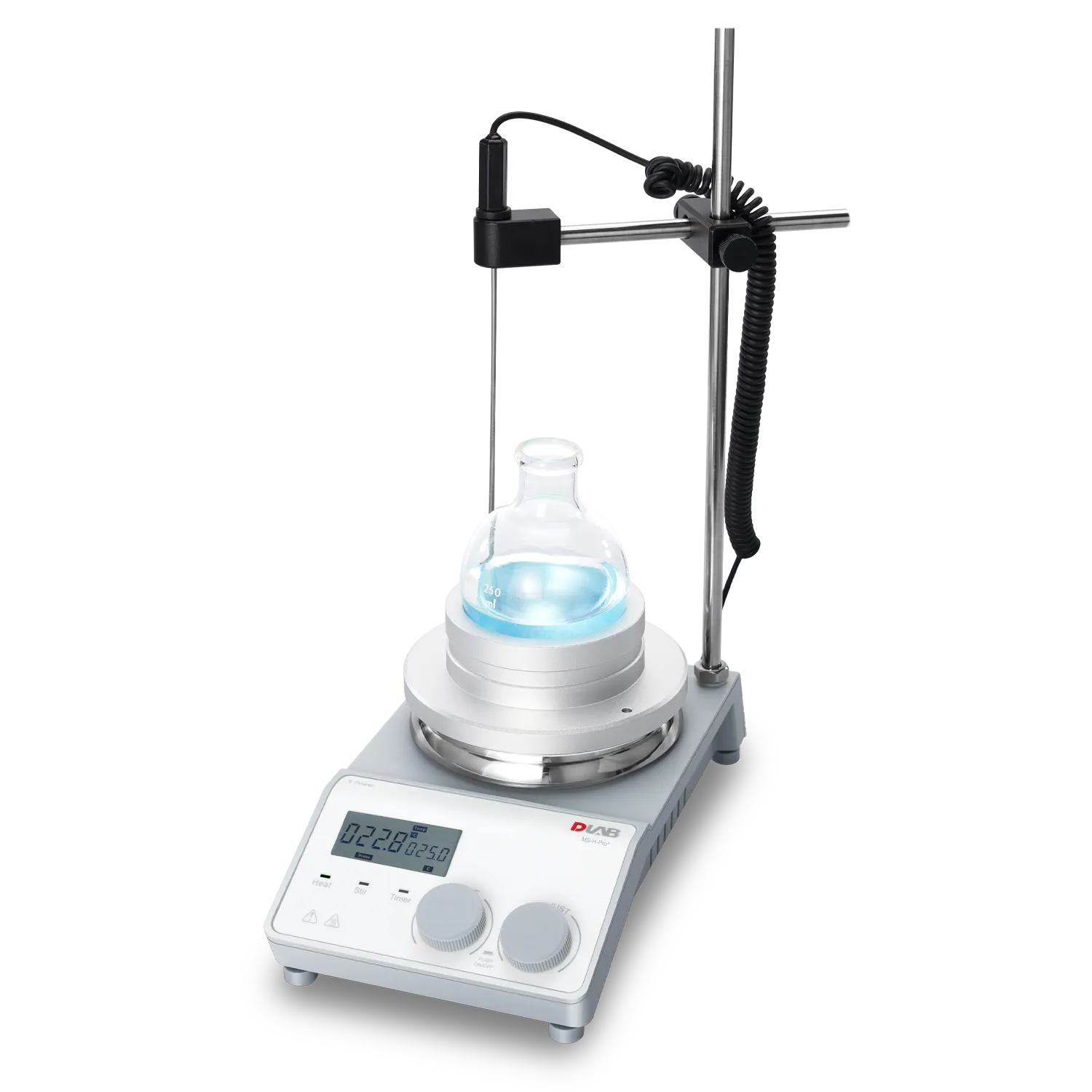

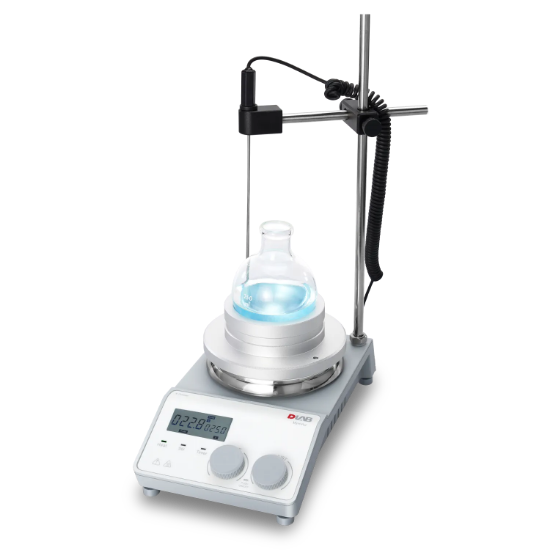

MS-H-ProA LCD Digital Magnetic Hotplate Stirrer
  • Brushless DC motor is maintenance free and explosion-proof
  • Digital temperature control up to 340°C
  • Digital speed control up to 1500rpm
  • Maximum stirring quantity of H2O is 20L
  • Safety circuits provide overheating protection
  • "HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off
  • External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
  • Work plate with ceramic coating provides good chemical-resistantperformance
  • Remote function provides PC control and data transmission
  • Wide variety of accessories available to choose



SpecificationsMS-H-ProA
Work plate dimensionφ135mm(5inch)
Work plate materialAluminum cover with ceramic coating
Motor typeBrushless DC motor
Heating temperature rangeRoom temp.-340℃, increment 1℃
Temperature display accuracy±0.1℃
Heating power600w
Speed range100-1500rpm resolution±1rpm
Max. stirring quantity[H2O]20L
Speed displayLCD
Temperature displayLCD
Motor rating input18w
Motor rating output10w
Max. magnetic bar[length]80mm
Temperature control accuracy±1°C(<100℃) ±1%(>100℃)
External temperature sensorPT1000 (accuracy ±0.2℃)
Over temperature protection420℃
"Hot" warning50℃
Data connectorRS232
Protection classIP21
Voltage100~120/200-240V 50/60Hz
Power650w
Dimension[WxDxH]280×160×85mm
Weight2.8kg
Attribute nameAttribute value
TypeMagnetic Hotplate Stirrer
ModelMS-H-ProA
Speed range100-1500rpm
Temperature Max340 °C
