MS-H-Pro+ , Hotplate Magnetic Stirrer - 340°C 8030101110

LCD Digital Hotplate Magnetic Stirrer，stainless steel with ceramic coated hotplate，heating temperature up to 340°C

SKU: 8030101110

Manufacturer: Dragon Lab

Pack Size: 1

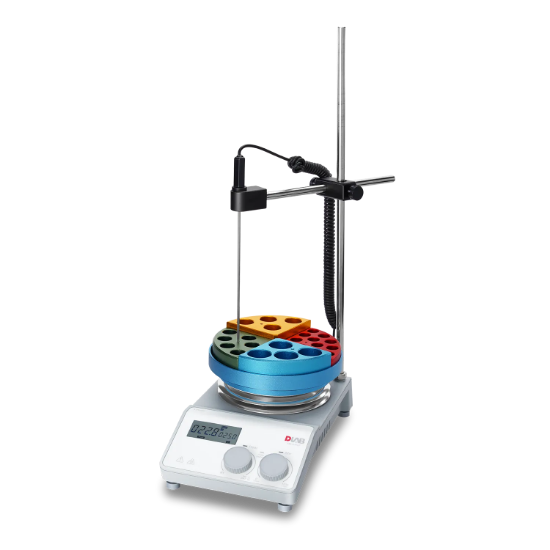

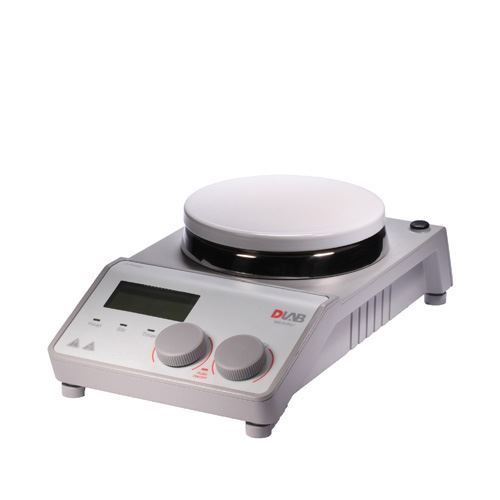

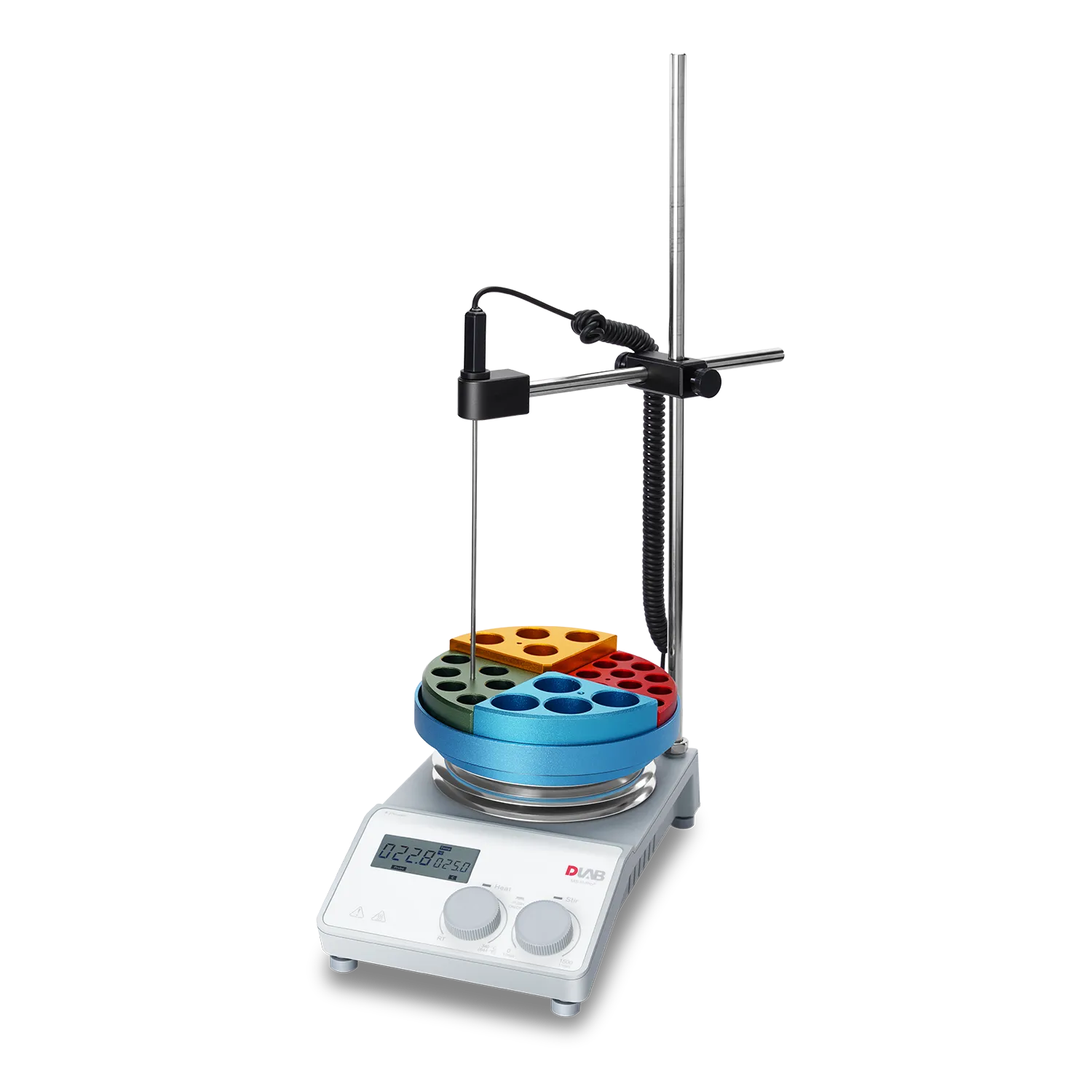

MS-H-Pro+ LCD Digital Magnetic Hotplate Stirrer

Brushless DC motor is maintenance free and explosion-proof
Digital temperature control up to 340°C
Digital speed control up to 1500rpm
Maximum stirring quantity of H2O is 20L
Safety circuits provide overheating protection
"HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off
External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
Work plate with ceramic coating provides good chemical-resistantperformance
Remote function provides PC control and data transmission
Wide variety of accessories available to choose

PRODUCT PARAMETERS
Work plate Dimension	Ø135mm（5 inch)
Work plate material	stainless steel cover with ceramic coating
Max. stirring quantity [H2O]	20L
Speed range	100-1500rpm resolution ±1rpm
Speed display	LCD
Temperature display	LCD
Heating temperature range	Room Temp.-340℃, increment 1℃
Temperature control accuracy	±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy	±0.1℃
External temperature sensor	PT1000 ( accuracy±0.2℃ )
"Hot" warning	50℃
Overheating temperature protection	420℃
Motor type	Brushless DC motor
Stirring positions	1
Max. magnetic bar length	80mm
Data connector	RS232
Protection class	IP21
Motor rating input	18W
Motor rating output	10W
Power	550W
Heating output	500W
Voltage,Frequency	100-120V/200-240V，50/60Hz
Dimension [WxDxH]	160x280x100mm
Weight	2.8kg
Permissible ambient temperature	5-40℃
Permissible ambient humidity	80% RH
