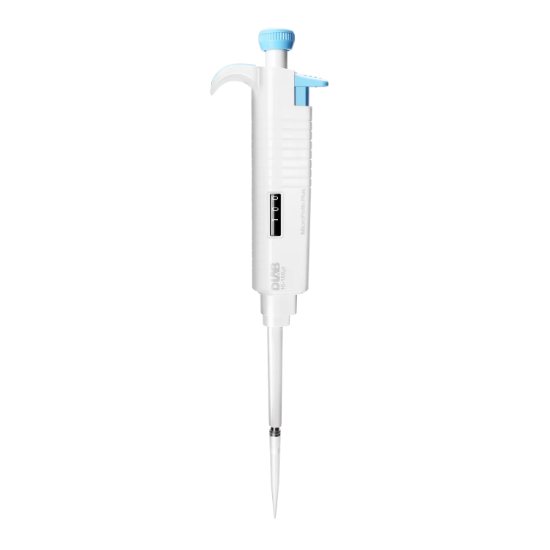

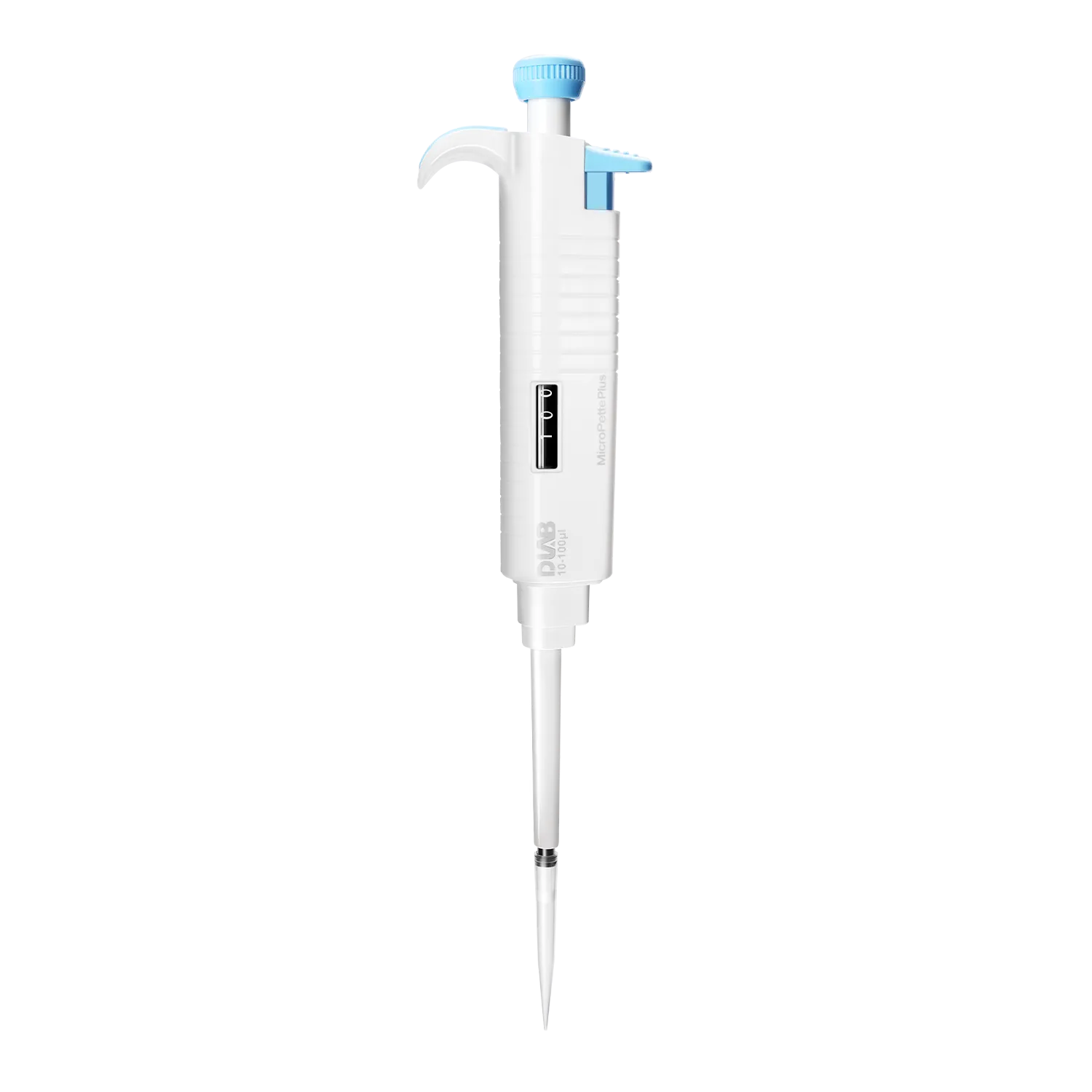

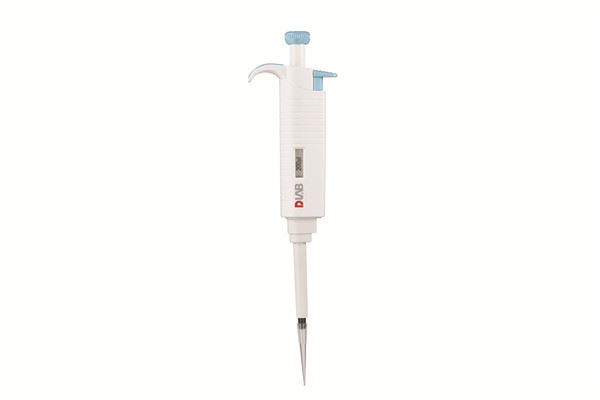

MicroPette plus, Single-channel Adjustable Volume Pipettes, Volume 0.1-2.5μl, 7030301001

SKU: 7030301001

Manufacturer: Dragon Lab

• Fully autoclavable

• Ergonomic design provides excellent operating experience

• Easy-to-read volume display

• The pipettes cover the volume range from 0.1μL to 5mL

• Easy calibration and maintenance

• Manufactured from innovative materials

• Each MicroPette Plus supplied with an

• individual calibration certificate according to ISO8655

Single-channel Adjustable Volume Pipettes
Volume Range	Increment	Test Volume	Accuracy error		Precision error
			%	μl	%	μl
0.1-2.5μl	0.05μl	2.5	2.50%	0.0625	2.00%	0.05
		1.25	3.00%	0.0375	3.00%	0.0375
		0.25	12.00%	0.03	6.00%	0.015
0.5-10μl	0.1μl	10	1.00%	0.1	0.80%	0.08
		5	1.50%	0.075	1.50%	0.075
		1	2.50%	0.025	1.50%	0.015
2-20μl	0.5μl	20	0.90%	0.18	0.40%	0.08
		10	1.20%	0.12	1.00%	0.1
		2	3.00%	0.06	2.00%	0.04
5-50μl	0.5μl	50	0.60%	0.3	0.30%	0.15
		25	0.90%	0.225	0.60%	0.15
		5	2.00%	0.1	2.00%	0.1
10-100μl	1μl	100	0.80%	0.8	0.15%	0.15
		50	1.00%	0.5	0.40%	0.2
		10	3.00%	0.3	1.50%	0.15
20-200μl	1μl	200	0.60%	1.2	0.15%	0.3
		100	0.80%	0.8	0.30%	0.3
		20	3.00%	0.6	1.00%	0.2
50-200μl	1μl	200	0.60%	1.2	0.15%	0.3
		100	0.80%	0.8	0.30%	0.3
		50	1.00%	0.5	0.40%	0.2
100-1000μl	5μl	1000	0.60%	6	0.20%	2
		500	0.70%	3.5	0.25%	1.25
		100	2.00%	2	0.70%	0.7
200-1000μl	5μl	1000	0.60%	6	0.20%	2
		500	0.70%	3.5	0.25%	1.25
		200	0.90%	1.8	0.30%	0.6
1000-5000μl	50μl	5000	0.50%	25	0.15%	7.5
		2500	0.60%	15	0.30%	7.5
		1000	0.70%	7	0.30%	3

Mechanical Autoclavable Pipette - MicroPette Plus
Single-channel Adjustable Volume
Cat. No.	Volume
7030301001	0.1-2.5μl
7030301004	0.5-10μl
7030301005	2-20μl
7030301006	5-50μl
7030301008	10-100μl
7030301009	20-200μl
7030301011	50-200μl
7030301014	100-1000μl
7030301016	200-1000μl
7030301017	1000-5000μl
Single-channel Fixed Volume
Cat. No.	Volume
7030302018	5μl
7030302019	10μl
7030302020	20μl
7030302021	25μl
7030302022	50μl
7030302023	100μl
7030302024	200μl
7030302025	250μl
7030302026	500μl
7030302027	1000μl
7030302028	2000μl
7030302029	5000μl
