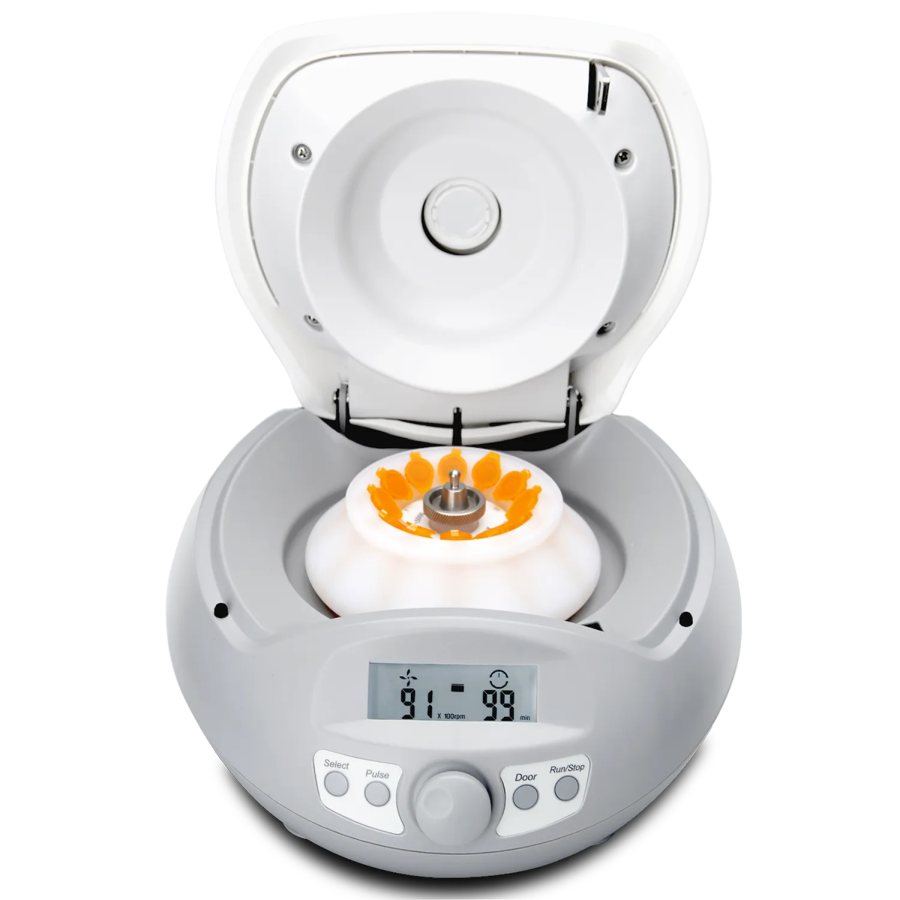

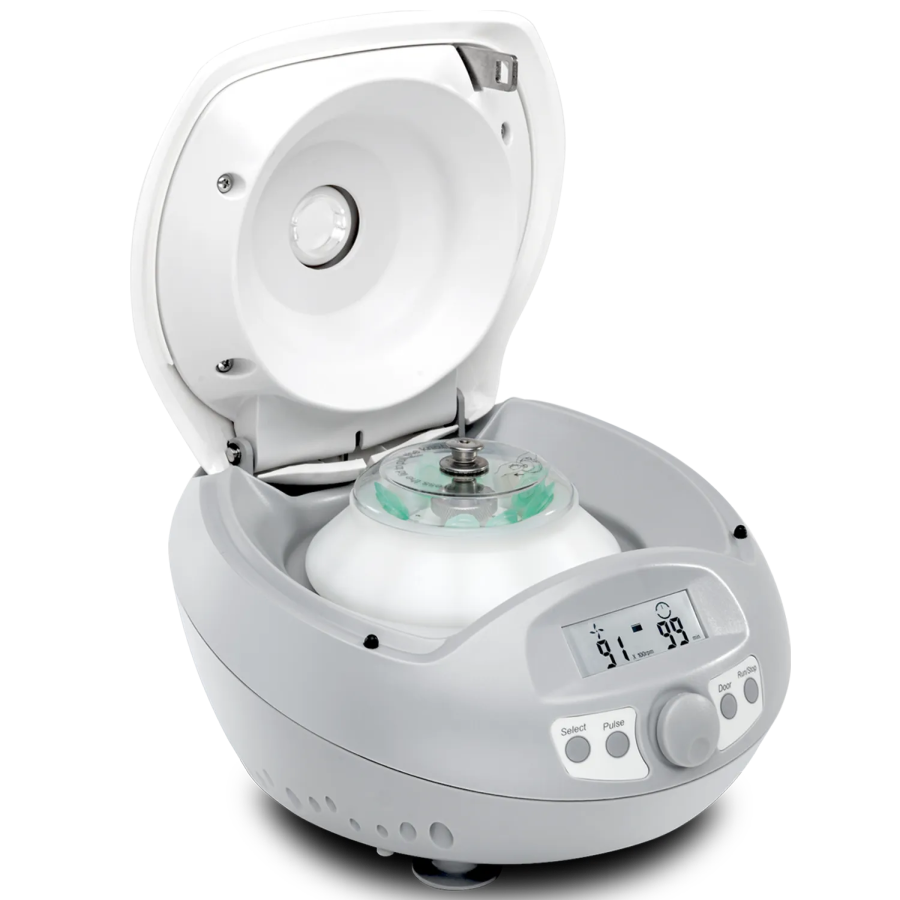

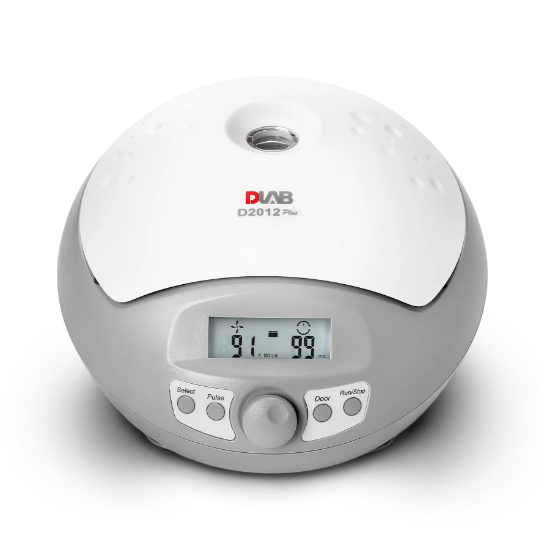

D2012 plus Centrifuge - D2012 High Speed Mini Centrifuge 9032002121

High Speed Mini Centrifuge (CE marked), with A12-2P plastic rotor kit(select 19400010)(package contain in the box)
SKU: 9032002121
Manufacturer: Dragon Lab

Key Features

  • Pulse operation for fast and convenient quick spins .  Speed up to 15000rpm (15100×g)
  • Brushless DC motor drive quickly to the target speed
  • Smooth and quiet operation (noise ≤54dB)
  • Automatic lid-lock and over-speed detection
  • Passed rigorous explosion-proof test, certified with CE,cTÜVus, FCC

Product certification

Complies with applicable CE, UKCA, FCC, ICES, and RoHS requirements and has also obtained CB and cTUVus certifications.

Product Applications

Designed for high-speed separation, precipitation and purification of microsamples. Applications include DNA/RNA and plasmid extraction, PCR/qPCR, nucleic-acid purification, pre-NGS sample processing, protein and cell precipitation, microbial collection, microsample centrifugation and biochemical-analysis pretreatment. Rotor options include 12× or 18×0.2/0.5/1.5/2.0 mL, 6×5 mL and 4×PCR strip tubes. High-speed and Pulse functions enable rapid droplet collection, concentration and pellet separation, improving recovery and repeatability.



Specifications
Max. Speed15000rpm(500-15000rpm), increment:100rpm
Max. RCF15100×g, increment: 100×g
Speed Accuracy±20rpm
Rotor Capacity0.2mL/0.5mL/1.5mL/2mL×12
Run Time30sec-99min/Continuous
Driving MotorBrushless DC motor
Safety Devices

Door interlock,
Over-speed detection,
Over-temperature detection, Automatic internal diagnosis

PowerSingle-phase, AC100V-240V
50Hz/60Hz, 3A ,100W
Noise level≤54dB
Acceleration/Braking time11s↑/9s↓
Dimension[D×W×H]255×245×140mm
Weight6kg
Advanced featuresSpeed/RCF switch,Short-time run function,sound-alert function





Attribute nameAttribute value
Speed range500- 15000rpm
Rotor Capacity0.2mL/0.5mL ×12, 1.5mL/2mL×12
