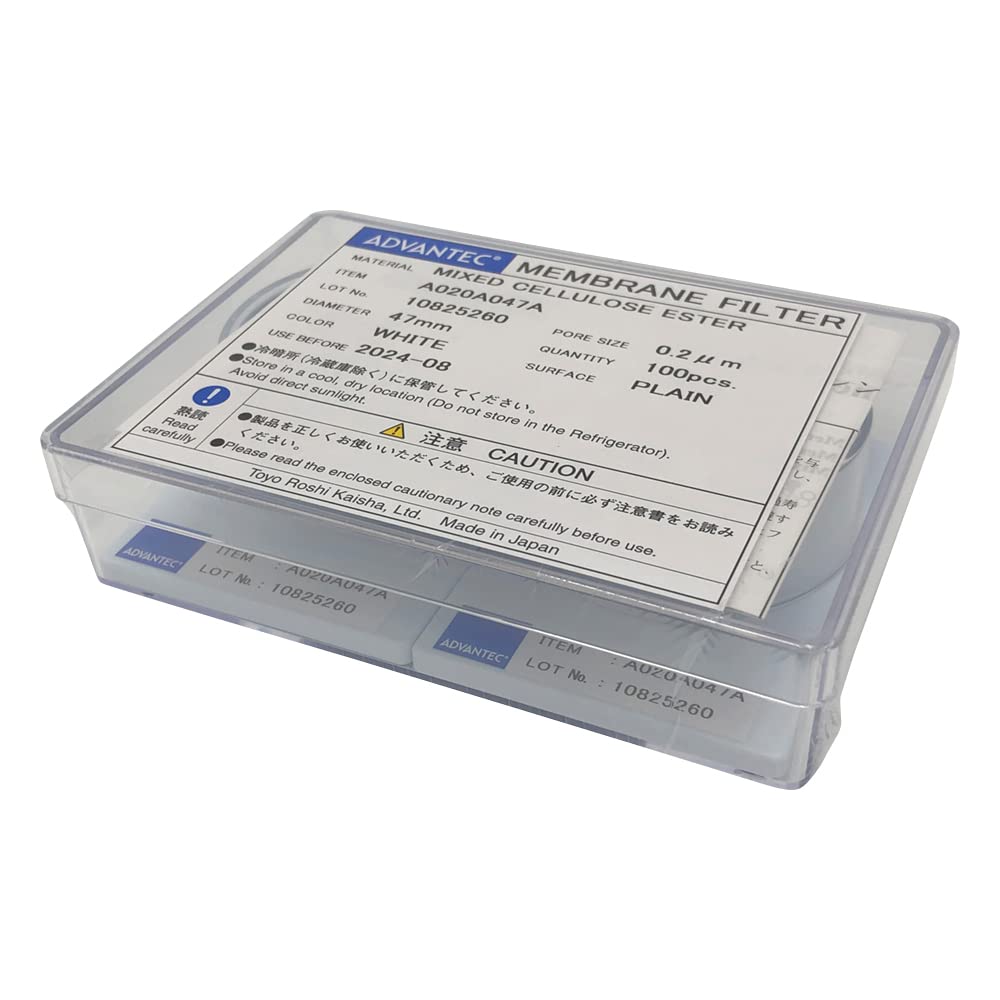

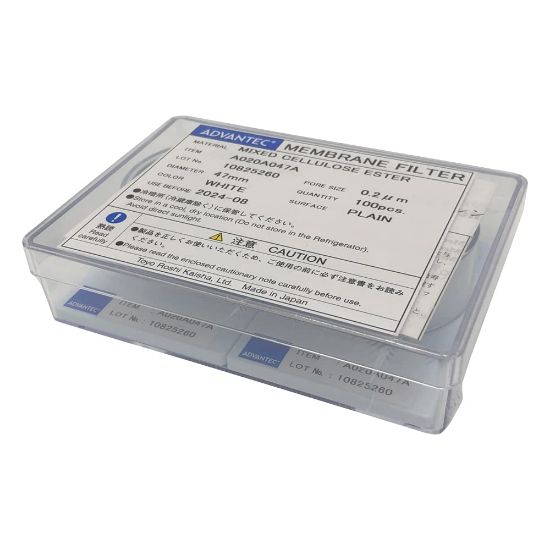

Membrane Filter MCE 0.20 WP 47mm 100/pk NON-STERILE A020A047A

Mixed Cellulose Ester membrane filter 0.2um 47mm, non-sterile
SKU: A020A047A
Manufacturer: Advantec
Pack Size: 100

Mixed Cellulose Esters (MCE)

- Composition: Mixed Cellulose esters including cellulose nitrate and cellulose acetate, also known as nitrocellulose

- High porosity provides superior flow rates

- High protein binding can be blocked by pretreatment or utilized in applications

- High purity: Triton-free

- Autoclavable: Withstands autoclaving temperatures up to 130'c without adversely affecting bubble point, flow rate, or microbiological recovery

- Rapid wetting time: <3 seconds to wet a 47mm diameter disc with aqueous 1% methylene blue



MIXED CELLULOSE ESTERS – NON - STERILE

Plain White, package of 100 discs

Pore Size (µm)

Diameter

13 mm

25 mm

37mm

47 mm

0.10

A010A013A

A010A025A

A010A037A

A010A047A

0.20

A020A013A

A020A025A

A020A037A

A020A047A

0.30

A030A013A

A030A025A

A030A037A

A030A047A

0.45

A045A013A

A045A025A

A045A037A

A045A047A

0.65

A065A013A

A065A025A

A065A037A

A065A047A

0.80

A080A013A

A080A025A

A080A037A

A080A047A

1.00

A100A013A

A100A025A

A100A037A

A100A047A

3.00

A300A013A

A300A025A

A300A037A

A300A047A

5.00

A500A013A

A500A025A

A500A037A

A500A047A

Plain White, package of 25 discs

Pore Size (µm)

Diameter

90 mm

142 mm

293 mm

0.10

A010A090C

A010A142C

A010A293C

0.20

A020A090C

A020A142C

A020A293C

0.30

A030A090C

A030A142C

A030A293C

0.45

A045A090C

A045A142C

A045A293C

0.65

A065A090C

A065A142C

A065A293C

0.80

A080A090C

A080A142C

A080A293C

1.00

A100A090C

A100A142C

A100A293C

3.00

A300A090C

A300A142C

A300A293C

5.00

A500A090C

A500A142C

A500A293C



Applications

-Standard membranes for many laboratory applications including filter sterilizing biological fluids, microbiology, contamination analysis, and air monitoring

- Can be transparentized to view collected particles

    1) using compatible liquid(immersion oil, toluene)

    2) Select Opticlear membranes for the 'hot block' acetone vapor method

- Gridded filters available for quantifying microbial growth

-Available non-sterile or sterilized by ethylene oxide (EtO)



Pore Size (µm)

Color

Surface

Bubble Point*1

Flow Rate*2

Porosity*3 (%)

Thickness (µm)

MPa

psi

Water

(mL/min/cm2)

Air

(L/min/cm2)

0.10

White

Plain

³0.24

³35.3

2.7

0.67

65

110

0.20

White

Plain

³0.37

³54.5

17.5

2.4

73

133

0.30

White

Plain

³0.28

³41.2

30

3.7

75

140

0.45

White

Plain

³0.24

³35.0

45

5.0

78

145

0.45

White

Grid

³0.16

³24.2

80

8.0

79

142

0.65

White

Plain

³0.14

³21.3

120

11.2

79

150

0.80

White

Plain

³0.11

³16.4

165

15.0

80

150

1.00

White

Plain

³0.096

³13.9

220

20.4

80

150

3.00

White

Plain

³0.070

³10.2

300

28.3

81

155

5.00

White

Plain

³0.058

³8.5

400

40.9

81

160

0.45

Black

Grid

³0.22

³32.7

50

5.0

78

135

0.80

Black

Grid

³0.10

³14.9

170

15

80

145

0.45

Green

Grid

³0.22

³32.7

50

5.0

78

135

0.80

Green

Grid

³0.10

³14.9

170

15

80

145



Attribute nameAttribute value
ColourWhite
MediaMCE/Mixed Cellulose Esters
Pore Size0.2um
Diameter47mm
Pack Size100
SurfacePlain
TypeNon-Sterile
