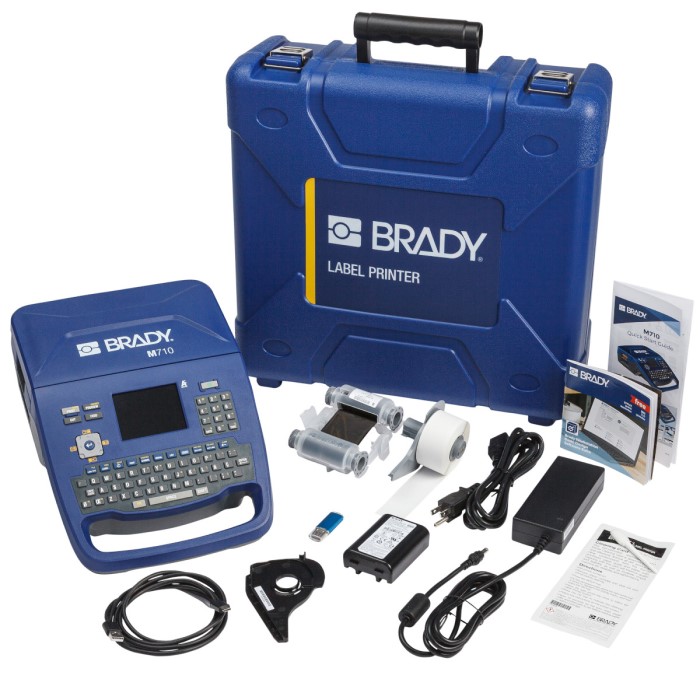

M710 Portable Label Printer with Hard Case 175662

Maximum Label/Tape Width: 2 in; Color Printing Capability: Single Color; Maximum Labels per Day: 1000; Stand Alone Printing: PC connected & Stand-alone; Print Resolution: 300 dpi; Print Technology: Thermal Transfer
SKU: 175662
Manufacturer: Brady

Overview

More speed. Less mess. It’s our fastest, most advanced portable printer yet. Print 3" per second. Auto-cut labels. Work all day on one charge. Use one device for 100’s of applications, printing on the toughest materials around.

  • Get lightning-fast print speeds: 3" per second, plus cut labels automatically
  • Work longer – print 4,500 labels on a full battery charge
  • Enjoy more durability with a printer that withstands 4’ drops, blowing sand and dust
  • Print what you need, how you need – text, barcodes, shapes and images using a keypad or software
  • Get shop-to-field flexibility with label saving, sharing and data imports
  • NOTICE: Brady North America is not authorized to ship this item via air or to Alaska or Hawaii. Please contact your local distributor.

Specifications

Key Characteristics
Product Number175662
UPC888434615881
UOMEach
Trade NameM710
Brand NameBrady®
Country of Origin Malaysia
HTS Code (Harmonized Tariff Schedule) 8443.32.1050
ECCN (Export Commodity Control Number) EAR99



Dimensions
Dimensions13.59 in H x 9.45 in W x 4.6 in D
Height13.59 in
Width9.45 in
Depth4.6 in
Display Size2.12 x 2.81 in
Weight5.40 lb
Material CharacteristicsColorBlue



Product Features

Application Electrical Labeling, Facility Identification, General Identification, Healthcare and Hospital Labeling, Laboratory Labeling, Wire and Cable Labeling
Shipped With BatteryYes
How Is Battery ShippedShipped in box, not installed
Battery mAh Rating1800 mAh
Battery Weight (metric)0.45 lb
Built-In Label Wizards66 Block, Arrow Tape, Breaker Box, DesiStrip, Face Plate, Flags, Patch Panel, Pipe Marker, Safety, Terminal Block, Vial, Wire Wrap
Connectivity Options Standalone Use, USB
Cutter TypeAuto Cutter
Display TypeColor LCD Touch Screen
Keyboard TypeQWERTY
Memory200 MB (stores up to 100,000 labels)
Stand Alone Printing PC connected & Stand-alone
Number of Symbols500+
Plug TypeUS
Power Supply Voltage110 - 245 V
Auto Shut-Off / Power Conserve5 minutes, User Configurable
Recharge Time 3.5 hours
Special Characters QuantityDepends on Regional Keypad
User Interface TypeFull QWERTY Keyboard
Battery TypeRechargeable Lithium-ion Battery



Printing Specifications
Barcode Symbologies - 2DData Matrix, More through Brady Workstation, QR code
Barcode Symbologies - LinearCode 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, More through Brady WorkStation, More through software, UPC-A, UPC-E
Calibration Required? Automated through Smart Cell
Color Printing CapabilitySingle Color
Font Sizes4 - 174 pt
Font StylesBrady Alpine, Brady Fixed Width
Label Retention Feature No
Maximum Labels per Day 1000
Minimum Label Length 0.236 in
Maximum Print Speed3.0 in/s
Minimum Liner Width0.812 in
Print Resolution300 dpi
Print TechnologyThermal Transfer
On Screen IndicatorsBattery Life, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining
Device Drop Test & DurabilityResistant to 4-foot drops, Sand & Dust



Compatibility
Compatible Media BM-, BM7-, BM7C-, BMC-, M6-, M6C-, M7-, M7C-
Label Material TypesFreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Nylon Cloth, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyethylene, Polyethylene Foam Laminate Polyester, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth
Continuous & Die-Cut Materials SupportedContinuous and Die-cut
Custom Labels AvailableYes
Maximum Label/Tape Width2 in
Maximum Print Width1.921 in
Maximum Printed Label Length40 in
Maximum Liner Width2.25 in
Software CompatibilityBrady Workstation
Languages AvailableBulgarian, Chinese (Traditional and Simplified), Croatian, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Spanish (Spain), Swedish, Turkish
