LF31, PES Filtration Set 197010-31

LF31, PES Filtration Set
SKU: 197010-31
Manufacturer: Rocker

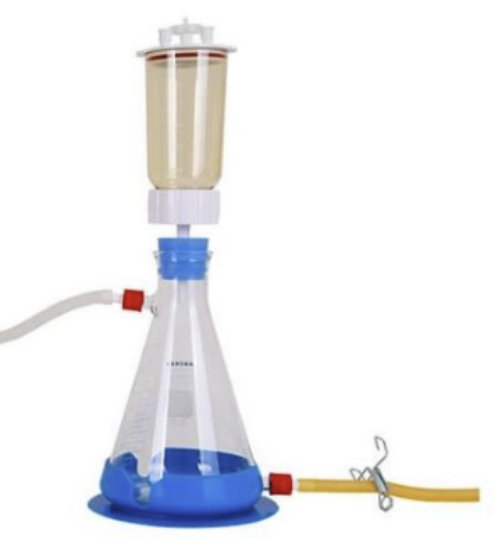

Rocker 300-LF 31 Vacuum Filtration System Includes

  • Rocker 300 Oil Free Vacuum Pump
  • LF 31 Filtration Set
  • Silicone Tube (1 m)

Rocker 300 Oil-free Vacuum Pump Specification

Rocker 300: 220V/50Hz

▸ Max. power: 60W
▸ Max. current: 0.3A
▸ Max. vacuum: 99 mbar abs.
▸ Max. flow rate: 20 L/min
▸ Motor rotation speed: 1450 RPM
▸ Horse power: 1/8 HP
▸ Noise level: 50 dB
▸ Hose barb: ID8 (5/16 inch)
▸ Vacuum Regulator: Yes
▸ Overflow protection: Yes
▸ Thermal protection: Yes

 Filtration System Ordering Information

Part NumberProduct

167308-11(22)

Rocker 300 – LF 31, Vacuum Filtration System, complete set includes :

* Rocker 300, Oil Free Vacuum Pump
* LF 31, Filtration Set
* Silicone Tube (1m)

197010-31

LF 31, 47 mm PES Filtration set
Filtration System Features

  • No air pollution, maintenance free: Rocker series pumps are piston-driven, no need for lubricant, regular oil changes and maintenance with no oil pollution.



  • The patented spin-lock design: The filter holder can be connected with waste bottle by patented spin-lock connection giving a fast and stable installation without clamp.



  • Overflow protection The waste bottle of Rocker 300 – LF 31 comes with a built-in overflow protection to keep the filtrate from overflowing when waste bottle is full.

Attribute nameAttribute value
ModelLF 31
Filter diameter47mm
