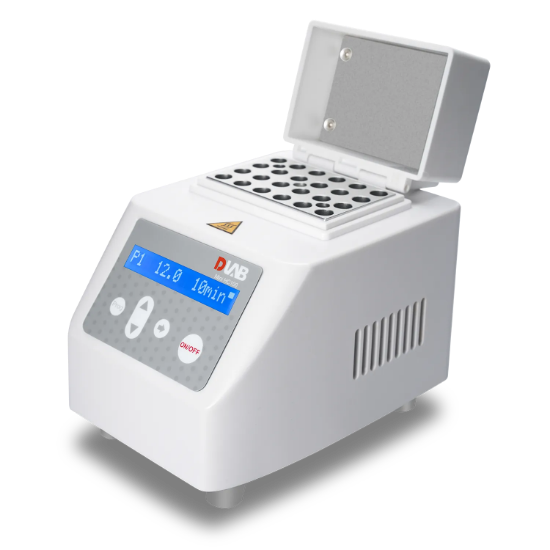

Mini Dry Bath, MiniHC100 , with Push-button operation, 5042102111

MiniHC100 with heating and cooling, one 1 pcs heating block for free (select a size below)
SKU: 5042102111
Manufacturer: Dragon Lab

MiniHC 100 Mini Dry Bath
  • Mini, lightweight, safe with LCD display
  • Digital control over both temperature and time
  • Built-in user recalibration function guarantees long term temperature accuracy
  • Overheating protection
  • Optional cooling function
  • Interchangeable blocks for a wide variety of test tube sizes

Application

Suitable for low-temperature storage, rapid heating, reagent preheating, nucleic-acid and protein denaturation, enzymatic reactions, sample lysis, and constant-temperature incubation of field or small-batch samples. It supports continuous processing from low-temperature storage to high-temperature treatment, while models with a heated lid reduce condensation on tube caps and changes in reaction volume.

PRODUCT PARAMETERS
Cat.No.5042102111
Temperature setting range
Room temperature -23-100℃
Temperature range0-100℃
Temperature control accuracy
±0.5℃
Temperature display accuracy0.1℃
Time setting range0-999min/0-999sec
Minimum time taken for heating(25℃+100℃)≤20min
Minimum time for cooling(20℃-0℃)
≤25min
Max. Heating Rate8℃/min
Max. Cooling Rate3℃/min
Program memory
9(2steps for each)
Temperature self-calibration
Support
USB interface
Support
Error code displaySupport
Power60W
DisplayLCD
Voltage/Frequency100-240V, 50/60Hz or DC12V
Dimension[WxDxH]110x162x140mm
Weight≤1kg
Permissible ambient temperature
+10-40℃
Permissible ambient humidity<80% RH

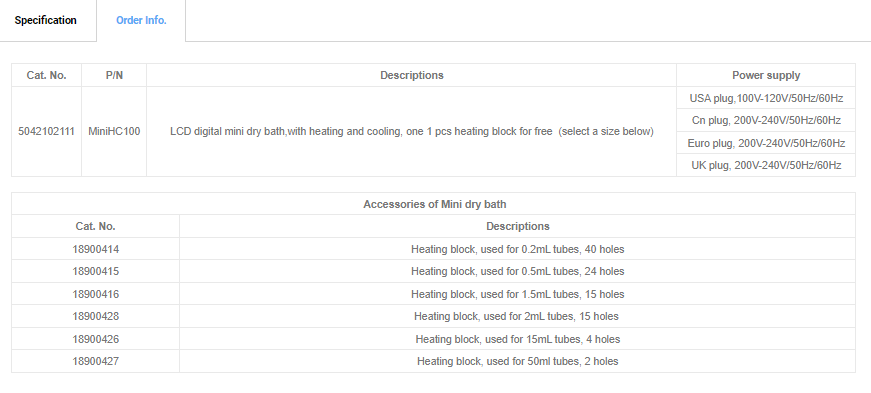

Accessories
18900414Heating block, used for 0.2mL tubes, 40 holes
18900415Heating block, used for 0.5mL tubes, 24 holes
18900416Heating block, used for 1.5mL tubes, 15 holes(cone bottom)
18900428Heating block, used for 2mL tubes, 15 holes (round bottom)
18900417Heating block, used for 5mL tubes, 6 holes
18900426Heating block, used for 15mL tubes, 4 holes
18900427Heating block, used for 50ml tubes, 2 holes



Attribute nameAttribute value
ModelMiniHC 100
Power60W
Temperature Max100 °C
Temperature Min0 °C
