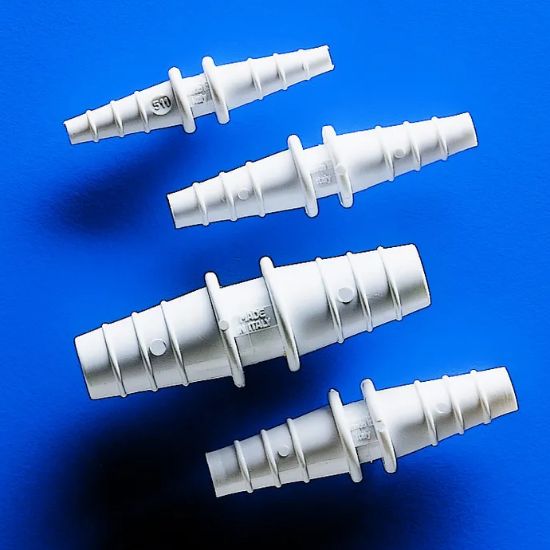

STRAIGHT CONNECTORS PP 12-14 mm KAR514

STRAIGHT CONNECTORS PP 12-14 mm KAR514
SKU: KAR514
Manufacturer: Kartell



PRODUCT DESCRIPTION

Autoclavable. Dimensions are shown as both nominal and exact as elasticity of hoses will influence the choice of size. Use hoses selector Art. 1759 to determine "grip". This will then give equivalent crest dimension for the particular connector concerned.

TESTED ACCORDING TO REACH REGULATION 1907 / 2006 ANNEX XVII

PRODUCT SPECIFICATION

Art.Nominal O.D.Crest O.D. mm max/minBore mm
5104 / 5 / 63 / 4.5 / 5.52
5116 / 7 / 84.5 / 7 / 8.23.5
5128 / 9 / 106.3 / 9 / 114.5
51310 / 11 / 128.3 / 10.5 / 136.5
51412 / 13 / 1410 / 13 / 158.5
51514 / 15 / 1612 / 14.5 / 1710.5
Attribute nameAttribute value
ShapeStraight
Diameter12-14mm
