HP500-Pro package1, HP500-Pro Square Hotplate & PT1000A, 5131132115

LED Digital 10’’ Square Hotplate, glass ceramic hotplate, heating temperature up to 500°C(5031132115)+ PT1000A (18900016)

SKU: 5131132115

Manufacturer: Dragon Lab

HP500-Pro package1 Include:

LED Digital 10’’ Square Hotplate, glass ceramic hotplate, heating temperature up to 500°C(5031132115)+ PT1000A (18900016)

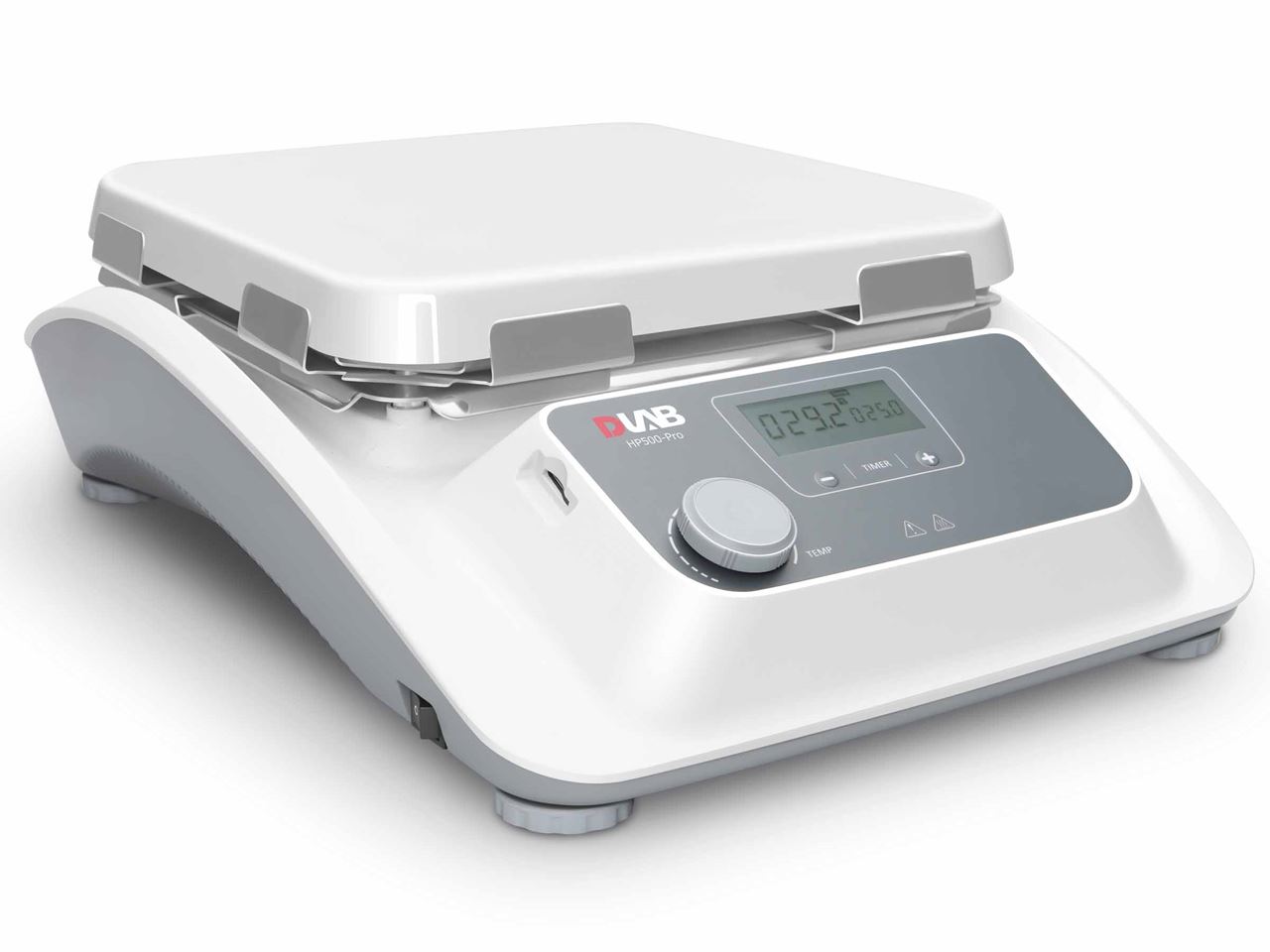

HP500-Pro LCD Digital Hotplate

LCD screen shows temperature, Max. temperature up to 500℃
10-inch glass ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer

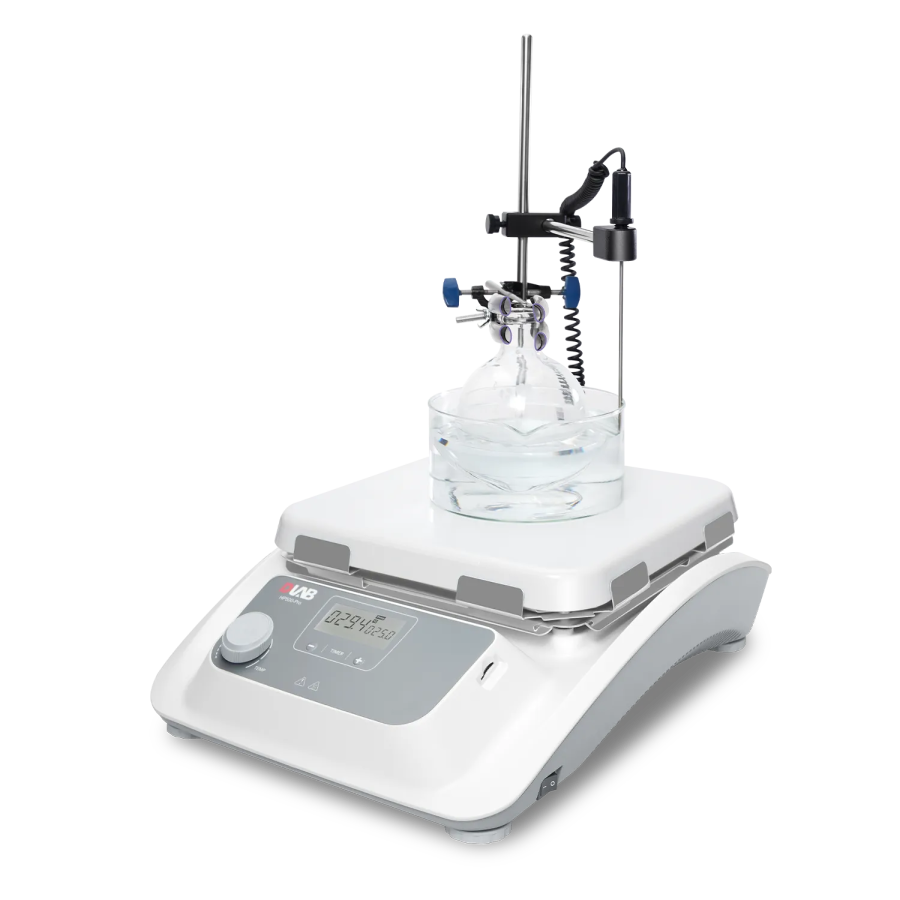

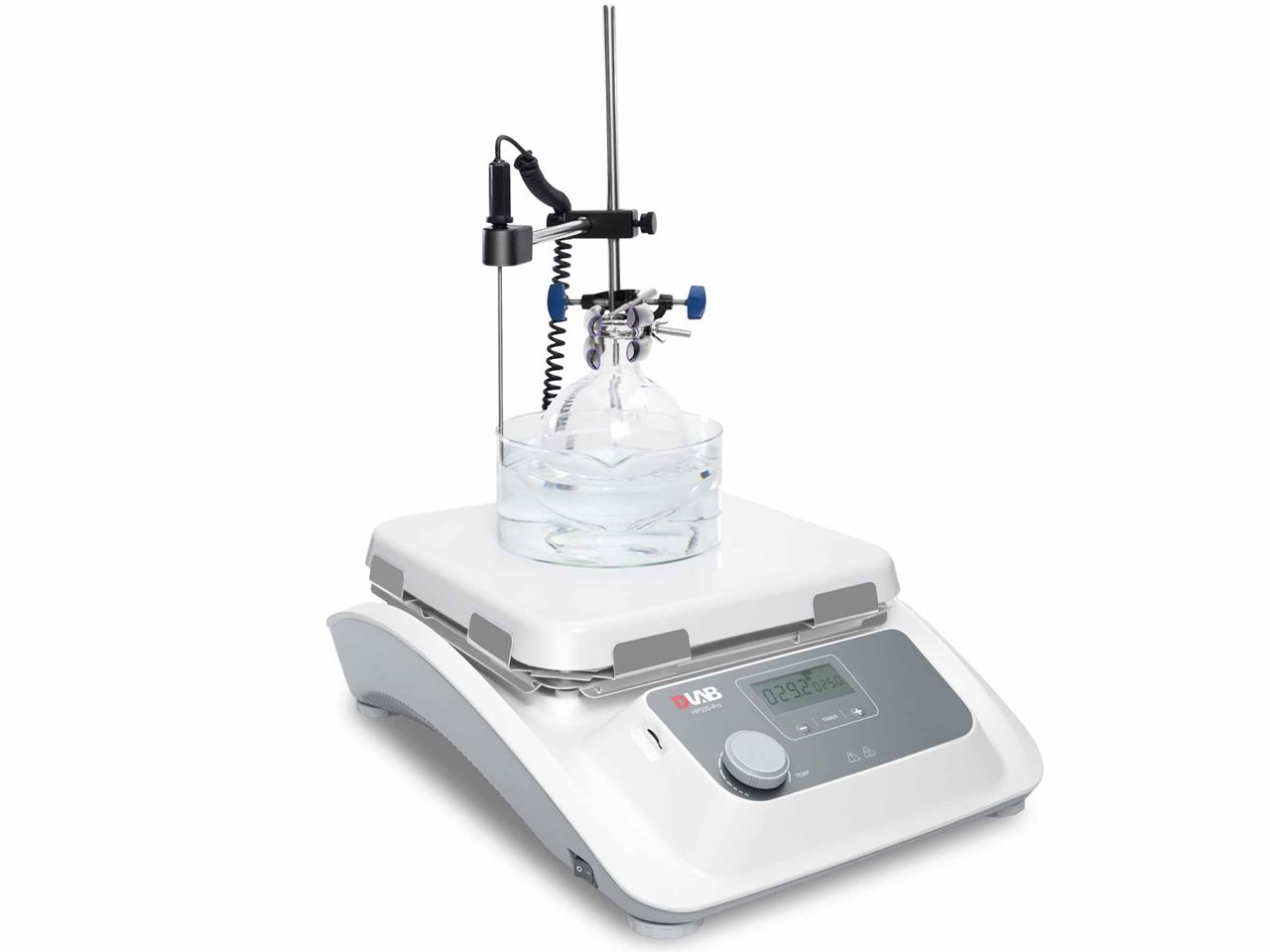

External temperature control is possible by connecting the temperature sensor (PT
1000) with an accuracy at ±0.2°C
The “HOT”warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
Heating temperature: room temperature -500℃ .
Data connector : The SD card records the instrument's running data in real time.
Timing function: the running time of the instrument can be set.

PRODUCT PARAMETERS
Cat.No.	5031132115
Work plate Dimension	254x254mm(10 inch)
Work plate material	Glass ceramic
Heating temperature range	Room Temp.-500℃, increment 1℃
Temperature display	LCD
Time display	LCD
Temperature control accuracy	±1℃ (<100℃)±1%(>100℃)
Temperature display accuracy	±0.1℃
External temperature sensor	PT1000 (±0.2℃)
"Hot" warning	50℃
Overheating temperature protection	540℃
Heating position	1
Timer function	1min-99h59min
Protection class	IP21
Power	1400W
Heating output	1350W
Voltage,Frequency	100-120V/200-240V，50/60Hz
Dimension[WxDxH]	328x424x138mm
Weight	7.2kg
Permissible ambient temperature	5-40℃
Permissible ambient humidity	80%RH
