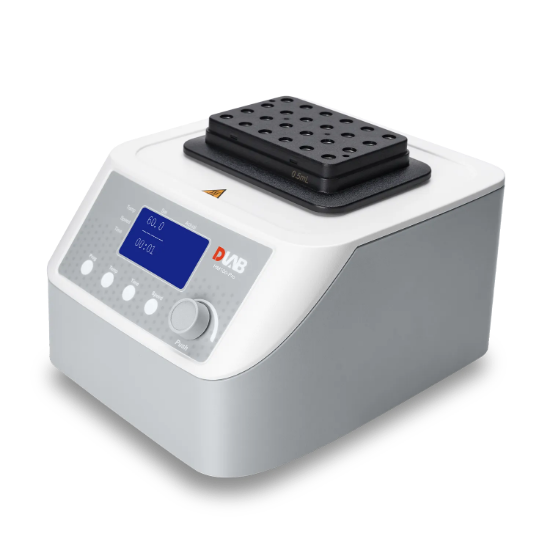

Picture of HM100-Pro LCD digital Thermo Mix, with Touch operation (Mechanical fixation), 5063104300

HM100-Pro LCD digital Thermo Mix, with Touch operation (Mechanical fixation), 5063104300

HM100-Pro LCD digital Thermo Mix with heating, mixing,with 1pcs heating block for free (select a size)

SKU: 5063104300

Manufacturer: Dragon Lab

HM100-pro Thermo Mix（Mechanical fixation）

Fully programmable
Precise temperature control for heating
Real-time display of speed, temperature and time
Excellent mixing (200-1500rpm)
Quick interchange of blocks without tools and automatic block recognition
Compatible with most popular tubes
Block equipped with a lid for heat preservation
Temperature self-calibration

Specifications	HM100-Pro
Functions	Heating& mixing
Temperature range	Room temp-100℃
Temperature setting range	15-100℃
Temperature control accuracy	± 0.5°C
Temperature uniformity	Max.± 0.5°C
Max. heating rate	5.5°C/min
Mixing frequency	200-1500rpm
Mixing orbit	3mm
Screen	TFT
Program	9
Overheating protection	150°C
Adapter block material	aluminum
Voltage, Frequency	100–240V,50/60Hz
Power	200W
Dimension [D×W×H] ( without the heating block )	200×235×120mm
Weight	7.3kg

Accessories of Thermo Mix(Mechanical fixation)
18900238	Heating block, used for 0.5mL tubes, 24 holes
18900237	Heating block, used for 1.5mL tubes, 24 holes(cone bottom)
18900239	Heating block, used for 2mL tubes, 24 holes( round bottom)
18900240	Heating block, used for 5mL tubes, 8 holes
18900241	Heating block, used for 15mL tubes, 8 holes
18900242	Heating block, used for 50mL tubes, 4 holes
18900243	Heating block, used for 0.2ml/96 well PCR plate
18900244	Heating block, used for ELISA microplate
Blocks for eppendorf tube(Mechanical fixation)
18900353	Heating block, used for 5mL tubes, 8 holes
18900354	Heating block, used for 5mL tubes, 8 holes, cone bottom, only for new machine
18900355	Heating block, used for 15mL tubes, 8 holes
18900356	Heating block, used for 50mL tubes, 4 holes

Download PDF Here
