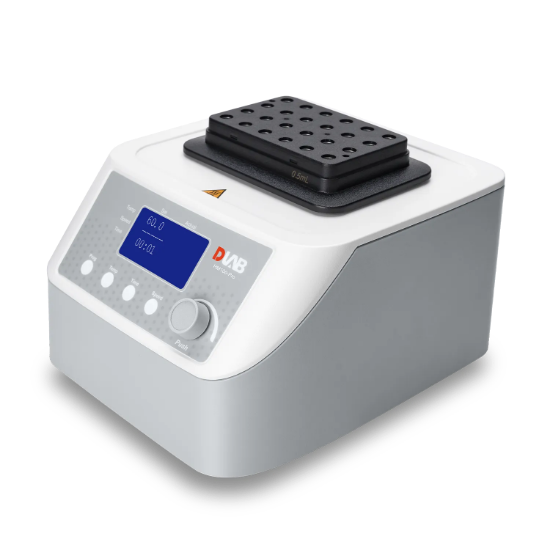

Picture of HM100-Pro LCD digital Thermo Mix, with Touch operation (Magnetic) 5032104310

HM100-Pro LCD digital Thermo Mix, with Touch operation (Magnetic) 5032104310

HM100-Pro LCD digital Thermo Mix with heating, mixing,with 1pcs heating block for free (select a size)

SKU: 5032104310

Manufacturer: Dragon Lab

HM100-pro Thermo Mix（Magnetic）

Fully programmable
Precise temperature control for heating
Real-time display of speed, temperature and time
Excellent mixing (200-1500rpm)
Quick interchange of blocks without tools and automatic block recognition
Compatible with most popular tubes
Block equipped with a lid for heat preservation
Temperature self-calibration

Specifications	HM100-Pro
Functions	Heating& mixing
Temperature range	Heating: room temp. - 100 °C
Temperature setting range	15-100℃
Temperature control accuracy	± 0.5°C
Temperature uniformity	Max.± 0.5°C
Max. heating rate	5.5°C/min
Mixing frequency	200-1500rpm
Mixing orbit	3mm
Screen	TFT
Program	9
Overheating protection	150°C
Adapter block material	aluminum
Voltage, Frequency	100–240V,50/60Hz
Power	200W
Dimension [D×W×H] ( without the heating block )	200×235×120mm
Weight	7.3kg

Accessories of Thermo Mix(Quick change,magnetic mounting) only adapt to upgraded equipments，Black
18900401	Heating block, used for 0.5mL tubes, 24 holes
18900402	Heating block, used for 1.5mL tubes, 24 holes(cone bottom)
18900403	Heating block, used for 2mL tubes, 24 holes(round bottom)
18900874	Heating block, used for 2mL Chromatography Vial, 24 holes
18900404	Heating block, used for 5mL tubes, 8 holes
18900405	Heating block, used for 5mL tubes, 8 holes, cone bottom
18900406	Heating block, used for 15mL tubes, 8 holes
18900407	Heating block, used for 50mL tubes, 4 holes
18900420	Heating block, used for 0.2ml/96 well PCR plate
18900423	Heating block, used for ELISA microplate
18900746	Heating block, used for 96 Deep well plate（only adapt to H100-Pro & HC110-Pro，non-oscillatory）
Accessories of Thermo Mix(Quick change,magnetic mounting) only adapt to upgraded equipments，Gray
18900446	Heating block, used for 0.5mL tubes, 24 holes
18900452	Heating block, used for 5mL tubes, 8 holes
