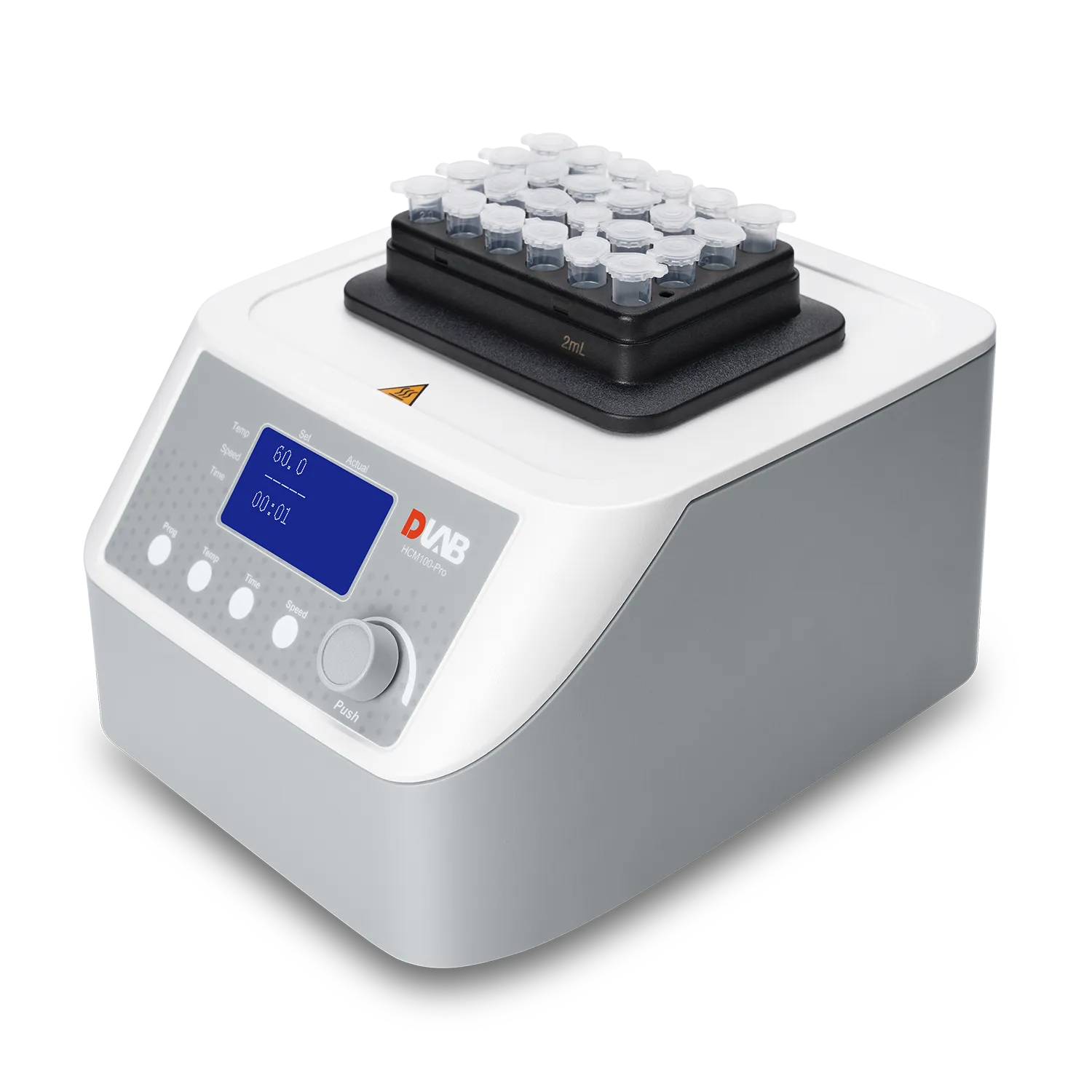

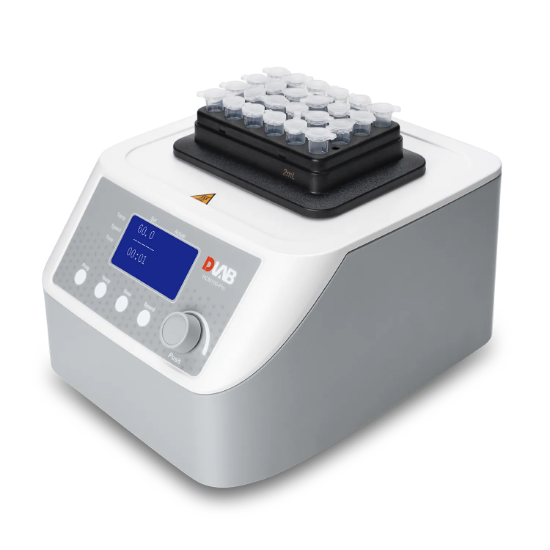

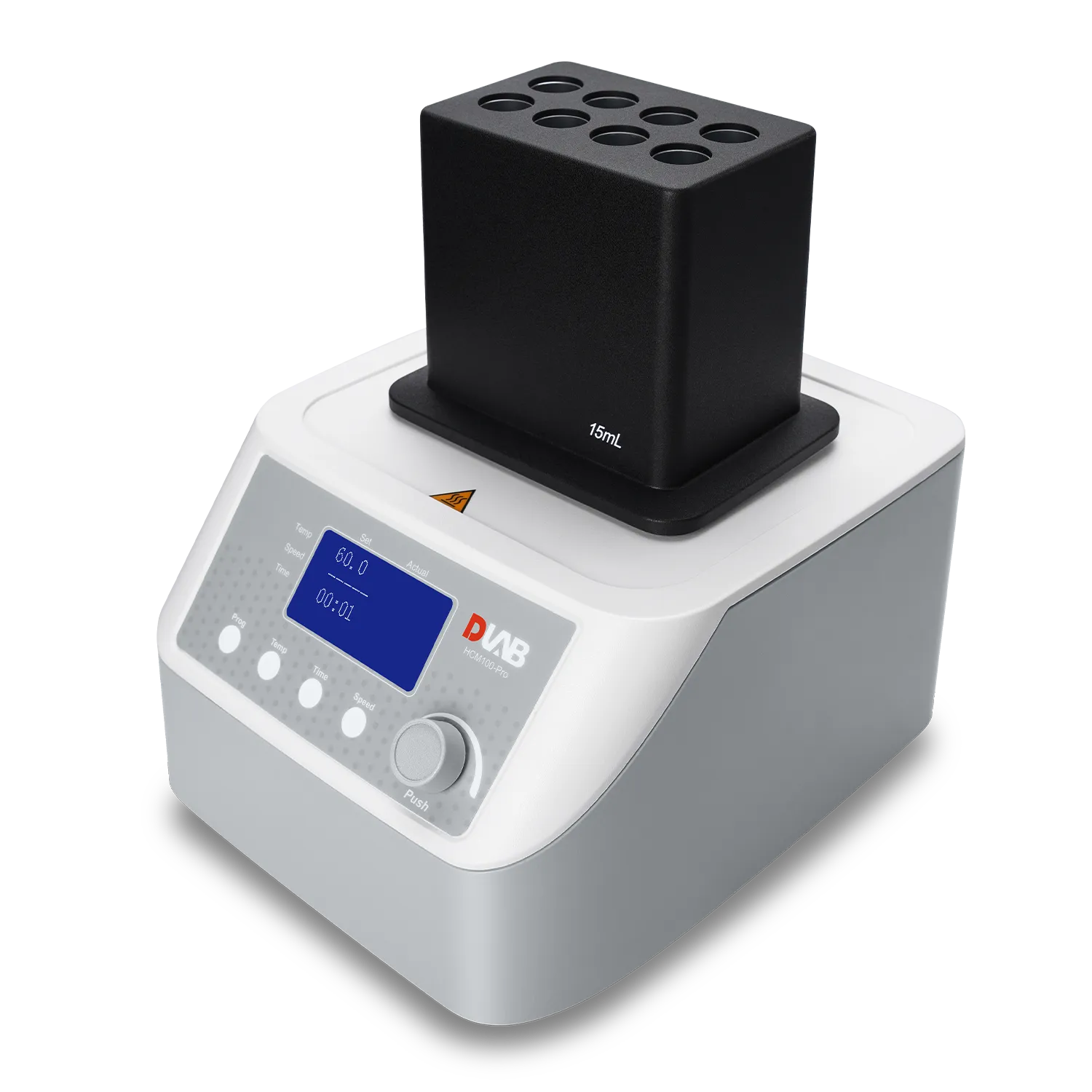

HCM100-Pro LCD digital Thermo Mix, with Touch operation (Mechanical fixation) 5062143300

HCM100-Pro LCD digital Thermo Mix with heating, cooling,mixing,with 1pcs heating block for free (select a size)
SKU: 5062143300
Manufacturer: Dragon Lab



HCM100-Pro Thermo Mix（Mechanical fixation）
  • Fully programmable
  • Precise temperature control for heating and cooling
  • Real-time display of speed, temperature and time
  • Excellent mixing (200-1500rpm)
  • Quick interchange of blocks without tools and automatic block recognition
  • Compatible with most popular tubes
  • Block equipped with a lid for heat preservation
  • Temperature self-calibration



Specifications HCM100-Pro
Functions Heating/cooling/mixing
Temperature range Below room temp 15-100℃
Temperature setting range 0-100℃
Temperature control accuracy ±0.5℃
Temperature uniformity ± 0.5°C
Max. heating rate 5.5°C/min
Max. cooling rate 5℃/min（100℃-room temp） 0.5℃/min（below room temp)
Mixing frequency 200-1500rpm
Mixing orbit 3mm
Screen TFT
Overheating protection 150°C
Adapter block material aluminum
Voltage, Frequency DC12V,100–240V,50/60Hz
Power 200W
Dimension [D×W×H]
( without the heating block )		 200×235×120mm
Weight 7.3kg



    Accessories of Thermo Mix(Mechanical fixation)
18900238 Heating block, used for 0.5mL tubes, 24 holes
18900237 Heating block, used for 1.5mL tubes, 24 holes(cone bottom)
18900239 Heating block, used for 2mL tubes, 24 holes(
round bottom)
18900240 Heating block, used for 5mL tubes, 8 holes
18900241 Heating block, used for 15mL tubes, 8 holes
18900242 Heating block, used for 50mL tubes, 4 holes
18900243 Heating block, used for 0.2ml/96 well PCR plate
18900244 Heating block, used for ELISA microplate
Blocks for eppendorf tube(Mechanical fixation)
18900353 Heating block, used for 5mL tubes, 8 holes
18900354 Heating block, used for 5mL tubes, 8 holes, cone bottom, only for new machine
18900355 Heating block, used for 15mL tubes, 8 holes
18900356 Heating block, used for 50mL tubes, 4 holes
