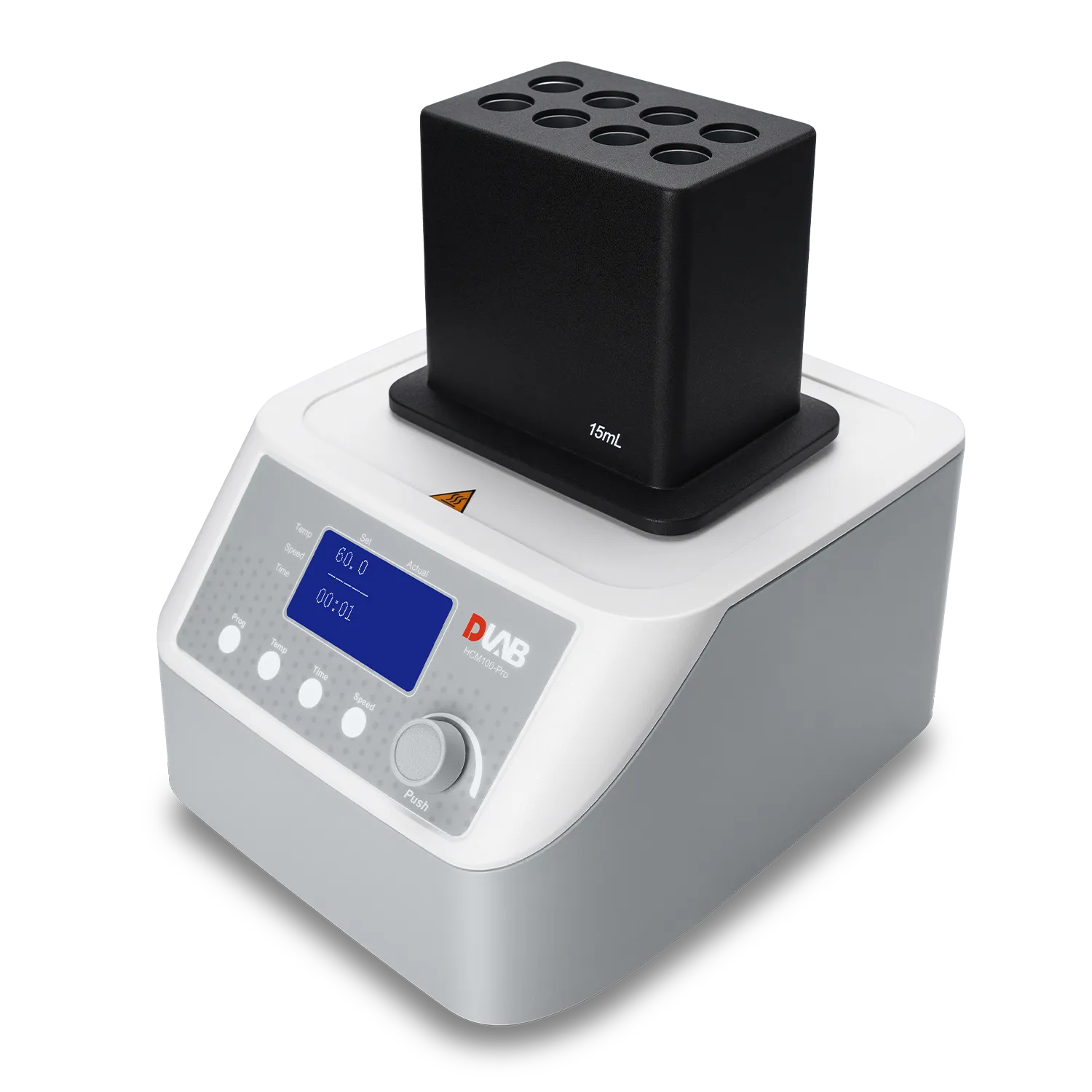

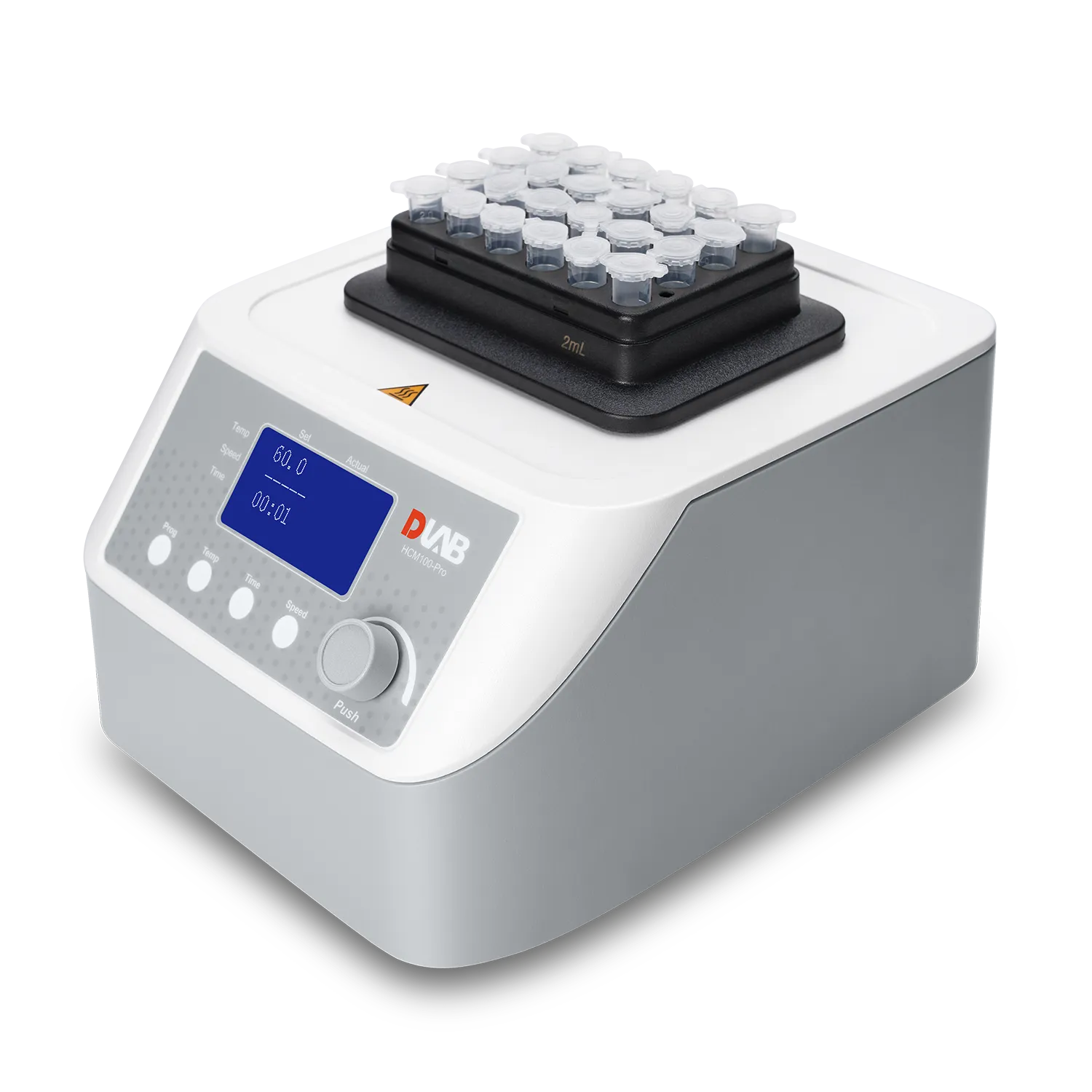

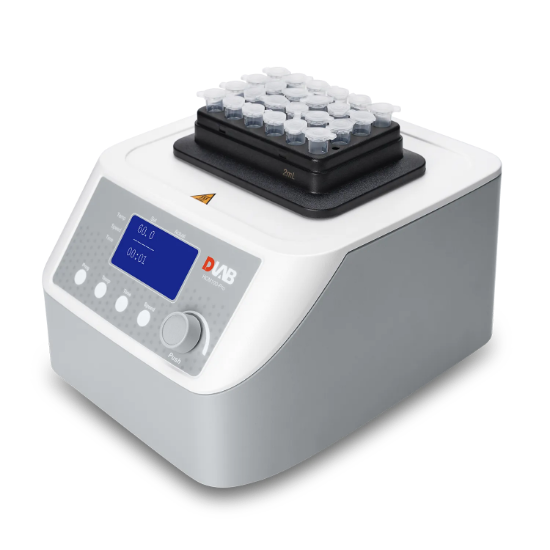

HCM100-Pro LCD digital Thermo Mix, with Touch operation (Magnetic) 5062103300

LCD digital Thermo Mix with heating, cooling,mixing,with 1pcs heating block for free (select a size)

SKU: 5062103300

Manufacturer: Dragon Lab

HCM100-Pro Thermo Mix（Magnetic）

Fully programmable
Precise temperature control for heating and cooling
Real-time display of speed, temperature and time
Excellent mixing (200-1500rpm)
Quick interchange of blocks without tools and automatic block recognition
Compatible with most popular tubes
Block equipped with a lid for heat preservation
Temperature self-calibration

Specifications	HCM100-Pro
Functions	Heating, cooling & mixing
Temperature range	Heating: room temp. - 100°C Cooling: room temp. - below room temp. 15°C
Temperature setting range	0.1-100℃
Temperature control accuracy	± 0.5°C
Temperature uniformity	Max.± 0.5°C
Max. heating rate	5.5°C/min
Max. cooling rate	5°C /min(100°C-room temp.) 0.5°C/min(below room temp.)
Mixing frequency	200-1500rpm
Mixing orbit	3mm
Screen	TFT
Overheating protection	150°C
Adapter block material	aluminum
Voltage, Frequency	DC12V,100–240V,50/60Hz
Power	200W
Dimension [D×W×H] ( without the heating block )	200×235×120mm
Weight	7.3kg

Accessories of Thermo Mix(Quick change,magnetic mounting) only adapt to upgraded equipments，Black
Cat. No.	P/N	Descriptions
18900401		Heating block, used for 0.5mL tubes, 24 holes
18900402		Heating block, used for 1.5mL tubes, 24 holes(cone bottom)	Replaced 18900448
18900403		Heating block, used for 2mL tubes, 24 holes( round bottom)	Replaced 18900450
18900404		Heating block, used for 5mL tubes, 8 holes
18900405		Heating block, used for 5mL tubes, 8 holes, cone bottom	Replaced 18900466
18900406		Heating block, used for 15mL tubes, 8 holes
18900407		Heating block, used for 50mL tubes, 4 holes	Replaced 18900456
18900420		Heating block, used for 0.2ml/96 well PCR plate
18900423		Heating block, used for 96/384 microplate
Accessories of Thermo Mix(Quick change,magnetic mounting) only adapt to upgraded equipments，Gray
Cat. No.	P/N	Descriptions
18900446		Heating block, used for 0.5mL tubes, 24 holes
18900452		Heating block, used for 5mL tubes, 8 holes
18900422		Heating block, used for 0.2ml/96 well PCR plate
18900425		Heating block, used for 96/384 microplate

Download PDF Here
