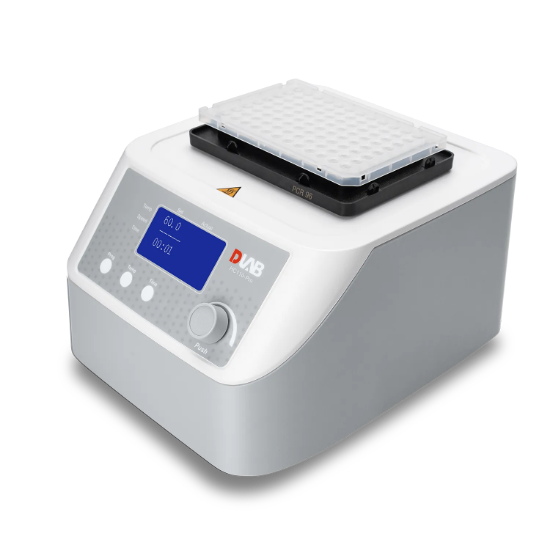

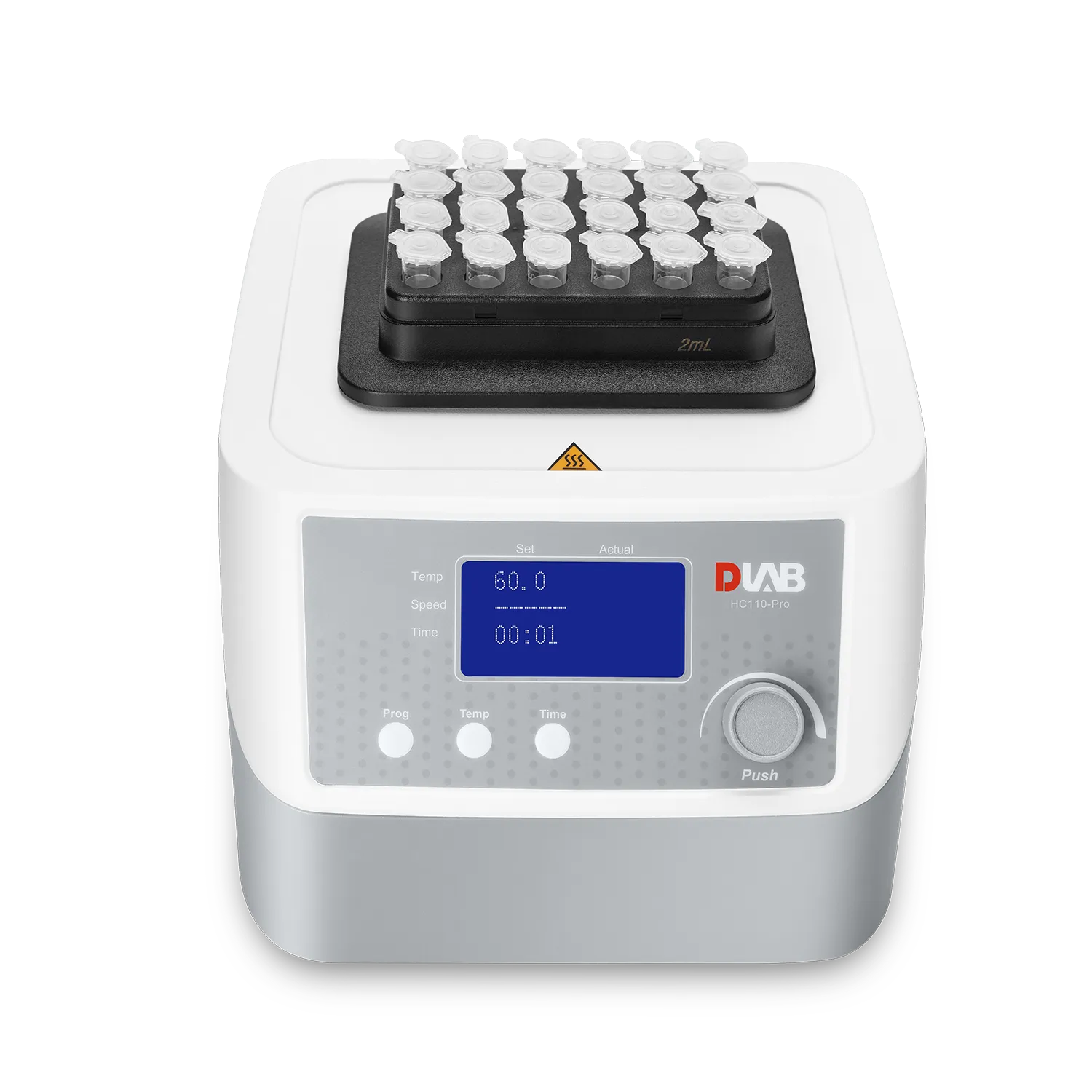

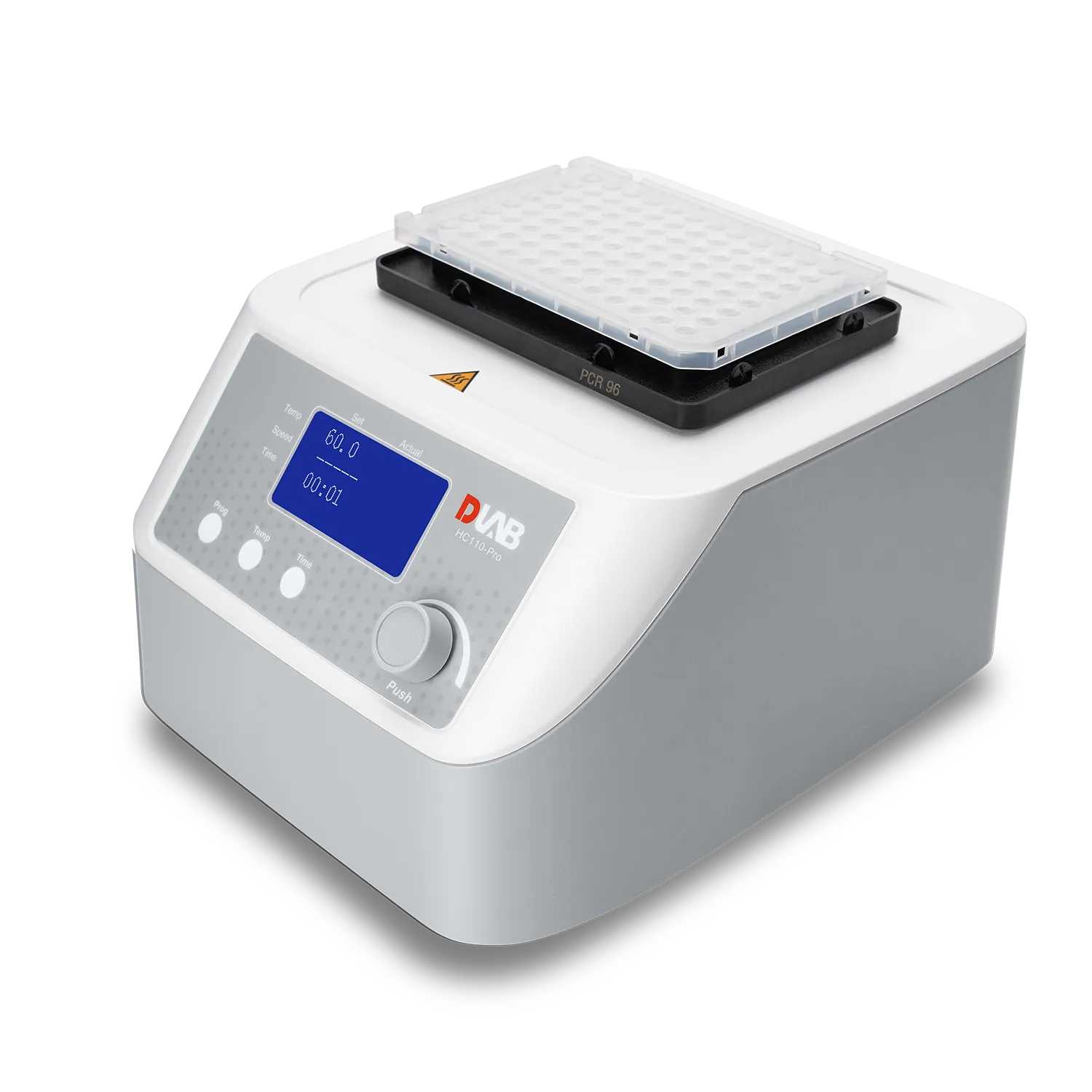

HC110-Pro LCD digital Thermo Mix, with Touch operation (Magnetic) 5062102300

HC110-Pro LCD digital Thermo Mix with heating, cooling,with 1pcs heating block for free (select a size )

SKU: 5062102300

Manufacturer: Dragon Lab

HC110-Pro Thermo Control（Magnetic）

Compact, programmable and overheating protection for safe sample handling
Precise temperature control for heating and cooling -5℃ to 110℃ for all major lab applications
Interchangeable sample blocks available

Specifications	HC110-Pro
Functions	Heating & cooling
Temperature range	Heating: room temp. - 110°C Cooling: room temp. - below room temp. 25°C
Temperature control accuracy[@20–45°C]	± 0.5°C
Temperature uniformity[@20–45°C]	Max.± 0.5°C
Max. heating rate	5.5°C/min
Max. cooling rate	2.5°C /min(100°C-room temp.) 0.5°C/min(below room temp.)
Program	9
Screen	TFT
Overheating protection	150°C
Adapter block material	aluminum
Voltage, Frequency	DC12V,100–240V,50/60Hz
Power	200W
Dimension [D×W×H] ( without the heating block )	200×235×120mm
Weight	7.3kg

Cat. No.	P/N	Descriptions
18900401		Heating block, used for 0.5mL tubes, 24 holes
18900402		Heating block, used for 1.5mL tubes, 24 holes
18900403		Heating block, used for 2mL tubes, 24 holes
18900404		Heating block, used for 5mL tubes, 8 holes
18900405		Heating block, used for 5mL tubes, 8 holes, cone bottom
18900406		Heating block, used for 15mL tubes, 8 holes
18900407		Heating block, used for 50mL tubes, 4 holes
18900420		Heating block, used for 0.2ml/96 well PCR plate
18900423		Heating block, used for 96/384 microplate

New blocks for eppendorf tube
18900353	Heating block, used for 5mL tubes, 8 holes
18900354	Heating block, used for 5mL tubes, 8 holes, cone bottom, only for new machine
18900355	Heating block, used for 15mL tubes, 8 holes
18900356	Heating block, used for 50mL tubes, 4 holes
